Kanex HDMX88A-18G 8x8 HDMI Matrix Switcher with Audio
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.

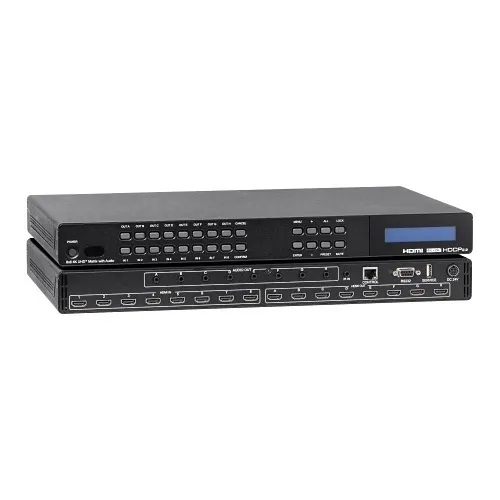

Image of 2
Key Features
- Route any of 8 HDMI sources to 8 displays with full 4K@60Hz support for crisp surveillance, monitoring and presentation workflows
- Sub-0.2s switching and HDCP 2.2/HDMI 2.0 compliance ensure smooth, secure live video switching for security and command center applications
- Multiple control options (RS-232, IR, web GUI/Ethernet) enable easy integration into AV control systems and remote management
- Per-output 2‑channel analog audio extraction allows independent audio routing for recording, PA or monitoring systems
- Rugged metal rack-mount design with clear front-panel LCD gives dependable 24/7 performance in professional AV, security and networked deployments
Quick Specifications
- Product Model
- HDMX88A-18G
- Brand Name
- Kanex
- Manufacturer Part Number
- HDMX88A-18G
Frequently Bought Together
Kanex HDMX88A-18G 8x8 HDMI Matrix Switcher with Audio
$2,486.69
3 items selected
Total: $2,522.44
Explore the details
Product information
HDMX88A-18G
Overview
For integrators and security teams who need fast, reliable multi-display routing, the Kanex HDMX88A-18G HDMI matrix switcher delivers flexible, professional-grade AV distribution for surveillance, monitoring and corporate environments. This 8x8 HDMI matrix supports HDMI 2.0 and HDCP 2.2, handling ultra‑HD 4K@60Hz sources while preserving HDR and Dolby Vision metadata for accurate image reproduction on each endpoint. With switching times under 0.2 seconds and support for standard 1080p/WUXGA, the unit keeps live camera feeds and presentation content responsive and glitch-free.
Control and automation are simplified through RS-232, IR and an intuitive web-based GUI over Ethernet, allowing integration with control systems and touch panels for remote management of displays across multiple rooms or a command center. Each HDMI output includes 2‑channel analog audio outputs for independent monitoring or connection to recording equipment. Built in a durable metal chassis with a front-panel LCD status display, the HDMX88A-18G is engineered for 24/7 security, digital signage and AV installations. Contact your reseller or add to cart to specify the Kanex HDMX88A-18G for your next surveillance, monitoring or enterprise AV project.
Features
- Route any of 8 HDMI sources to 8 displays with full 4K@60Hz support for crisp surveillance, monitoring and presentation workflows
- Sub-0.2s switching and HDCP 2.2/HDMI 2.0 compliance ensure smooth, secure live video switching for security and command center applications
- Multiple control options (RS-232, IR, web GUI/Ethernet) enable easy integration into AV control systems and remote management
- Per-output 2‑channel analog audio extraction allows independent audio routing for recording, PA or monitoring systems
- Rugged metal rack-mount design with clear front-panel LCD gives dependable 24/7 performance in professional AV, security and networked deployments
| General Information | |
|---|---|
| Brand Name | Kanex |
| Manufacturer Part Number | HDMX88A-18G |
| Technical Information | |
| Power Consumption | 110.0000W |
| Physical Characteristics | |
| Depth | 10.59" |
| Width | 17.20" |
| Height | 1.70" |
| Material | Metal |
| Power Description | |
| Frequency | 50.00kHz |
| Input Voltage | 24V DC |
| Miscellaneous | |
| Features | 2 Channel analog audio outputs on each HDMI output channel, Cross-switch 8HDMI inputs to 8 HDMI outputs with 4K at60Hz, Distribute 4Kx2Kat60Hz signal up to 5m via HDMI port, HDR, DolbyVision and HDCP 2.2 Compliant, Smart EDID DIP switch for proper display output, Supports Dolby Digital, DTS, DTS-HD, Supports latest High Speed HDMI 2.0 specifications, Supports standard 1080p and WUXGA resolutions up to 2560x1080at60Hz |
No matching specifications
Try a different term, such as a connector type or resolution.
Plan your purchase
Is this right for your project?
Confirm the model, required accessories and delivery needs before ordering.
- SKU:
- HDMX88A-18G
- Manufacturer part:
- HDMX88A-18G
How do I confirm compatibility?
Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.
Ask a product specialistWhen will this item ship?
Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.
Shipping, freight and delivery detailsWhat should I know about returns?
Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.
Read return eligibility and exclusionsKanex HDMX88A-18G 8x8 HDMI Matrix Switcher with Audio
HDMX88A-18G
