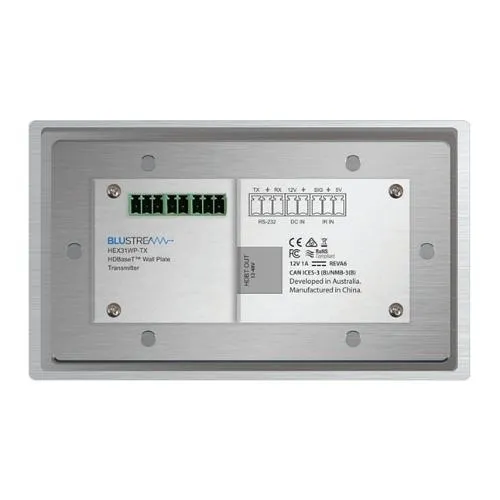

Blustream HEX31WP-TX-US 2-HDMI and 1-USB-C Wall Plate Transmitter
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 2
Key Features
- Simplifies cabling and installation by sending HDMI and USB-C video + audio over a single CAT cable using HDBaseT, reducing rack clutter and installation time
- Mix-and-match inputs (2× HDMI + 1× USB-C) let presenters and laptops connect instantly for meetings, training or surveillance monitoring
- Long-range distribution: extends 1080p up to 70m and 4K60 (4:2:0) up to 40m for flexible room and campus deployments
- Integrated control (CEC, RS-232, IR) and programmable on/off button enable centralized AV control and automation for conference, control room and security systems
- Power over Cable (12–48V PoC) from compatible Blustream receivers removes the need for local power at the wall plate, simplifying retrofits
- Compatible with Blustream HDBaseT receivers and matrix solutions for scalable video conferencing, security and monitoring installations
Quick Specifications
- Product Model
- HEX31WP-TX-US
- Brand Name
- Blustream
- Manufacturer Part Number
- HEX31WP-TX-US
Product Information Tabs
Overview
Streamline AV distribution for conference rooms, control centers and surveillance hubs with the Blustream HEX31WP-TX-US wall plate transmitter. Built for integrators and IT teams, this compact transmitter accepts 2 HDMI and 1 USB-C source and sends pristine video and multi-channel audio over a single CAT cable using advanced HDBaseT technology. Deliver reliable 1080p up to 70m and 4K60 (4:2:0) up to 40m, while preserving Dolby and DTS immersive audio formats for clear audio monitoring in security and surveillance environments.
The HEX31WP-TX-US offers flexible source selection (manual or auto), programmable on/off display control and bi-directional RS-232/IR passthrough, enabling seamless integration into enterprise control systems and networked AV deployments. PoC compatibility (12–48V) eliminates the need for local power at the wall plate, making retrofits faster and reducing points of failure. Designed to work with Blustream receivers and matrix solutions, it’s ideal for video conferencing, monitoring, security and distributed AV projects. Contact us to specify the HEX31WP-TX-US for your next installation or order now to simplify your AV networking.
Features
- Simplifies cabling and installation by sending HDMI and USB-C video + audio over a single CAT cable using HDBaseT, reducing rack clutter and installation time
- Mix-and-match inputs (2× HDMI + 1× USB-C) let presenters and laptops connect instantly for meetings, training or surveillance monitoring
- Long-range distribution: extends 1080p up to 70m and 4K60 (4:2:0) up to 40m for flexible room and campus deployments
- Integrated control (CEC, RS-232, IR) and programmable on/off button enable centralized AV control and automation for conference, control room and security systems
- Power over Cable (12–48V PoC) from compatible Blustream receivers removes the need for local power at the wall plate, simplifying retrofits
- Compatible with Blustream HDBaseT receivers and matrix solutions for scalable video conferencing, security and monitoring installations
| General Information | |
|---|---|
| Brand Name | Blustream |
| Manufacturer Part Number | HEX31WP-TX-US |
