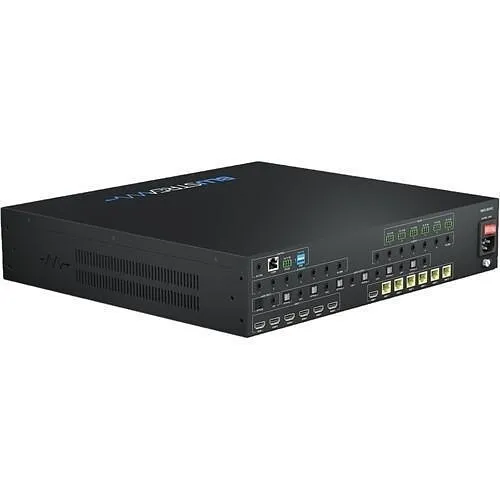

Blustream HMXL66ARC 6x6 HDBaseT CSC ARC Matrix, 70m
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 2
Key Features
- Centralized 6x6 AV distribution for simplified multi-room and control-room deployments, reducing rack complexity and cabling
- Long-distance HDBaseT delivery (up to 70m for 1080p, 40m for 4K) to extend video and audio to remote displays and surveillance monitors
- Integrated 20x6 audio matrix lets you embed, extract and route audio independently for flexible sound zones and monitoring applications
- 18Gbps HDMI 2.0 CSC with HDR support ensures reliable 4K60 video and colour integrity across mixed-source environments
- Multiple control options (web UI, app, RS-232, TCP/IP, IR) and 24V PoC simplify installation and remote management in security and AV systems
- Broad HDMI audio format support (Dolby Atmos, TrueHD, DTS-HD) and HDCP 2.2 compliance for full compatibility with modern media and surveillance encoders
Quick Specifications
- Product Model
- HMXL66ARC
- Brand Name
- Blustream
- Manufacturer Part Number
- HMXL66ARC
Frequently Bought Together
Blustream HMXL66ARC 6x6 HDBaseT CSC ARC Matrix, 70m
$3,253.78
2 items selected
Total: $3,341.37
Product Information Tabs
Overview
Deploy consistent, professional-grade AV distribution with the Blustream HMXL66ARC Pro HDMI Switcher — engineered for control rooms, security monitoring and commercial AV installations. This 6x6 HDMI 2.0 4K60 matrix leverages advanced HDBaseT to deliver high-bandwidth 18Gbps video and colour-space conversion up to 70m (1080p) and up to 40m for 4K, so remote displays and surveillance monitors receive clean, reliable imagery.
Beyond video, the HMXL66ARC integrates a powerful 20x6 audio matrix that embeds and routes audio from both sources and displays, supporting Dolby Atmos, Dolby TrueHD and DTS-HD for flexible zone-based audio and monitoring. Installation is faster and neater with bi-directional IR, RS-232 and 24V PoC to power compatible Blustream receivers, while the web interface and mobile apps provide straightforward configuration and control across networked AV and security systems.
Ideal for security/ surveillance control rooms, digital signage networks and corporate AV, the Blustream HMXL66ARC combines long-distance HDBaseT reach, robust audio routing and enterprise control options. Contact us to specify or add it to your system design for reliable monitoring and distribution.
Features
- Centralized 6x6 AV distribution for simplified multi-room and control-room deployments, reducing rack complexity and cabling
- Long-distance HDBaseT delivery (up to 70m for 1080p, 40m for 4K) to extend video and audio to remote displays and surveillance monitors
- Integrated 20x6 audio matrix lets you embed, extract and route audio independently for flexible sound zones and monitoring applications
- 18Gbps HDMI 2.0 CSC with HDR support ensures reliable 4K60 video and colour integrity across mixed-source environments
- Multiple control options (web UI, app, RS-232, TCP/IP, IR) and 24V PoC simplify installation and remote management in security and AV systems
- Broad HDMI audio format support (Dolby Atmos, TrueHD, DTS-HD) and HDCP 2.2 compliance for full compatibility with modern media and surveillance encoders
| General Information | |
|---|---|
| Brand Name | Blustream |
| Manufacturer Part Number | HMXL66ARC |
| Interfaces/Ports | |
| Number of HDMI Inputs | 6 |
| Number of HDMI Outputs | 1 |
| Physical Characteristics | |
| Depth | 15.75" |
| Width | 17.16" |
| Height | 3.46" |
| Product Information | |
| Mount Type | Rack Mount |
| Miscellaneous | |
| Package Contents | 1 x HMXL66ARC, 1 x IR Control Cable - 3.5-3.5mm Cable, 1 x Quick Reference Guide, 1 x Rack mounting kit, 1 x Remote control, 1x Serial Cable - DB9 to 3-pin Phoenix Connector, 6 x IR Emitters, 7 x IR Receivers, IEC Power Cable(s) |
