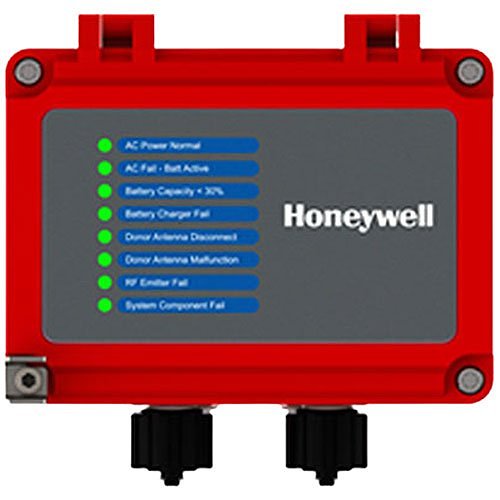

Honeywell BDA HONBDA-D-7S27B Fiplex Dual Band Digital Signal Booster

Ensure first-responder radios work inside your most critical facilities with the Honeywell BDA HONBDA-D-7S27B Fiplex Dual Band Digital Signal Booster. Designed for ERCES and in-building public safety applications, this Honeywell BDA unit strengthens weak 700/800 MHz signals—supporting frequencies such as 758–775 MHz and 806–824 MHz—and is fully UL2524 2nd Edition listed for compliance. Field-upgradeable power and licensing let you move from Class B to Class A and increase output (options include 0.5W/+27 dBm, 2W/+33 dBm and 5W/+37 dBm) as facility needs grow. The FPGA-based digital architecture provides channel-selective operation, per-channel gain control, automatic gain control and built-in spectrum analysis so security, surveillance and monitoring teams can maintain reliable communications with minimal downtime. Weatherproof IP67/NEMA4X construction, NFPA-compatible alarm contacts and a 3-year warranty deliver durable, long-term performance for hospitals, transit hubs, stadiums and industrial sites. Contact your Honeywell BDA reseller to specify the HONBDA-D-7S27B for your next security or emergency responder communication enhancement project.

• Delivers reliable in‑building public safety radio coverage to protect occupants and ensure continuous emergency responder communications
• Flexible channel- or band-selective operation (Class A/B) and field-upgradeable power options to scale for hospitals, stadiums, tunnels and campuses
• Advanced digital diagnostics with oscillation detection, antenna isolation measurement and automatic gain control for low-maintenance, code-compliant performance
• UL2524 2nd Edition listing, NFPA dry-contact alarms and IP67 weatherproof enclosure to meet Authority Having Jurisdiction (AHJ) and harsh-environment requirements
• FirstNet-capable dual-band support (700/800 MHz) with up to 5W output options and up to 85 dB gain for robust, interference-resistant coverage
