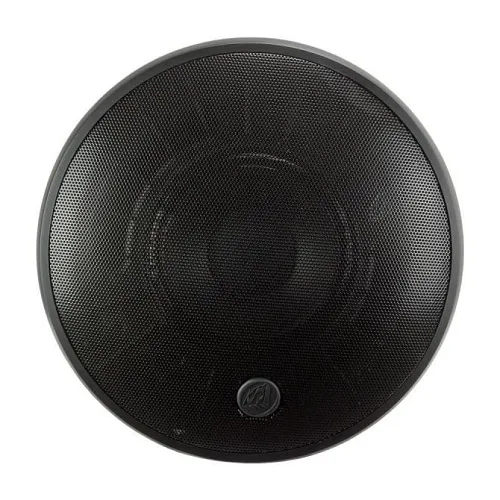

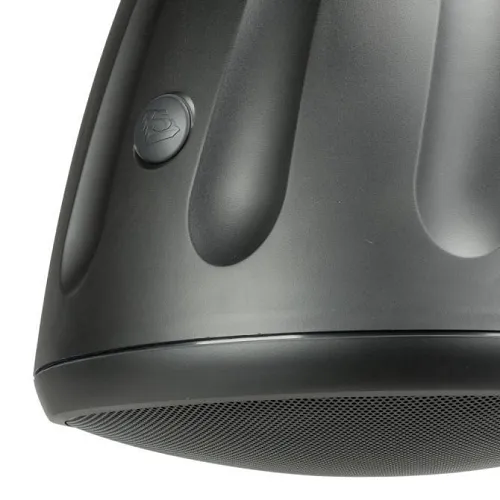

SoundTube HP1290I-BK 12" Coaxial Pendant Speaker, Black
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 3
Key Features
- BroadBeam waveguide delivers consistent, wide-area coverage to reduce speaker count and lower installation costs
- 12-inch treated cone plus 1.375-inch compression driver produces clear voice and music with 59 Hz - 22 kHz response
- Low-loss 150W transformer with 25 / 70.7 / 100V and bypass taps for simple integration into PA and distributed audio systems
- Weatherized, UL-listed pendant enclosure with included hanging hardware and impact-resistant grille for secure indoor/outdoor deployments
- High efficiency and high SPL minimize amplifier requirements for reliable paging, monitoring and background music in commercial spaces
Quick Specifications
- Product Model
- HP1290I-BK
- Brand Name
- SoundTube
- Manufacturer Part Number
- HP1290I-BK
Product Information Tabs
Overview
Engineered for commercial paging, monitoring and security applications, the SoundTube HP1290I-BK 12-inch coaxial pendant speaker delivers uniform coverage and punchy low-end where consistent intelligibility matters. SoundTube's patented BroadBeam waveguide ensures predictable dispersion across the 2–10 kHz band so fewer speakers cover more area — ideal for retail, transit hubs, stadium concourses and surveillance zones.
The HP1290I-BK pairs a 12-inch treated-fiber cone with a 1.375-inch mylar compression driver to reproduce a wide 59 Hz - 22 kHz frequency range with high SPL and efficiency. A low-insertion-loss 150-watt transformer and easy-access tap switch (25 / 70.7 / 100V + bypass) simplify integration into distributed PA and 8-ohm systems while reducing amplifier costs. Weatherized components, UL 1480/2239 listings, and included hanging hardware, Euroblock connector and safety cable ensure fast, code-compliant installation for both indoor and outdoor security/surveillance installations.
Specify the HP1290I-BK for dependable paging, background music and monitoring coverage. Contact us to configure system layouts or add to your cart to start improving site-wide audio performance.
Features
- BroadBeam waveguide delivers consistent, wide-area coverage to reduce speaker count and lower installation costs
- 12-inch treated cone plus 1.375-inch compression driver produces clear voice and music with 59 Hz - 22 kHz response
- Low-loss 150W transformer with 25 / 70.7 / 100V and bypass taps for simple integration into PA and distributed audio systems
- Weatherized, UL-listed pendant enclosure with included hanging hardware and impact-resistant grille for secure indoor/outdoor deployments
- High efficiency and high SPL minimize amplifier requirements for reliable paging, monitoring and background music in commercial spaces
| General Information | |
|---|---|
| Brand Name | SoundTube |
| Manufacturer Part Number | HP1290I-BK |
| Audio | |
| Maximum Frequency Response | 22.0kHz |
| Minimum Frequency Response | 59.0000Hz |
| Physical Characteristics | |
| Color | Black |
| Height | 20.80" |
| Miscellaneous | |
| Features | High quality black or white paint finish. Custom colors available, High SPL, high-efficiency system for the sound reinforcement and PA markets, Included accessories impact-resistant steel grille, hanging hardware, Euroblock connector, terminal weather boot, Patented BroadBeamHP waveguide technology delivers a consistent dispersion pattern (2-10 kHz, independently verified) for maximum coverage area per speaker, Weatherized components for both indoor/outdoor applications |
| Package Contents | Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |
| Environmentally Friendly | Yes |
| Environmental Certification | CE, RoHS, UL |
