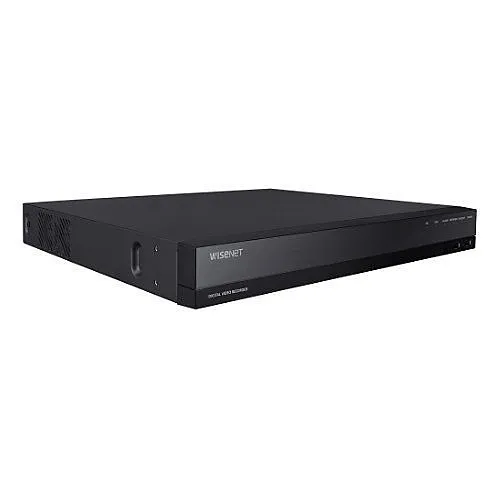

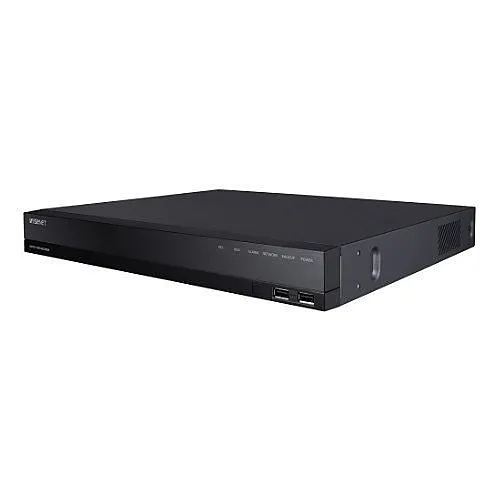

Hanwha HRX-1634-8TB 16-Channel Pentabrid DVR, 128 Mbps, 8TB
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 3
Key Features
- Flexible hybrid recording: supports up to 16 analog channels plus IP inputs so you can mix existing cameras with new IP devices for phased upgrades
- High-capacity storage and throughput: 8TB HDD and 128 Mbps recording bandwidth ensure continuous retention and smooth multi-camera recording
- Efficient video compression: H.265/H.264 support lowers storage and network cost while preserving image quality for 4K and 8MP streams
- Compliance and reliability: NDAA & FCC compliant hardware for secure deployments and peace of mind in commercial and government installations
- Remote monitoring & easy integration: HDMI/composite outputs, Ethernet and remote management simplify setup, live monitoring and multi-site administration
Quick Specifications
- Product Model
- HRX-1634
- Bandwidth
- 100 Mbps
- Brand Name
- Hanwha Vision
- Product Name
- 16CH Pentabrid DVR
Product Information Tabs
Overview
Deliver reliable, enterprise-grade surveillance across retail, office, and campus environments with the Hanwha Vision HRX-1634 16-Channel Pentabrid DVR. This hybrid video recorder is built to support mixed analog and IP camera fleets, giving integrators and IT managers the flexibility to upgrade incrementally while maintaining centralized monitoring. With 16 channels, up to 4K/8MP resolution support and an 8TB internal drive, the HRX-1634 handles continuous recording and long retention periods with ease. Its 128 Mbps throughput and H.265/H.264 codecs reduce bandwidth and storage costs without sacrificing video clarity, making it ideal for high-density installations. NDAA and FCC compliance ensure secure deployments in regulated environments, and built-in remote management simplifies firmware updates, live viewing and playback across multiple sites. Compact, energy-efficient (40W) hardware fits rack or shelf installations and integrates via HDMI, composite and Ethernet ports. Choose the Hanwha Vision 16-Channel Pentabrid DVR for scalable, cost-effective security and proactive monitoring — contact sales to specify this unit for your next surveillance project.
Features
- Flexible hybrid recording: supports up to 16 analog channels plus IP inputs so you can mix existing cameras with new IP devices for phased upgrades
- High-capacity storage and throughput: 8TB HDD and 128 Mbps recording bandwidth ensure continuous retention and smooth multi-camera recording
- Efficient video compression: H.265/H.264 support lowers storage and network cost while preserving image quality for 4K and 8MP streams
- Compliance and reliability: NDAA & FCC compliant hardware for secure deployments and peace of mind in commercial and government installations
- Remote monitoring & easy integration: HDMI/composite outputs, Ethernet and remote management simplify setup, live monitoring and multi-site administration
| General Information | |
|---|---|
| Bandwidth | 100 Mbps |
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Product Name | 16CH Pentabrid DVR |
| Product Type | Video Surveillance Station |
| Product Model | HRX-1634 |
| Manufacturer Part Number | HRX-1634-8TB |
| Technical Information | |
| Video Formats | H.264, H.265, MJPEG |
| Storage Capacity | 8TB |
| Power Consumption | 40W |
| Maximum Frame Rate | 30fps |
| Number of Channels | 16 |
| Video Signal Format | NTSC, PAL |
| Connectivity Technology | Wired |
| Interfaces/Ports | |
| HDMI | Yes |
| Composite Video In | Yes |
| Composite Video Out | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Physical Characteristics | |
| Depth | 12.6" |
| Width | 14.6" |
| Height | 1.7" |
| Weight | 9.92lb |
| Storage | |
| Recording Formats | 4K |
| Hard Drive Capacity | 8TB |
| Video | |
| Maximum Resolution | 3264 x 2448 |
| Warranty | |
| Limited Warranty | 3-Year |
