Warehouse: United States

Hanwha HRX-434 HD+ Series 8MP 4-Channel Pentabrid DVR, 32Mbps, 2TB HDD, Black

SKU: HRX-434-2TB Hanwha Vision
Hanwha HRX-434 WiseNet HD+ HRX-434 8-Channel 8MP Pentabrid DVR, 2TB HDD

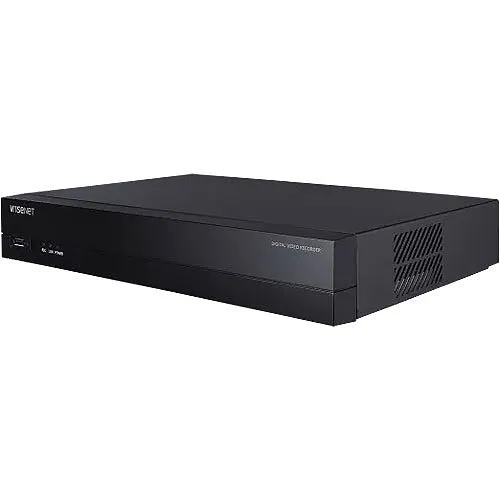

Product images for Hanwha HRX-434 HD+ Series 8MP 4-Channel Pentabrid DVR, 32Mbps, 2TB HDD, Black. 1 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Seamless integration with existing cameras: Pentabrid support (AHD, HDTVI, HDCVI, CVBS and IP) lets you upgrade without rewiring.
  • Capture actionable detail: 8MP recording at up to 30fps ensures clear image quality for identification and incident review.
  • Reliable on-site storage: Built-in 2TB HDD and 32 Mbps throughput provide continuous recording for busy locations.
  • Remote monitoring made simple: P2P QR-code setup and Ethernet connectivity enable secure, fast access from any device.
  • Efficient bandwidth and storage: H.265 compression reduces network load and maximizes retention time for surveillance archives.

Quick Specifications

Brand Name
Hanwha Vision
Manufacturer
Hanwha Vision
Product Name
4 Channel AHD, TVI, CVI, CVBS, IP Recorder
Product Type
IP Recorder
View Full Technical Specifications

Product Information Tabs

Overview

Deliver consistent, high-detail security monitoring for small-to-medium sites with the Hanwha Vision HRX-434 HD+ Series 8MP 4-Channel Pentabrid DVR. Purpose-built as a hybrid video recorder, the HRX-434 captures crisp 8MP footage and supports multiple analog and IP formats so you can consolidate legacy cameras and new IP devices on a single platform. With a 2TB internal HDD and up to 32 Mbps recording throughput, this DVR balances long-term retention and smooth multi-channel performance while H.265 compression lowers bandwidth and storage costs. The unit records at up to 30 fps per channel for reliable event capture and supports NTSC/PAL environments, making it suitable for retail locations, offices, warehouses, and multi-site facilities. Remote access is quick to configure via P2P QR code and Ethernet, enabling real-time monitoring and playback from mobile devices or a central workstation. NDAA compliance and industry-grade reliability make the HRX-434 a practical choice for commercial security deployments. Boost your surveillance strategy — deploy the HRX-434 to strengthen perimeter and interior monitoring today.

Features

  • Seamless integration with existing cameras: Pentabrid support (AHD, HDTVI, HDCVI, CVBS and IP) lets you upgrade without rewiring.
  • Capture actionable detail: 8MP recording at up to 30fps ensures clear image quality for identification and incident review.
  • Reliable on-site storage: Built-in 2TB HDD and 32 Mbps throughput provide continuous recording for busy locations.
  • Remote monitoring made simple: P2P QR-code setup and Ethernet connectivity enable secure, fast access from any device.
  • Efficient bandwidth and storage: H.265 compression reduces network load and maximizes retention time for surveillance archives.
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 4 Channel AHD, TVI, CVI, CVBS, IP Recorder
Product Type IP Recorder
Product Model HRX-434-2TB
Product Series HD+
Manufacturer Part Number HRX-434-2TB
Technical Information
Video Formats H.264, H.265, MJPEG
Storage Capacity 2TB
Maximum Frame Rate 30fps
Number of Channels 4
Video Signal Format NTSC, PAL
Certifications
NDAA Compliant Yes
Interfaces/Ports
VGA Yes
HDMI Yes
Number of USB Ports 2
Network & Communication
Ethernet Yes
Physical Characteristics
Color Black
Depth 8.22"
Width 11.8"
Height 1.89"
Weight 3.30 lb
Power Description
Input Voltage 12V DC
Maximum Power Consumption 22W
Storage
Hard Drive Capacity 2TB
Miscellaneous
Environmental Certification KC
