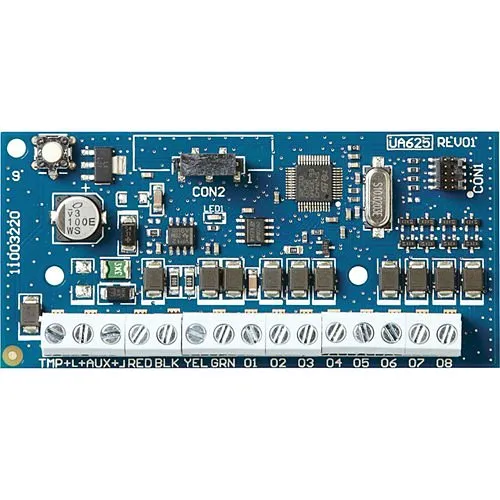

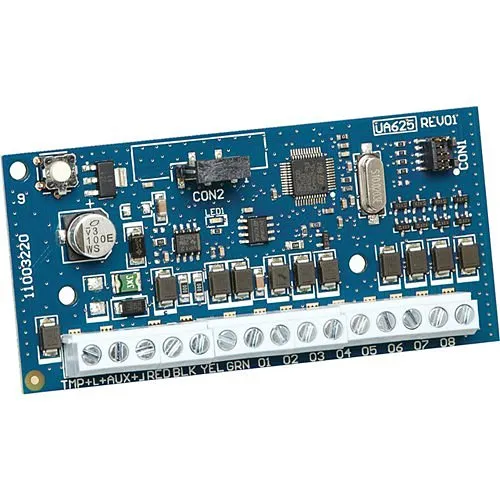

DSC HSM2208 PowerSeries Pro Neo Low Current Output Security Module
Image of 4
Key Features
- Expandable control: adds 8 programmable low-current outputs to your PowerSeries Neo control panel for versatile device control
- Scalable integration: support up to 16 modules per system for large commercial or multi-site installations
- Reliable operation: 12V DC input with wide operating temperature range ensures consistent performance in varied environments
- Simplifies automation: trigger relays, auxiliary alarms, door strikes or lighting from a single security platform
- Professional compatibility: designed for seamless integration with DSC PowerSeries Neo for streamlined monitoring and maintenance
Quick Specifications
- Product Model
- HSM2208
- Brand Name
- DSC
- Product Line
- PowerSeries Neo
- Product Name
- Security Output Module
Frequently Bought Together
DSC HSM2208 PowerSeries Pro Neo Low Current Output Security Module
$54.86
15 items selected
Total: $1,403.13
Explore the details
Product information
HSM2208
Overview
Streamline device control and expand event-driven automation with the DSC HSM2208 PowerSeries Pro Neo low current output security module. Designed for integrators and facility managers, this compact control panel module delivers eight programmable low-voltage outputs so you can trigger locks, auxiliary alarms, lighting or relay inputs directly from your security system. The HSM2208 supports up to 16 modules on a single PowerSeries Neo system, letting you scale I/O capacity across commercial, retail, or multi-site surveillance installations without extra controllers. Operating on 12V DC and rated for -10°C to 55°C (14°F to 131°F), it provides dependable monitoring and control in varied environments. As a DSC-branded solution built for professional security deployments, the HSM2208 reduces installation complexity, centralizes event response, and enhances overall situational awareness. Ideal for access control, alarm integration and automation tied to your surveillance and monitoring strategy—add the HSM2208 to your PowerSeries Neo setup to improve control and response. Contact your distributor or order today to upgrade your security platform.
Features
- Expandable control: adds 8 programmable low-current outputs to your PowerSeries Neo control panel for versatile device control
- Scalable integration: support up to 16 modules per system for large commercial or multi-site installations
- Reliable operation: 12V DC input with wide operating temperature range ensures consistent performance in varied environments
- Simplifies automation: trigger relays, auxiliary alarms, door strikes or lighting from a single security platform
- Professional compatibility: designed for seamless integration with DSC PowerSeries Neo for streamlined monitoring and maintenance
| General Information | |
|---|---|
| Brand Name | DSC |
| Manufacturer | Johnson Controls |
| Product Line | PowerSeries Neo |
| Product Name | Security Output Module |
| Product Type | Control Output Module |
| Country of Origin | MX |
| Manufacturer Part Number | HSM2208 |
| Technical Information | |
| Device Supported | Control Panel |
| Environmental Conditions | |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | 14°F |
| Physical Characteristics | |
| Width | 3.60" |
| Height | 1.80" |
| Power Description | |
| Input Voltage | 12V DC |
| Miscellaneous | |
| Compatibility | DSC PowerSeries Neo Control Panel |
