VIVOTEK IB9380-H C-Series 5MP WDR Pro Bullet IP Camera, 3.6mm, White

SKU: IB9380-H VIVOTEK
Image of T6-IB9380H
Product images for VIVOTEK IB9380-H C-Series 5MP WDR Pro Bullet IP Camera, 3.6mm, White. 5 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

  • Clear 5MP imaging for actionable surveillance: captures detailed video for identification and evidence retention
  • Efficient H.265 + Smart Stream III reduces bandwidth and storage costs while preserving image quality
  • Robust outdoor protection with IP66 weatherproofing and IK10 vandal resistance for reliable perimeter monitoring

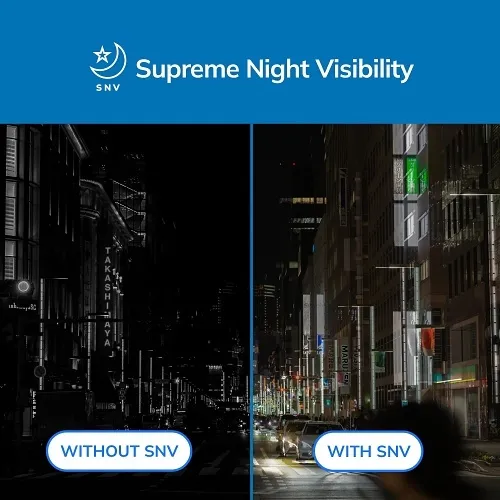

  • 3.6mm fixed lens with IR illumination (≈30 m) and WDR Pro ensures usable footage day or night in challenging light
  • Easy network integration with PoE-ready wiring and remote management for centralized security operations

Quick Specifications

Product Model
IB9380-H
Brand Name
VIVOTEK
Product Name
Bullet Network Camera
Product Type
Network Camera
View Full Technical Specifications

Explore the details

Product information

IB9380-H

Overview

Designed for dependable outdoor security monitoring, the VIVOTEK IB9380-H C-Series 5MP bullet IP camera delivers crisp, high-resolution video to help you detect, verify and respond faster. As a VIVOTEK bullet camera, it combines a 5-megapixel sensor (2560 x 1920 at 20 fps) with H.265 compression and Smart Stream III to cut bandwidth and storage needs by up to 90% without sacrificing image detail. The 3.6mm fixed lens, WDR Pro technology and dual IR illuminators (≈30 m) produce clear footage in high-contrast and low-light environments, improving identification for security teams. Built to withstand harsh conditions, the IB9380-H features IP66 weatherproofing and IK10 impact resistance for long-term outdoor deployment across parking lots, building perimeters and campus grounds. Simple network integration and remote management make it easy to scale into existing surveillance systems. Add this VIVOTEK bullet camera to your security setup for reliable 24/7 monitoring and improved situational awareness.

Features

  • Clear 5MP imaging for actionable surveillance: captures detailed video for identification and evidence retention
  • Efficient H.265 + Smart Stream III reduces bandwidth and storage costs while preserving image quality
  • Robust outdoor protection with IP66 weatherproofing and IK10 vandal resistance for reliable perimeter monitoring
  • 3.6mm fixed lens with IR illumination (≈30 m) and WDR Pro ensures usable footage day or night in challenging light
  • Easy network integration with PoE-ready wiring and remote management for centralized security operations
45 of 45 specifications
Technical specifications for VIVOTEK IB9380-H C-Series 5MP WDR Pro Bullet IP Camera, 3.6mm, White
General Information
Brand Name VIVOTEK
Manufacturer Vivotek, Inc
Product Name Bullet Network Camera
Product Type Network Camera
Product Model IB9380-H
Product Series C
Manufacturer Part Number IB9380-H
Technical Information
Lens Type Fixed
Night Vision Yes
Video Formats H.264, H.265, MJPEG
Number of IR LEDs 2
Maximum Frame Rate 20fps
Minimum Focal Length 3.6mm
Connectivity Technology Wired
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98.43 ft
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Maximum Operating Temperature 140°F (60°C)
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.6mm
Lens Included Yes
Maximum Focal Length 3.6mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces IB9389-EHM, IB9389-EHT
Physical Characteristics
Color White
Width 3.6"
Height 6.9"
Weight 1.17lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Bullet
Power Description
Input Voltage 12V DC
Product Information
Length 7"
Diameter 3.6"
Mount Type Corner Mount, Junction Box Mount, Pole Mount
Storage
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 24-Month
Miscellaneous
Indoor/Outdoor Outdoor
Country of Origin TW
Impact Protection Rating IK10
