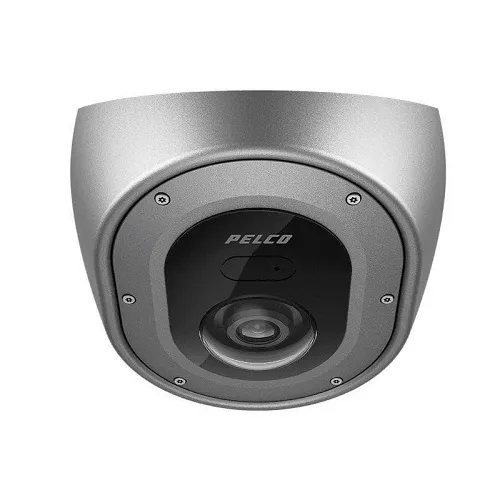

Pelco IBD332-1SS 3 Series SARIX 3MP Corner WDR IR Camera, 2.3mm Lens, Stainless Steel
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Vandal‑resistant stainless steel housing and IK10+ anti‑impact design protect cameras in high‑risk sites, reducing downtime and repair costs.
- Wide 3MP imaging with a 2.3mm fixed lens and WDR delivers clear, actionable video across wall-to-wall and floor-to-ceiling fields of view for reliable surveillance.
- IR night vision (up to 49') and low‑light sensitivity maintain critical monitoring 24/7, improving incident detection and forensic review.
- IP66/67 weatherproof rating and easy‑to‑clean stainless construction simplify maintenance for indoor/outdoor security in corrections, healthcare, and education.
- Embedded Smart Analytics and ONVIF compatibility accelerate threat detection, classification and integration with existing NVR/VMS, cutting response times and storage needs.
- Flexible power options (PoE, 12V DC, 24V AC) and H.264/H.265 compression help lower installation complexity and total cost of ownership.
Quick Specifications
- Product Model
- IBD332-1SS
- Brand Name
- Pelco by Motorola Solutions
- Product Line
- Sarix
- Product Series
- Corner 3
Frequently Bought Together
Pelco IBD332-1SS 3 Series SARIX 3MP Corner WDR IR Camera, 2.3mm Lens, Stainless Steel
$968.46
4 items selected
Total: $2,347.23
Product Information Tabs
Overview
Protect high‑risk environments with reliable, tamper‑resistant surveillance. The Pelco by Motorola Solutions Sarix IBD332-1SS Corner Turret Camera is built for facilities that demand rugged security — jails, hospitals, schools and other monitored spaces where vandalism or tampering is a concern. This stainless‑steel, anti‑ligature turret camera pairs IK10+ impact resistance with IP66/67 weatherproofing for continuous indoor/outdoor monitoring and easy sanitation.
Delivering 3MP resolution through a 2.3mm wide‑angle lens and Wide Dynamic Range (WDR), the Sarix 3 Series captures clear, usable images in mixed lighting and low‑light situations; infrared night vision extends detection up to about 49 feet. Embedded Smart Analytics speeds event classification and reduces false alarms, while PoE power and ONVIF support simplify network integration and lower installation costs. With efficient H.265 compression and a 5‑year warranty, it’s engineered for long‑term, high‑performance security operations. Specify the IBD332-1SS for hardened corner installations that require continuous, actionable surveillance — contact sales to integrate it into your security or monitoring system today.
Features
- Vandal‑resistant stainless steel housing and IK10+ anti‑impact design protect cameras in high‑risk sites, reducing downtime and repair costs.
- Wide 3MP imaging with a 2.3mm fixed lens and WDR delivers clear, actionable video across wall-to-wall and floor-to-ceiling fields of view for reliable surveillance.
- IR night vision (up to 49') and low‑light sensitivity maintain critical monitoring 24/7, improving incident detection and forensic review.
- IP66/67 weatherproof rating and easy‑to‑clean stainless construction simplify maintenance for indoor/outdoor security in corrections, healthcare, and education.
- Embedded Smart Analytics and ONVIF compatibility accelerate threat detection, classification and integration with existing NVR/VMS, cutting response times and storage needs.
- Flexible power options (PoE, 12V DC, 24V AC) and H.264/H.265 compression help lower installation complexity and total cost of ownership.
| General Information | |
|---|---|
| Brand Name | Pelco by Motorola Solutions |
| Product Line | Sarix |
| Product Series | Corner 3 |
| Manufacturer Part Number | IBD332-1SS |
| Technical Information | |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/2.2 |
| Night Vision Type | Infrared (IR) |
| Maximum Frame Rate | 30 fps |
| Effective Camera Resolution | 3MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 49' |
| Certifications | |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 2048 x 1536 |
| Environmental Conditions | |
| Operating Humidity | 0-95% |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Minimum Illumination | 0 lux, 0.014, 0.027 |
| Longest Shutter Speed | 1/7 Second |
| Shortest Shutter Speed | 1/8196 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 2.3mm |
| Lens Included | Yes |
| Maximum Focal Length | 2.3mm |
| Physical Characteristics | |
| Width | 6.4" |
| Height | 4.8" |
| Durability | Vandal Resistant, Water Resistant |
| Power Description | |
| Input Voltage | 12V DC, 24V AC, PoE |
| Product Information | |
| Length | 6.4" |
| Mount Type | Corner Mount |
| Storage | |
| Storage Type | Memory Card |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor, Outdoor |
| Environmentally Friendly | Yes |
| Impact Protection Rating | IK10 |
| Environmental Certification | BIS, CE, cUL, EN 55032 Class B, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-3, FCC Part 15 Subpart B Class B, IC ICES-003 Class B, RCM, Reach (SVHC), RoHS, UKCA, UL |
