ICC ICCABP5EGN CAT5e CMP Plenum 24AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 350 MHz, UL Certified, ETL Verified, 1000' Reelex Pull Box, Green
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 9
Key Features
- Reliable high-speed data and video for security and surveillance systems — 350 MHz bandwidth and Gigabit-capable performance.

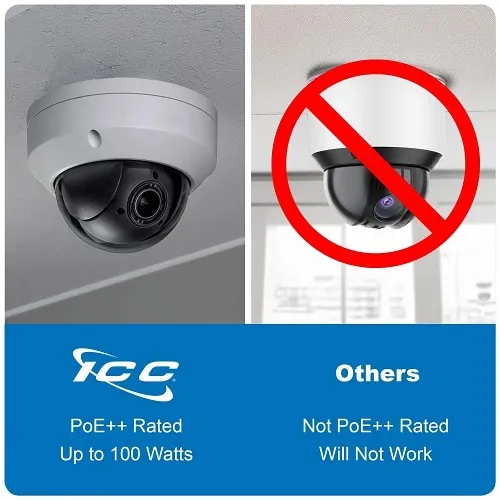

- Supports up to 100W PoE++ to power cameras, access control and network devices without extra power infrastructure.

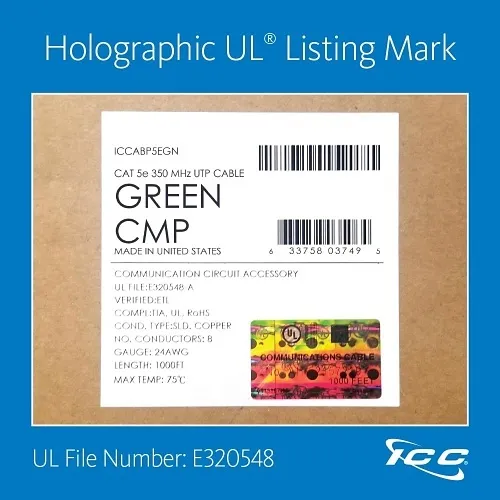

- CMP plenum-rated jacket with UL certification and ETL verification for safe, code-compliant installs in air-handling spaces.

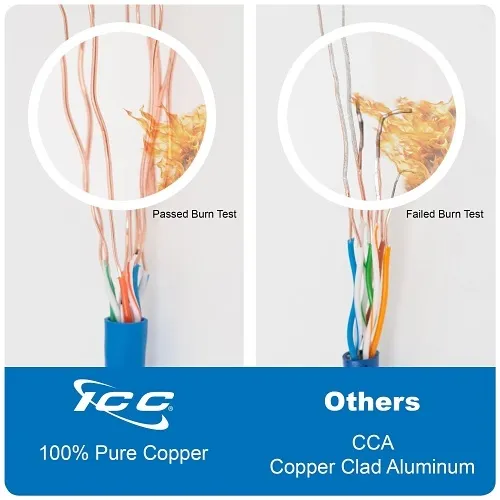

- 100% solid 24AWG pure copper conductors and 1000' REELEX pull box reduce signal loss and speed up long runs and installations.
- UTP unshielded design and sequential footage markings simplify deployment for enterprise, school and commercial monitoring projects.
Quick Specifications
- Product Model
- ICCABP5EGN
- Brand Name
- ICC
- Product Name
- Category 5e 350MHz UTP CMP Solid Cable
- Product Type
- Network Cable
Product Information Tabs
Overview

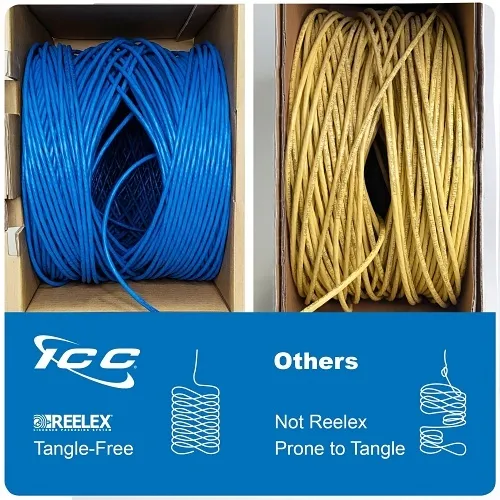

Deliver dependable high-speed networking and reliable power in plenum spaces with ICC Category 5e CMP plenum UTP cable. Built for commercial IT and security deployments, this ICC Category 5e network cable provides the bandwidth and stability needed for surveillance, monitoring and Gigabit networking. With 100% solid pure copper 24AWG conductors and 350 MHz performance, it preserves video clarity and reduces packet loss for cameras, access control and VoIP systems. The cable supports PoE++ up to 100W, enabling remote device power without added electrical work. CMP plenum-rated jacket plus UL certification and ETL verification help you meet fire-safety codes in air-handling areas. Packaged on a 1000' REELEX pull box with sequential footage markings and tangle-free technology, it speeds installs and minimizes waste on long cable runs between switches, IDFs and field devices. Choose ICC CAT5e plenum cable for reliable, code-compliant network and security installations. Order now to specify this cable for your next surveillance, monitoring or enterprise network project.
Features
- Reliable high-speed data and video for security and surveillance systems — 350 MHz bandwidth and Gigabit-capable performance.
- Supports up to 100W PoE++ to power cameras, access control and network devices without extra power infrastructure.
- CMP plenum-rated jacket with UL certification and ETL verification for safe, code-compliant installs in air-handling spaces.
- 100% solid 24AWG pure copper conductors and 1000' REELEX pull box reduce signal loss and speed up long runs and installations.
- UTP unshielded design and sequential footage markings simplify deployment for enterprise, school and commercial monitoring projects.
| General Information | |
|---|---|
| Brand Name | ICC |
| Manufacturer | ICC |
| Product Name | Category 5e 350MHz UTP CMP Solid Cable |
| Product Type | Network Cable |
| Manufacturer Part Number | ICCABP5EGN |
| Technical Information | |
| Material | Bare Copper, Fluoropolymer, LS FR-PVC, Polyester, Polyolefin |
| Shielding | No |
| Cable Type | Category 5e |
| Jacket Type | CMP, Plenum |
| Cable Rating | Plenum |
| Jacket Material | LS FR-PVC |
| Device Supported | Network Device |
| Solid or Stranded | Solid |
| Conductor Material | Bare Copper |
| American Wire Gauge | 24AWG |
| Connector on First End | Bare Wire |
| Connector on Second End | Bare Wire |
| Interfaces/Ports | |
| Connector Type | RJ45 |
| Physical Characteristics | |
| Color | Green |
| Cable Length | 1000' |
| Miscellaneous | |
| Features | Bendable, Consumer Electronics Control (CEC), PoE, PoE+ |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Certifications & Standards | ETL, RoHS, TIA, UL |
| Environmental Certification | RoHS |
