ICC ICCABR5EBL CAT5e CMR Riser 24AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 350 MHz, UL Certified, 1000' Reelex Pull Box, Blue

SKU: ICCABR5EBL ICC

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Image of H2-CABR5EBL
Product images for ICC ICCABR5EBL CAT5e CMR Riser 24AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 350 MHz, UL Certified, 1000' Reelex Pull Box, Blue. 9 image(s) available. Click on image to view full size.

Key Features

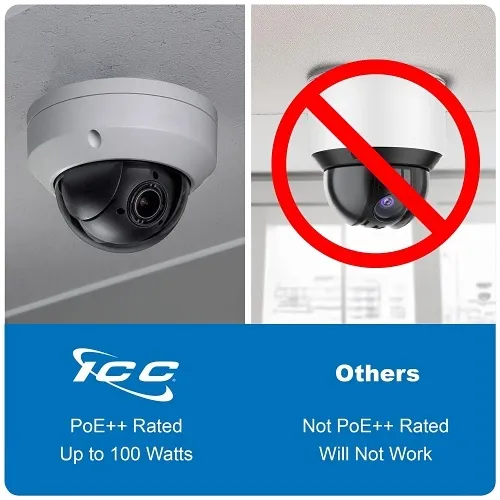

  • Provides dependable network and device power for security and surveillance systems with 100% solid 24AWG copper and PoE++ support up to 100W

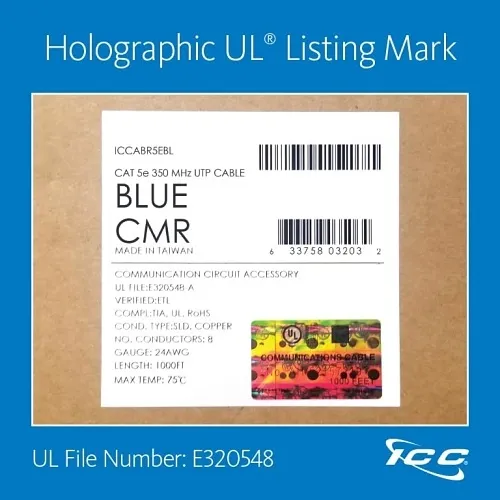

  • Riser-rated (CMR) jacket and UL/ETL certifications streamline safe vertical installs in commercial and educational buildings
  • 350 MHz performance and TIA-568.2-D compliance deliver reliable Gigabit Ethernet for monitoring, streaming and data transfer

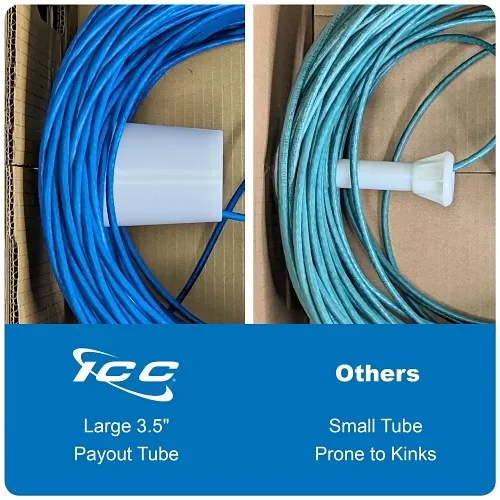

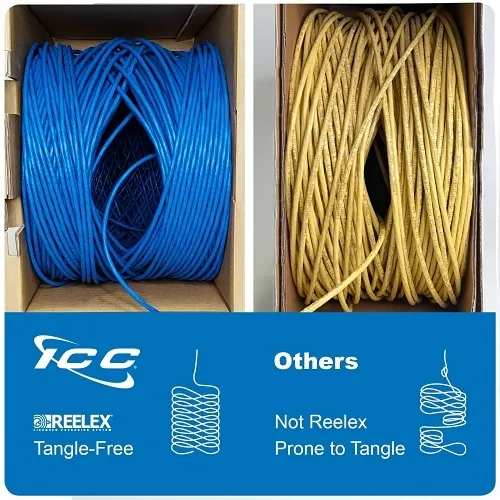

  • 1000' tangle-free REELEX pull box reduces installation time, cable waste and keeps runs organized on site

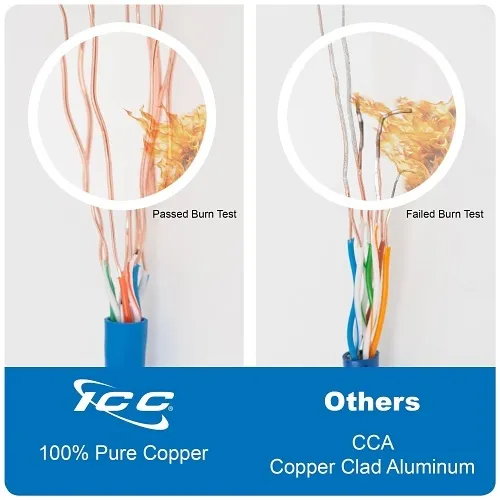

  • Solid conductor construction minimizes signal loss for long-term stability in CCTV, access control and network backbone links

Quick Specifications

Product Model
ICCABR5EBL
Brand Name
ICC
Product Name
Cat.5e UTP Cable
Product Type
Network Cable
View Full Technical Specifications

Product Information Tabs

Overview

Get reliable high-speed connectivity and inline power for mission-critical networks and security systems with the ICC Cat5e UTP riser cable. This ICC Category 5e network cable pairs 100% solid pure 24AWG copper conductors with a CMR-rated PVC jacket to provide low-loss Gigabit Ethernet performance and code-compliant vertical runs. Rated to 350 MHz and meeting TIA-568.2-D, it supports 100BASE-TX and 1000BASE-T traffic while delivering PoE++ capability for up to 100W—ideal for IP cameras, access control, VoIP phones and building monitoring equipment. UL and ETL certifications, plus RoHS, TAA and Section 889 compliance, make it suitable for commercial and government installations. Packaged in a 1000' REELEX pull box, the ICCABR5EBL simplifies pulls, reduces tangles and speeds deployment on long runs. Choose ICC Cat5e riser cable for a cost-effective, installer-friendly backbone that supports networking, security, surveillance and monitoring applications—order now to outfit your next installation.

Features

  • Provides dependable network and device power for security and surveillance systems with 100% solid 24AWG copper and PoE++ support up to 100W
  • Riser-rated (CMR) jacket and UL/ETL certifications streamline safe vertical installs in commercial and educational buildings
  • 350 MHz performance and TIA-568.2-D compliance deliver reliable Gigabit Ethernet for monitoring, streaming and data transfer
  • 1000' tangle-free REELEX pull box reduces installation time, cable waste and keeps runs organized on site
  • Solid conductor construction minimizes signal loss for long-term stability in CCTV, access control and network backbone links
General Information
Brand Name ICC
Manufacturer ICC
Product Name Cat.5e UTP Cable
Product Type Network Cable
Product Model ICCABR5EBL
Manufacturer Part Number ICCABR5EBL
Technical Information
Material PVC
Shielding No
Cable Type Category 5e
Jacket Type Riser
Cable Rating Riser
Conductor Count 4
Jacket Material PVC
Number of Pairs 4
Device Supported Network Device
Solid or Stranded Solid
American Wire Gauge 24AWG
Number of Conductors 8
Connector on First End Bare Wire
Connector on Second End Bare Wire
Interfaces/Ports
Connector Type RJ45
Physical Characteristics
Color Blue
Weight 25.30 lb
Cable Length 1000'
Package Type Pull Box
Insulation Material PE
Warranty
Limited Warranty 3-Year
Miscellaneous
Country of Origin TW
Environmentally Friendly Yes
Certifications & Standards ETL, RoHS, TIA, UL
Environmental Certification RoHS
