ICC ICCABR5EGN CAT5e CMR Riser 24AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 350 MHz, UL Certified, 1000' Reelex Pull Box, Green

SKU: ICCABR5EGN ICC

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Image of H2-CABR5EGN
Product images for ICC ICCABR5EGN CAT5e CMR Riser 24AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 350 MHz, UL Certified, 1000' Reelex Pull Box, Green. 9 image(s) available. Click on image to view full size.

Key Features

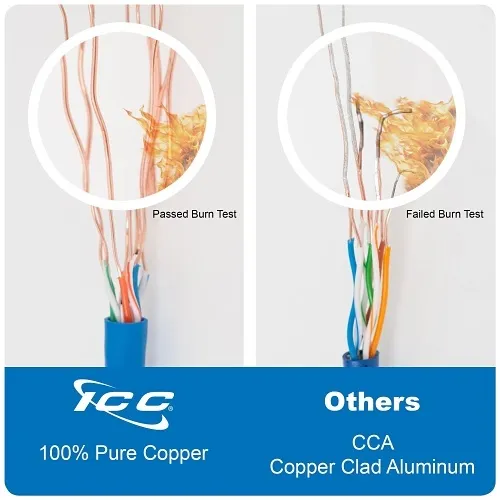

  • Enterprise-grade 100% solid pure copper conductors for consistent Gigabit performance and long-term reliability.
  • Supports PoE++ up to 100W to power IP cameras, wireless APs and access control without separate power infrastructure.
  • 350 MHz bandwidth and TIA 568.2-D compliance for clean Gigabit Ethernet and high-bandwidth surveillance/monitoring streams.

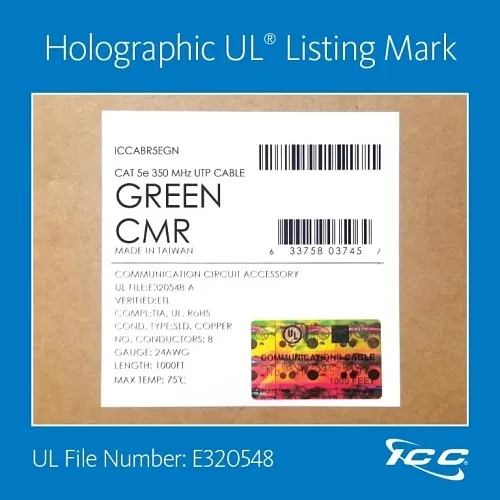

  • CMR riser-rated FR‑PVC jacket with UL/ETL certification for safe vertical runs in commercial buildings and schools.

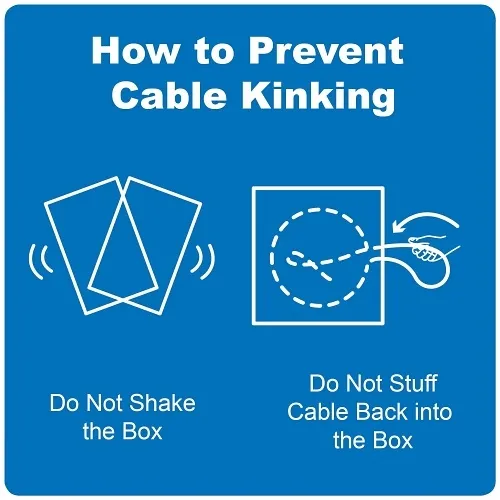

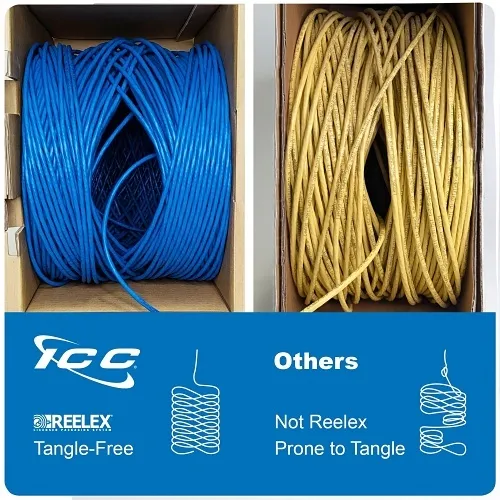

  • 1000' tangle-free REELEX pull box with sequential footage markings to speed installations, reduce waste and save labor time.

Quick Specifications

Product Model
ICCABR5EGN
Brand Name
ICC
Product Name
CAT5e 350MHz UTP Solid Cable, 24 AWG, 4 Pair, CMR, 1000ft, Green
Product Type
Network Cable
View Full Technical Specifications

Product Information Tabs

Overview

Deliver reliable, high-performance connectivity for enterprise networks and security systems with the ICC CAT5e CMR riser Ethernet cable. This ICC category 5e UTP solid cable combines 24 AWG 100% pure copper conductors with a 350 MHz bandwidth to support Gigabit Ethernet, high-resolution surveillance streams and low-latency monitoring. Rated CMR for riser applications and UL/ETL certified, it meets TIA 568.2-D and NEC safety standards for vertical cabling runs in office buildings, schools and commercial deployments.

Designed for modern PoE environments, the cable supports PoE++ up to 100W so you can power PTZ cameras, access points and VoIP devices over the same run—reducing installation complexity and cost. The 1000' REELEX pull box is tangle-free and includes sequential footage markings to simplify pulls, inventory and planning on large projects. With RoHS, TAA and Section 889 compliance, this ICC Cat5e riser cable is an efficient, code-compliant choice for networking, security, surveillance and monitoring installations. Order the ICC CAT5e riser cable to streamline deployment and ensure dependable network performance.

Features

  • Enterprise-grade 100% solid pure copper conductors for consistent Gigabit performance and long-term reliability.
  • Supports PoE++ up to 100W to power IP cameras, wireless APs and access control without separate power infrastructure.
  • 350 MHz bandwidth and TIA 568.2-D compliance for clean Gigabit Ethernet and high-bandwidth surveillance/monitoring streams.
  • CMR riser-rated FR‑PVC jacket with UL/ETL certification for safe vertical runs in commercial buildings and schools.
  • 1000' tangle-free REELEX pull box with sequential footage markings to speed installations, reduce waste and save labor time.
General Information
Brand Name ICC
Manufacturer ICC
Product Name CAT5e 350MHz UTP Solid Cable, 24 AWG, 4 Pair, CMR, 1000ft, Green
Product Type Network Cable
Manufacturer Part Number ICCABR5EGN
Technical Information
Material Bare Copper, Polyester
Shielding No
Cable Type Category 5e
Jacket Type CMR, Riser
Cable Rating Riser
Jacket Material FR-PVC
Device Supported Network Device
American Wire Gauge 24AWG
Interfaces/Ports
Connector Type RJ45
Media & Performance
Data Transfer Rate 24 Gbit/s
Physical Characteristics
Color Blue, Brown, Green, Orange, White
Weight 21.60lb
Cable Length 1000'
Package Type Pull Box
Insulation Material High-density Polyethylene (HDPE)
Miscellaneous
Features Attenuation Crosstalk Ratio Far-end (ACR-F), Attenuation to Crosstalk Ratio (ACR), Near End Cross Talk (NEXT), Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT), Unshielded Twisted Pair (UTP)
Country of Origin TW
Environmentally Friendly Yes
Certifications & Standards ETL, RoHS, TIA, UL
Environmental Certification RoHS
