ICC ICCABR6FBL CAT6A CMR Riser 23AWG 100% Solid Pure Copper Shielded Bulk Ethernet Cable, FTP, PoE++, 650 MHz, UL Certified, ETL Verified, 1000' Reel, Blue
Key Features
- Delivers reliable 10G Ethernet performance (650 MHz) for high-bandwidth applications like data centers and backbone networking
- Shielded FTP design and internal spline reduce alien crosstalk and EMI for stable links in dense cable environments

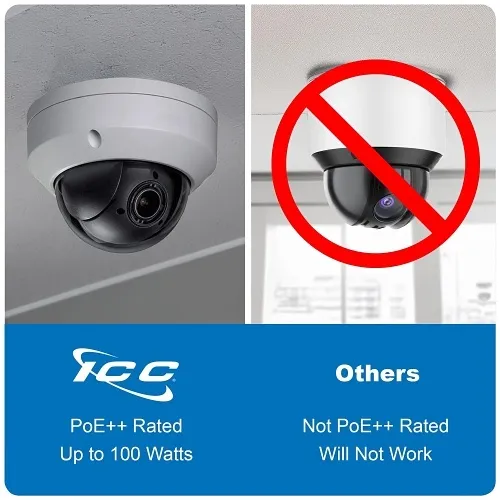

- Supports up to 100W PoE++ to power cameras, access points and IoT devices directly over a single Cat6A cable

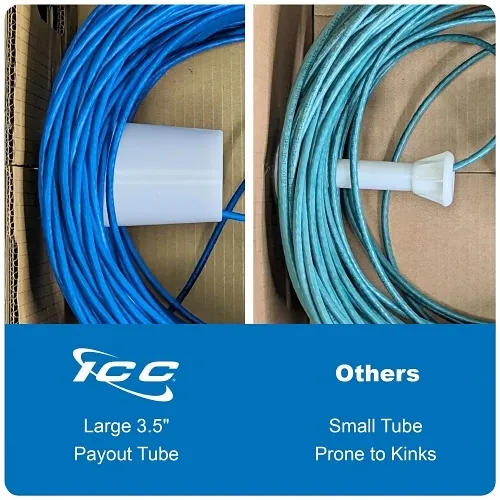

- 1000' reel with sequential footage markings speeds large installations and reduces waste on long runs
- CMR riser-rated PVC jacket and ETL/UL verification ensure NEC compliance and trusted performance for indoor deployments
- 23AWG 100% solid pure copper conductors provide superior signal integrity and long-term reliability
Quick Specifications
- Product Model
- ICCABR6FBL
- Brand Name
- ICC
- Product Name
- Cat.6a FTP Network Cable
- Product Type
- Network Cable
Product Information Tabs
Overview
Built for high-density networks and critical infrastructure, the ICC Cat6A FTP riser network cable (ICCABR6FBL) delivers the performance and reliability professionals need for data, security and surveillance systems. This Category 6A shielded FTP cable supports 10GBASE-T at up to 650 MHz and uses 23 AWG 100% solid pure copper conductors with an internal spline to minimize alien crosstalk—ensuring consistent throughput for video monitoring, access control and enterprise networking. With integrated shielding and ETL/UL verification, the cable resists EMI in equipment rooms and backbone pathways while meeting CMR riser requirements for indoor use. Support for PoE++ (up to 100W) lets you power cameras, wireless APs and other powered devices without separate power runs, simplifying installs and reducing cost. Packaged on a 1000' reel with sequential footage markings, this cable streamlines large deployments and pro installs. Specify the ICC Cat6A FTP riser cable for secure, high-bandwidth connections in data centers, security monitoring, VoIP and building automation projects—order now to upgrade your network backbone.
Features
- Delivers reliable 10G Ethernet performance (650 MHz) for high-bandwidth applications like data centers and backbone networking

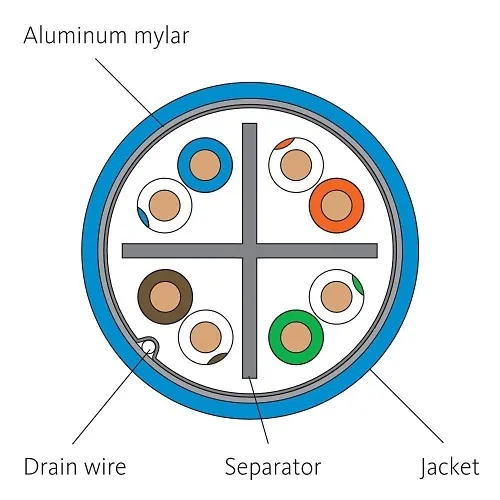

- Shielded FTP design and internal spline reduce alien crosstalk and EMI for stable links in dense cable environments
- Supports up to 100W PoE++ to power cameras, access points and IoT devices directly over a single Cat6A cable
- 1000' reel with sequential footage markings speeds large installations and reduces waste on long runs
- CMR riser-rated PVC jacket and ETL/UL verification ensure NEC compliance and trusted performance for indoor deployments

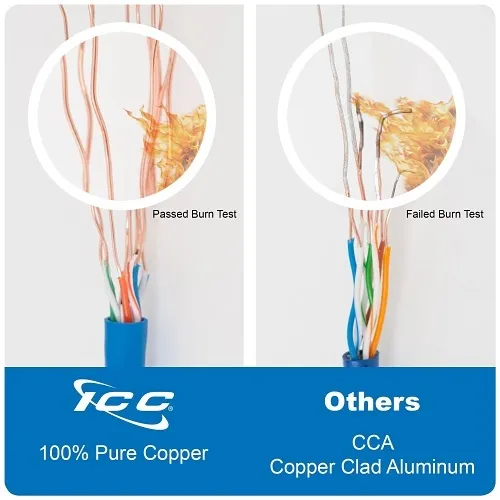

- 23AWG 100% solid pure copper conductors provide superior signal integrity and long-term reliability
| General Information | |
|---|---|
| Brand Name | ICC |
| Manufacturer | ICC |
| Product Name | Cat.6a FTP Network Cable |
| Product Type | Network Cable |
| Manufacturer Part Number | ICCABR6FBL |
| Technical Information | |
| Material | PVC |
| Shielding | Yes |
| Cable Type | Category 6a |
| Jacket Type | Riser |
| Cable Rating | Riser |
| Conductor Count | 4 |
| Jacket Material | PVC |
| Number of Pairs | 4 |
| Device Supported | Network Device |
| American Wire Gauge | 23AWG |
| Number of Conductors | 8 |
| Interfaces/Ports | |
| Connector Type | RJ45 |
| Media & Performance | |
| Data Transfer Rate | 10 Gbit/s |
| Physical Characteristics | |
| Color | Blue |
| Cable Length | 1000' |
| Package Type | Bulk |
| Insulation Material | PE |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Alien Cross Talk (AXT), Alien Near End Crosstalk (ANEXT), Bendable, EMI Protection, Minimized Near-End Crosstalk (NEXT), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Alien Near End Crosstalk (PSANEXT), Power-sum Attenuation To Alien Crosstalk Ratio Far End (PSAACRF), Power-sum Near End Crosstalk (PSNEXT) |
| Country of Origin | CN |
| Environmentally Friendly | Yes |
| Certifications & Standards | ETL, RoHS, TIA, UL |
| Environmental Certification | RoHS |
