ICC ICMPP04860 48-Port Rackmount with CAT6 19" Network Patch Panel and Rear 110 IDC Terminal Blocks for Gigabit Network Switch, UL Listed, PoE Rated Gigabit Applications, 2U RS, Black
Image of 8
Key Features
- High-density 48-port CAT6 layout that maximizes rack space and simplifies cable management for busy network closets
- Supports Gigabit speeds and PoE++ up to 100W to reliably power IP cameras, access points and other security devices
- 110 IDC rear termination with color-coded TIA-568A/B labeling reduces installation time and allows re-termination for moves and changes
- Rugged 16-gauge cold-rolled steel chassis and UL-listed components deliver long-term reliability in enterprise and surveillance environments

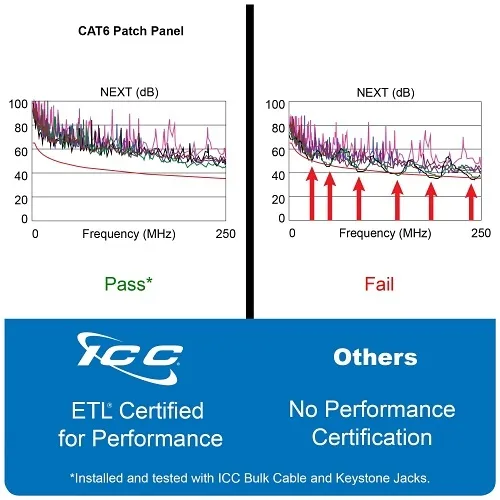

- Engineered crosstalk reduction and backwards compatibility with Cat5e/Cat5 ensure stable performance for mixed cabling infrastructures
Quick Specifications
- Product Model
- ICMPP04860
- Brand Name
- ICC
- Product Name
- ICMPP04860 Patch Panel
- Product Type
- Network Patch Panel
Product Information Tabs
Overview
Optimize rack connectivity for security, surveillance and enterprise monitoring with the ICC 48-Port CAT6 network patch panel. This ICC rackmount patch panel delivers a high-density, 2U solution designed for Gigabit Ethernet switches and PoE-enabled infrastructure—supporting PoE++ up to 100W to power IP cameras, wireless access points and VoIP devices directly from the switch. The panel’s 48 RJ45 ports and rear 110 IDC termination streamline cable organization and allow re-termination for moves, adds and changes, while numbered ports and TIA-568A/B color coding speed installations and reduce errors.

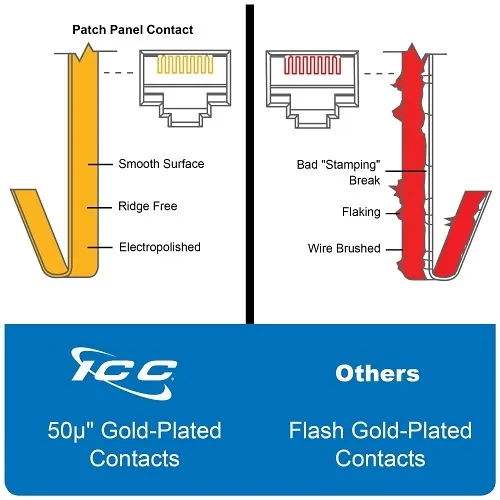

Built from 16-gauge cold-rolled steel with high-impact jack housings and gold-plated contacts, the ICMPP04860 minimizes crosstalk and meets Category 6 performance for reliable data throughput. UL listing and robust construction make it ideal for server rooms, security closets and surveillance hubs where uptime matters. Backwards compatibility with Cat5e and Cat5 protects your existing cabling investment during upgrades.
Deploy this ICC network patch panel to tighten cable management, improve network monitoring, and support PoE-powered security systems—order now or contact sales for bulk and rack design options.
Features
- High-density 48-port CAT6 layout that maximizes rack space and simplifies cable management for busy network closets

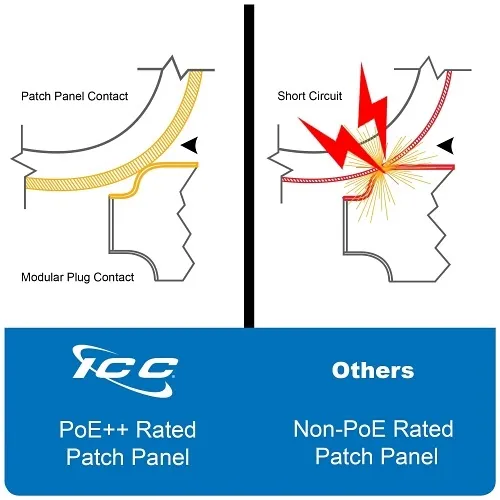

- Supports Gigabit speeds and PoE++ up to 100W to reliably power IP cameras, access points and other security devices

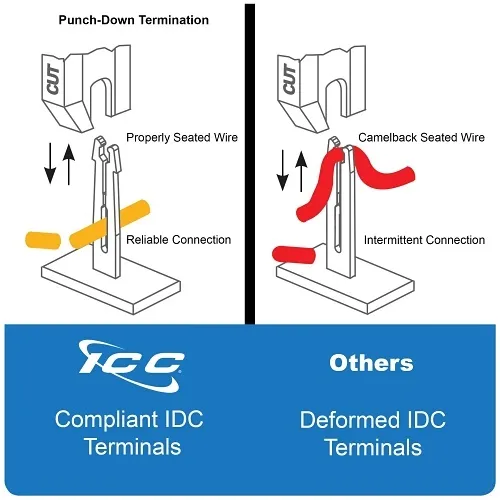

- 110 IDC rear termination with color-coded TIA-568A/B labeling reduces installation time and allows re-termination for moves and changes
- Rugged 16-gauge cold-rolled steel chassis and UL-listed components deliver long-term reliability in enterprise and surveillance environments
- Engineered crosstalk reduction and backwards compatibility with Cat5e/Cat5 ensure stable performance for mixed cabling infrastructures
| General Information | |
|---|---|
| Brand Name | ICC |
| Manufacturer | ICC |
| Product Name | ICMPP04860 Patch Panel |
| Product Type | Network Patch Panel |
| Product Model | ICMPP04860 |
| Connector Gender | Female |
| Manufacturer Part Number | ICMPP04860 |
| Technical Information | |
| Material | Copper |
| Cable Type | Category 6 |
| Interfaces/Ports | |
| Connector Type | RJ49 |
| Number of Ports | 48 |
| Physical Characteristics | |
| Color | Black |
| Width | 3.5" |
| Height | 1.35" |
| Weight | 2.67lb |
| Form Factor | Rack Mount |
| Compatible Rack Unit | 2U |
| Product Information | |
| Length | 19" |
| Mount Type | Rack Mount |
| Miscellaneous | |
| Features | PoE++ Rated to Power Devices |
| Indoor/Outdoor | Indoor |
