ICC ICRDSMMBW8 8" Plastic Net Media Center, Voice / Data 8" x 14.25" x 3.68" D, 6-Pack

SKU: ICRDSMMBW8 ICC

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Image of H2-RDSMMBW8

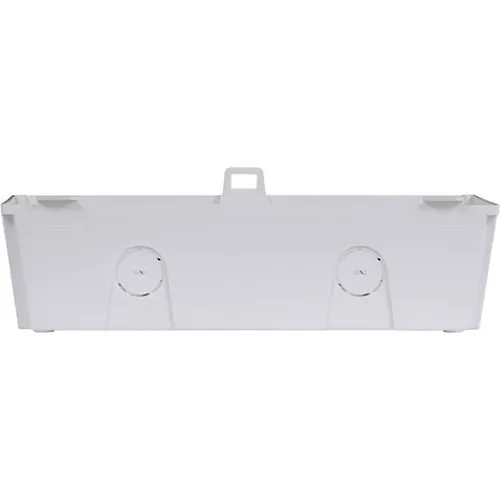

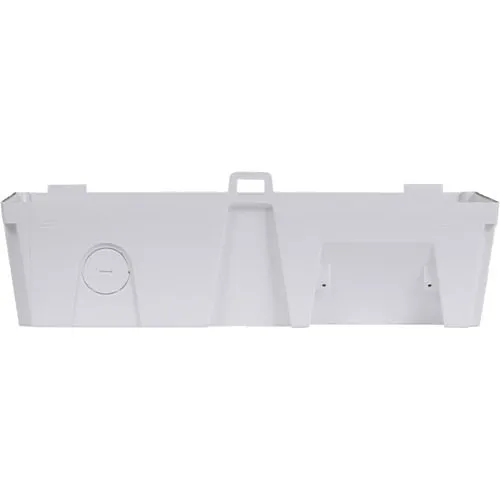

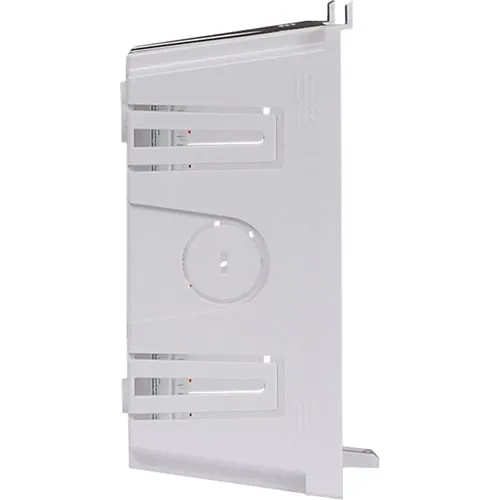

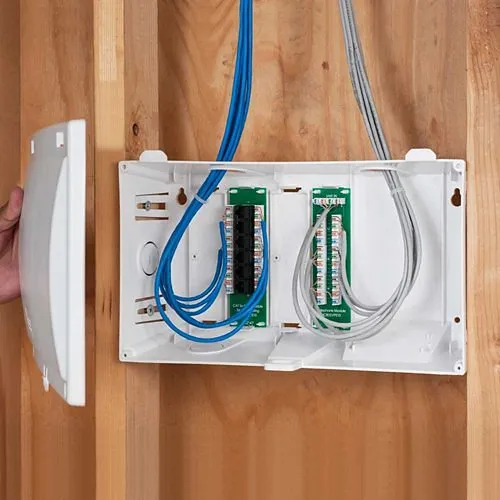

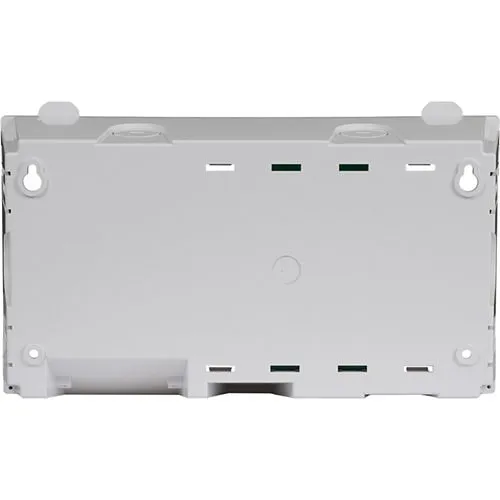

Product images for ICC ICRDSMMBW8 8" Plastic Net Media Center, Voice / Data 8" x 14.25" x 3.68" D, 6-Pack. 6 image(s) available. Click on image to view full size.

Key Features

  • Centralizes voice, data and security cabling for faster troubleshooting and cleaner installs
  • Snap-in 6-port data and 6-port voice modules reduce installation time and eliminate need for extra parts
  • Compact 8 x 14.25 x 3.68 in design fits between 16" studs or mounts surface for flexible placement
  • 6-pack value lowers per-unit cost for multi-unit, retrofit and new-construction projects
  • Durable, lightweight ABS construction with ETL and TIA compliance protects networking and surveillance systems
  • Knockouts and optional padlock provide secure cable routing and restricted access for monitoring and security devices

Quick Specifications

Product Model
ICRDSMMBW8
Brand Name
ICC
Product Name
8" Plastic Net Media Center Combo 6-Pack Voice/Data 8" H X 14.25" W X 3.68" D
Product Type
Phone/Network Patch Panel
View Full Technical Specifications

Product Information Tabs

Overview

Keep residential and multi-unit voice, data and surveillance cabling neat, secure and serviceable with the ICC ICRDSMMBW8 8" Plastic Net Media Center. This structured wiring enclosure from ICC is sold as a 6-pack value set to reduce per-unit cost for installers, contractors and property managers handling small homes, condos, or retrofit projects. The combo includes snap-in modules — six RJ-45 network ports and six voice ports — so you get a complete voice/data distribution point without sourcing separate parts. The compact 8 x 14.25 x 3.68 in footprint fits between standard 16" studs or mounts on the wall, while ABS construction and ETL/TIA compliance ensure reliable protection for security, surveillance and monitoring cabling. Built-in knockouts and a padlock option simplify cable entry and limit access to critical connections. Ideal for structured cabling, home networking and low-voltage security installs, the ICC 8" Net Media Center streamlines deployment and ongoing maintenance. Order the 6-pack today to standardize installations and speed up job completion.

Features

  • Centralizes voice, data and security cabling for faster troubleshooting and cleaner installs
  • Snap-in 6-port data and 6-port voice modules reduce installation time and eliminate need for extra parts
  • Compact 8 x 14.25 x 3.68 in design fits between 16" studs or mounts surface for flexible placement
  • 6-pack value lowers per-unit cost for multi-unit, retrofit and new-construction projects
  • Durable, lightweight ABS construction with ETL and TIA compliance protects networking and surveillance systems
  • Knockouts and optional padlock provide secure cable routing and restricted access for monitoring and security devices
General Information
Brand Name ICC
Manufacturer ICC
Product Name 8" Plastic Net Media Center Combo 6-Pack Voice/Data 8" H X 14.25" W X 3.68" D
Product Type Phone/Network Patch Panel
Manufacturer Part Number ICRDSMMBW8
Technical Information
Material Plastic
Interfaces/Ports
Number of Ports 12
Number of Network (RJ-45) Ports 6
Physical Characteristics
Color White
Depth 3.7"
Width 14.3"
Height 8"
Miscellaneous
Package Contents 2 Top, 1 Bottom, and 2 Side Knockouts (2" Diameter) for Routing Cables, 8" Enclosure, Data Module Connecting Hardware Requirements, Mounting Hardware, Snap-On Cover, Voice Module
Country of Origin CN
Environmentally Friendly Yes
Certifications & Standards ETL, TIA-568-C, TIA-570-B, TIA-607
Environmental Certification UL
