Videofied IDC601 Wireless Door/Window Alarm Contact

SKU: IDC601 Videofied
Videofied Door/Window Contact IDC601

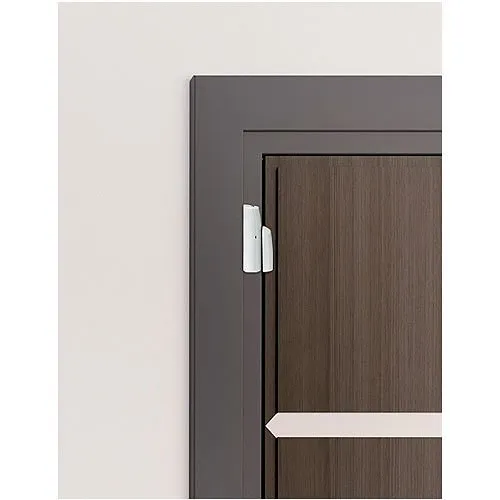

Product images for Videofied IDC601 Wireless Door/Window Alarm Contact. 2 image(s) available. Click on image to view full size.

Key Features

  • Reliable two-way wireless alerts to your Videofied control panel for immediate intrusion detection and reduced false alarms
  • Long-life DL123A lithium battery provides up to 4 years of operation to cut maintenance and service calls
  • Dual tamper protection detects both cover and wall tamper for stronger physical security
  • Compact surface-mount design with a standard 0.39" gap and screw installation for fast deployment across doors, windows and cabinets
  • Encrypted S2View communications and 8-minute check-ins deliver secure, continuous monitoring and easy status reporting

Quick Specifications

Product Model
IDC
Brand Name
Videofied
Product Name
Door/Window Contact IDC601
Product Type
Magnetic Contact
View Full Technical Specifications

Explore the details

Product information

IDC601

Overview

Protect entry points quickly and reliably with the Videofied IDC601 wireless door/window contact. Built for Videofied security systems, this magnetic contact transmitter provides dependable intrusion detection and continuous monitoring for doors, windows and cabinets — ideal for retail, commercial and multi-site security deployments. The IDC601 uses Videofied’s encrypted S2View two-way wireless link so the control panel receives instant open/close alerts and status updates; it also transmits automatic check-ins every eight minutes with battery, tamper and firmware information to simplify ongoing monitoring and maintenance. Installers benefit from a compact surface-mount form, standard 0.39" gap and screw-mount installation that speeds rollout across multiple openings. The unit runs on a single DL123A lithium battery (3.6V) with up to four years typical life, reducing service visits and minimizing downtime. Dual tamper detection guards against cover and wall tamper attempts for enhanced perimeter protection. Ideal for integrators and facilities managers who need reliable, low‑maintenance sensors to support surveillance and alarm monitoring. Add the IDC601 to your Videofied system to strengthen security and streamline maintenance.

Features

  • Reliable two-way wireless alerts to your Videofied control panel for immediate intrusion detection and reduced false alarms
  • Long-life DL123A lithium battery provides up to 4 years of operation to cut maintenance and service calls
  • Dual tamper protection detects both cover and wall tamper for stronger physical security
  • Compact surface-mount design with a standard 0.39" gap and screw installation for fast deployment across doors, windows and cabinets
  • Encrypted S2View communications and 8-minute check-ins deliver secure, continuous monitoring and easy status reporting
24 of 24 specifications
Technical specifications for Videofied IDC601 Wireless Door/Window Alarm Contact
General Information
Brand Name Videofied
Manufacturer Resideo
Product Name Door/Window Contact IDC601
Product Type Magnetic Contact
Product Model IDC
Application/Usage Security System Sensors
Country of Origin FR
Manufacturer Part Number IDC601
Technical Information
Battery Size CR123A
Connectivity Technology Wireless
Battery Information
Battery Chemistry Lithium-Ion (Li-ion)
Environmental Conditions
Minimum Operating Temperature 14°F
Physical Characteristics
Color White
Width 1.00"
Material ABS
Form Factor Surface Mount
Power Description
Power Source Battery
Input Current 70mA
Input Voltage 3.6V DC
Product Information
Length 3.70"
Mount Type Surface Mount
Contact Type NC (Normally Closed)
Miscellaneous
Features The IDC Door/Window Contact is a battery operated, wireless door contact designed for use in Videofied security systems. Door contacts are intended for use in detecting the opening and closing of doors, windows, or cabinet doors/drawers.
Indoor/Outdoor Indoor
