American Dynamics IFS16-M10-BT03 Illustra Flex 4x4MP Indoor/Outdoor Multisensor Camera 360° Camera, 2.8mm Lens, White

SKU: IFS16-M10-BT03-1 MPN: IFS16-M10-BT03 American Dynamics
Illustra Flex IFS16-M10-BT03 4 Megapixel Network Camera

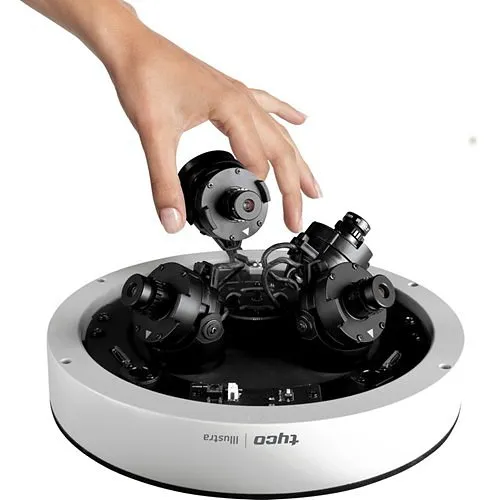

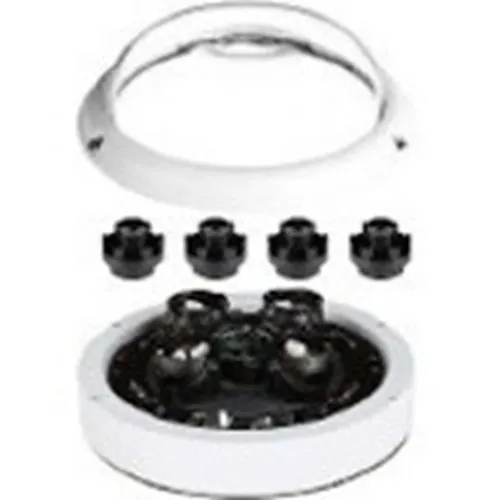

Product images for American Dynamics IFS16-M10-BT03 Illustra Flex 4x4MP Indoor/Outdoor Multisensor Camera 360° Camera, 2.8mm Lens, White. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Cut installation and equipment costs by covering wide areas with one Illustra Flex camera housing four independently aimed 4MP sensors for true 360° protection.
  • Optimize bandwidth and storage with H.264/H.265 encoding and up to three streams per head, letting you assign overview and high-detail streams where needed.
  • Rugged IP66/IP67 and IK10-rated dome ensures reliable indoor/outdoor surveillance in harsh, vandal-prone environments.
  • Simplify deployment and customization with field-swappable 2.8mm lens modules and independently adjustable heads for exact site coverage.
  • Single IP address and a single network cable streamline network management and reduce infrastructure complexity for enterprise monitoring.

Quick Specifications

Brand Name
American Dynamics
Manufacturer
Johnson Controls
Product Line
Flex
Product Name
Multi-directional 4x 4MP Camera with 360 Degree Coverage
View Full Technical Specifications

Frequently Bought Together

This Item
American Dynamics IFS16-M10-BT03 Illustra Flex 4x4MP Indoor/Outdoor Multisensor Camera 360° Camera, 2.8mm Lens, White

American Dynamics IFS16-M10-BT03 Illustra Flex 4x4MP Indoor/Outdoor Multisensor Camera 360° Camera, 2.8mm Lens, White

$1,450.42

Frequently Bought Together (3 items)

4 items selected

Total: $2,537.60

Product Information Tabs

Overview

For large spaces that demand reliable, consolidated monitoring, the American Dynamics Illustra Flex multisensor camera delivers comprehensive 360° surveillance from a single network camera. Ideal for retail floors, transportation hubs, campuses and critical infrastructure, this 4x4MP multi-directional camera provides four independently aimed sensor heads so you can capture both wide-area overviews and high-detail streams without multiple devices or extra IP addresses. With H.264/H.265 video compression and up to three streams per head, the Illustra Flex reduces network and storage costs while maintaining up to 30 fps smooth video. Built to perform outdoors and indoors, the dome features IP66/IP67 ingress protection and IK10 impact resistance for dependable operation in challenging environments. Installation is fast and flexible thanks to field-swappable 2.8mm lens modules and multiple mounting options (ceiling, wall, pendant, recessed). Enhance your security posture with a single compact unit that simplifies management and expands coverage. Contact sales for pricing or a site assessment and see how the Illustra Flex improves your surveillance and monitoring strategy.

Features

  • Cut installation and equipment costs by covering wide areas with one Illustra Flex camera housing four independently aimed 4MP sensors for true 360° protection.
  • Optimize bandwidth and storage with H.264/H.265 encoding and up to three streams per head, letting you assign overview and high-detail streams where needed.
  • Rugged IP66/IP67 and IK10-rated dome ensures reliable indoor/outdoor surveillance in harsh, vandal-prone environments.
  • Simplify deployment and customization with field-swappable 2.8mm lens modules and independently adjustable heads for exact site coverage.
  • Single IP address and a single network cable streamline network management and reduce infrastructure complexity for enterprise monitoring.
General Information
Brand Name American Dynamics
Manufacturer Johnson Controls
Product Line Flex
Product Name Multi-directional 4x 4MP Camera with 360 Degree Coverage
Product Type Network Camera
Product Model IFS16-M10-BT03
Manufacturer Part Number IFS16-M10-BT03
Technical Information
Lens Type Fixed
Video Formats H.265, MJPEG
Maximum Aperture f/2
Maximum Frame Rate 30fps
Video Signal Format NTSC, PAL
Minimum Focal Length 2.8mm
Connectivity Technology Wired
Effective Camera Resolution 4MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66, IP67
Display & Graphics
Maximum Video Resolution 2560 x 1440
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 122°F (50°C)
Minimum Operating Temperature -4°F (-20°C)
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8mm
Maximum Focal Length 2.8mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Height 3.3"
Weight 4.41lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Product Information
Diameter 7.6"
Mount Type Ceiling Mount, Junction Box Mount, Pendant Mount, Recessed Mount, Wall Mount
Storage
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Miscellaneous
Indoor/Outdoor Indoor, Outdoor
Country of Origin KR
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification RoHS
