Pelco IMF122-1ES 12 MP Fisheye Environmental Surface Mount for IP Camera, White

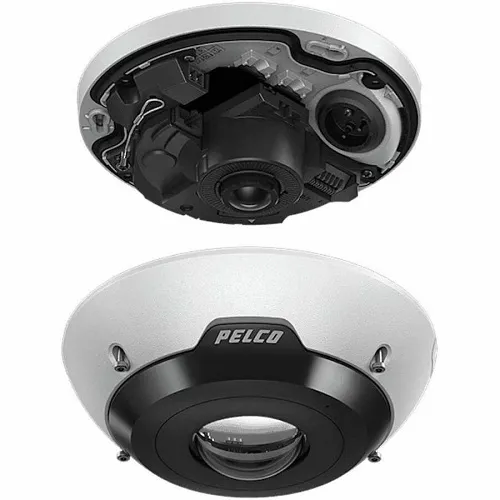

Image of PE-IMF1221ES
Product images for Pelco IMF122-1ES 12 MP Fisheye Environmental Surface Mount for IP Camera, White. 2 image(s) available. Click on image to view full size.

Key Features

  • Protects and preserves 360° fisheye surveillance when paired with Pelco IMF122-1ES cameras, keeping critical sightlines clear and uninterrupted.
  • Rugged IP66/IP67 and IK10-rated construction for reliable outdoor security in harsh weather and high-traffic locations.
  • Reduces false alarms and streamlines monitoring by maintaining camera compatibility with AI analytics and VMS integrations.
  • Flexible surface, ceiling or wall mounting with integrated cable routing to speed installation and minimize visual clutter.
  • Long-term reliability backed by a 5-year limited warranty, lowering total cost of ownership for enterprise deployments.

Quick Specifications

Product Model
IMF122-1ES
Brand Name
Pelco by Motorola Solutions
Product Name
IMF Series Pelco Fisheye Network Camera
Product Type
Network Camera
View Full Technical Specifications

Explore the details

Product information

IMF122-1ES

Overview

Ensure uninterrupted, professional-grade surveillance with the Pelco by Motorola Solutions IMF122-1ES environmental surface mount — built specifically to secure and protect Pelco IMF fisheye network cameras. This white surface mount preserves the camera’s full 360-degree field of view while delivering IP66/IP67 weatherproofing and IK10 impact resistance so your security system continues operating through rain, dust and vandal attempts. When paired with the IMF122-1ES 12 MP fisheye camera (3008 x 3008 resolution) you retain high-detail monitoring and night vision coverage (up to ~39 ft) for reliable identification and evidence capture. Installers benefit from flexible mounting options (ceiling, wall or surface) and integrated cable routing that reduces install time and keeps network connections tidy. Designed for enterprise security, the mount supports standard VMS integrations, local SD storage and the camera’s AI analytics features to help focus operator attention on critical events and reduce false alerts. Ideal for schools, retail, parking and industrial sites — add the Pelco IMF122-1ES environmental surface mount to your next deployment to strengthen outdoor monitoring and simplify installation.

Features

  • Protects and preserves 360° fisheye surveillance when paired with Pelco IMF122-1ES cameras, keeping critical sightlines clear and uninterrupted.
  • Rugged IP66/IP67 and IK10-rated construction for reliable outdoor security in harsh weather and high-traffic locations.
  • Reduces false alarms and streamlines monitoring by maintaining camera compatibility with AI analytics and VMS integrations.
  • Flexible surface, ceiling or wall mounting with integrated cable routing to speed installation and minimize visual clutter.
  • Long-term reliability backed by a 5-year limited warranty, lowering total cost of ownership for enterprise deployments.
45 of 45 specifications
Technical specifications for Pelco IMF122-1ES 12 MP Fisheye Environmental Surface Mount for IP Camera, White
General Information
Brand Name Pelco by Motorola Solutions
Manufacturer Schneider Electric SA
Product Name IMF Series Pelco Fisheye Network Camera
Product Type Network Camera
Product Model IMF122-1ES
Product Series IMF
Manufacturer Part Number IMF1221ES
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View 360°
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/2
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 1.6mm
Connectivity Technology Wired
Camera
Image Sensor Type CMOS
Night Vision Distance 39.37 ft
Certifications
Ingress Protection Rating IP66, IP67
Display & Graphics
Maximum Video Resolution 3008 x 3008
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Longest Shutter Speed 1/6 Second
Shortest Shutter Speed 1/8000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 1.6mm
Lens Included Yes
Maximum Focal Length 1.6mm
Network & Communication
Remote Management Yes
Physical Characteristics
Width 6"
Height 2.4"
Weight 1.48lb
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Power Description
Input Voltage 12V DC
Product Information
Length 6"
Mount Type Ceiling Mount, Surface Mount, Wall Mount
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
Miscellaneous
Features Back Light Compensation (BLC), Day/Night, HTTPS Encryption, Motion Detection, Multi-view Stream, Password Protection, SD Card Local Storage, Video Management System, White Balance, Wide Dynamic Range
Indoor/Outdoor Indoor, Outdoor
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification RoHS
