Key Features
- Simplifies remote automation for security and surveillance by providing two relays and two optically‑isolated inputs for direct control of doors, cameras and alarms
- PoE (IEEE 802.3af) support reduces wiring and speeds installation in racks and field enclosures
- Web-enabled and InformaCast-compatible for easy integration into paging, mass notification and monitoring workflows
- Rugged DIN-rail enclosure and wide operating range (-40°F to 150°F) deliver reliable performance in control rooms and network closets
- Non-volatile memory preserves configurations through power cycles and a 36-month limited warranty supports long-term deployments
Quick Specifications
- Product Model
- IP-1522LR
- Sector
- Professional AV
- Brand Name
- AtlasIED
- Product Name
- IP-1522LR 2 Logic Input x 2 Relay Output IO Device
Explore the details
Product information
IP-1522LR
Overview

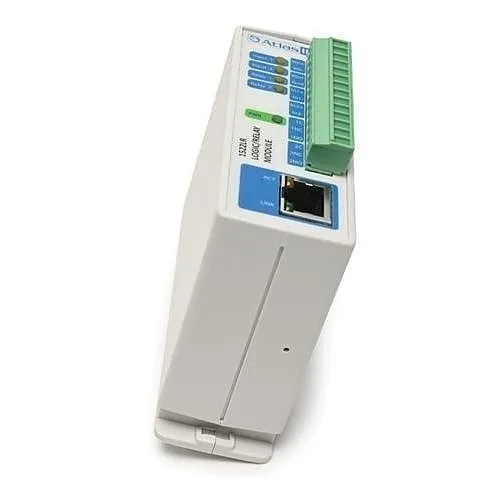

Streamline networked control for security, surveillance and building monitoring with the AtlasIED IP-1522LR relay IO device. This compact, web-enabled AtlasIED relay module delivers two electro-mechanical relays and two optically-isolated inputs so integrators can trigger doors, cameras, alarms or auxiliary equipment directly from the network. PoE (IEEE 802.3af) power eliminates separate power runs to simplify installation, while DIN-rail mounting and a wide operating temperature range (-40°F to 150°F) ensure dependable operation in telecom closets and field cabinets.
Built for professional AV and security deployments, the IP-1522LR stores settings in non-volatile memory to maintain behavior after power loss and integrates with InformaCast via the M2M module for paging and mass notification. It supports common control voltages (up to 24V DC / 28V AC) and handles typical automation loads, making it ideal for access control, CCTV trigger logic and environmental monitoring.
Specify the IP-1522LR when you need secure, low-voltage relay control on the network—contact our sales team or add it to your next security or surveillance system design.
Features
- Simplifies remote automation for security and surveillance by providing two relays and two optically‑isolated inputs for direct control of doors, cameras and alarms
- PoE (IEEE 802.3af) support reduces wiring and speeds installation in racks and field enclosures
- Web-enabled and InformaCast-compatible for easy integration into paging, mass notification and monitoring workflows
- Rugged DIN-rail enclosure and wide operating range (-40°F to 150°F) deliver reliable performance in control rooms and network closets
- Non-volatile memory preserves configurations through power cycles and a 36-month limited warranty supports long-term deployments
| General Information | |
|---|---|
| Sector | Professional AV |
| Brand Name | AtlasIED |
| Product Name | IP-1522LR 2 Logic Input x 2 Relay Output IO Device |
| Product Type | Relay |
| Application/Usage | Automation, Remote Control |
| Manufacturer Part Number | IP-1522LR |
| Environmental Conditions | |
| Maximum Operating Temperature | 150.00°F |
| Minimum Operating Temperature | -40.0°F |
| Physical Characteristics | |
| Depth | 3.10" |
| Width | 1.41" |
| Height | 3.88" |
| Weight | 0.34lb |
| Form Factor | Enclosure |
| Power Description | |
| Maximum Input Current | 3.00A |
| Maximum Operating Voltage | 28.0V |
| Warranty | |
| Limited Warranty | 36-Month |
| Miscellaneous | |
| Compatibility | M2M module |
