SoundTube IPD-CM52-BGM-II-WH 5.25" IP-Addressable, Dante-Enabled In-Ceiling Speaker with Short Can and Seamless Magnetic White Grille
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 3
Key Features
- Networked Dante + PoE delivery for low-latency, centrally managed audio — simplifies paging, background music and security/monitoring integration
- Clear voice intelligibility and full-range music reproduction from a 5.25" woofer and 0.75" silk dome tweeter — ideal for BGM, paging and surveillance voice alerts
- Fast, secure installation with SoundTube SpeedWing mounting and a short can for tight plenum spaces — reduces labor and retrofit time
- Flexible power options: standard PoE/PoE+ (30W max; 40W with STNet Switch II) or 24V DC — deploy in mixed-network or non-PoE environments
- Discreet, magnetic white grille and 11.8" diameter fit modern commercial ceilings for a professional, tamper-resistant aesthetic
- Centralized zoning and configuration via software — manage multiple speakers across security, retail, hospitality and corporate deployments with ease
- 5-year limited warranty and RoHS compliance for reliable, long-term commercial operation
Quick Specifications
- Product Model
- IPD-CM52-BGM-II
- Brand Name
- SoundTube
- Product Name
- IPD-CM52-BGM-II Speaker
- Product Type
- Speaker
Explore the details
Product information
IPD-CM52-BGM-II-WH
Overview

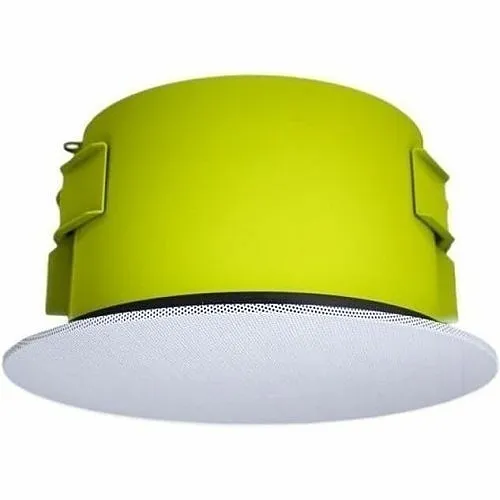

Deliver consistent, networked audio for paging, background music and security announcements with the SoundTube IPD-CM52-BGM-II IP-addressable in-ceiling speaker. Engineered for commercial and security-conscious environments, this Dante-enabled speaker accepts PoE/PoE+ for low-latency audio distribution and simplified wiring, or can run on 24V DC for non-PoE installations. The coaxial design pairs a 5.25" polypropylene woofer with a 0.75" silk dome tweeter to provide clear speech intelligibility and full-range reproduction up to 22 kHz with bass extension into the mid-60 Hz range — ideal for retail, hospitality, corporate paging and surveillance audio cues. Installation is fast with SoundTube’s SpeedWing mounting system and a short can that fits tight ceiling plenums; the seamless magnetic white grille maintains a discreet, professional appearance. Manage zoning, levels and firmware centrally via STNet or compatible networked audio software to streamline monitoring and maintenance across facilities. Specify the IPD-CM52-BGM-II when you need reliable, easy-to-manage in-ceiling audio for security, monitoring and high-quality background music — contact us to discuss deployment options or request a quote.
Features
- Networked Dante + PoE delivery for low-latency, centrally managed audio — simplifies paging, background music and security/monitoring integration
- Clear voice intelligibility and full-range music reproduction from a 5.25" woofer and 0.75" silk dome tweeter — ideal for BGM, paging and surveillance voice alerts
- Fast, secure installation with SoundTube SpeedWing mounting and a short can for tight plenum spaces — reduces labor and retrofit time

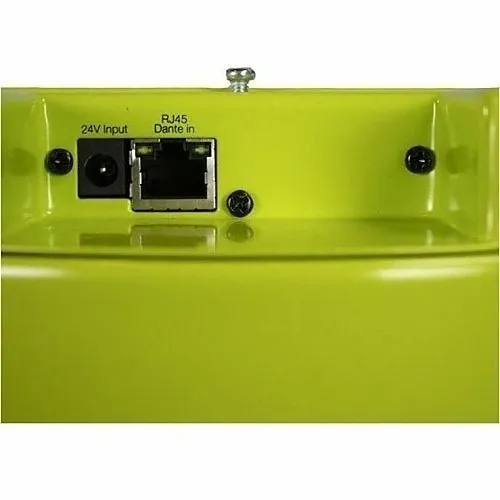

- Flexible power options: standard PoE/PoE+ (30W max; 40W with STNet Switch II) or 24V DC — deploy in mixed-network or non-PoE environments
- Discreet, magnetic white grille and 11.8" diameter fit modern commercial ceilings for a professional, tamper-resistant aesthetic
- Centralized zoning and configuration via software — manage multiple speakers across security, retail, hospitality and corporate deployments with ease
- 5-year limited warranty and RoHS compliance for reliable, long-term commercial operation
| General Information | |
|---|---|
| Brand Name | SoundTube |
| Manufacturer | SoundTube |
| Product Name | IPD-CM52-BGM-II Speaker |
| Product Type | Speaker |
| Product Model | IPD-CM52-BGM-II |
| Product Series | STNet IP-Addressable and Dante Series |
| Manufacturer Part Number | IPDCM52BGMIIWH |
| Technical Information | |
| Material | PP |
| Audio | |
| Maximum Frequency Response | 22 kHz |
| Minimum Frequency Response | 56Hz |
| Certifications | |
| TAA Compliant | No |
| Environmental Conditions | |
| Sound Emission | 10 dB |
| Physical Characteristics | |
| Size | 5.25" |
| Color | White |
| Height | 0.3" |
| Weight | 8lb |
| Power Description | |
| Power Source | PoE, PoE+ |
| Product Information | |
| Diameter | 11.8" |
| Mount Type | Ceiling Mount, In-ceiling Mount |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | DANTE (Digital Audio Network Through Ethernet) |
| Country of Origin | CN |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
