SoundTube IPD-CM52S-BGM-II-WH 5.25" IP-Addressable, Dante-Enabled In-Ceiling Speaker with Short Can and Seamless Magnetic White Grille

SKU: IPD-CM52S-BGM-II-WH SoundTube

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Image of 9W-IPDCM52SH
Product images for SoundTube IPD-CM52S-BGM-II-WH 5.25" IP-Addressable, Dante-Enabled In-Ceiling Speaker with Short Can and Seamless Magnetic White Grille. 3 image(s) available. Click on image to view full size.

Key Features

  • Networked Dante + PoE/PoE+ playback for low-latency, centralized audio control and simplified installation

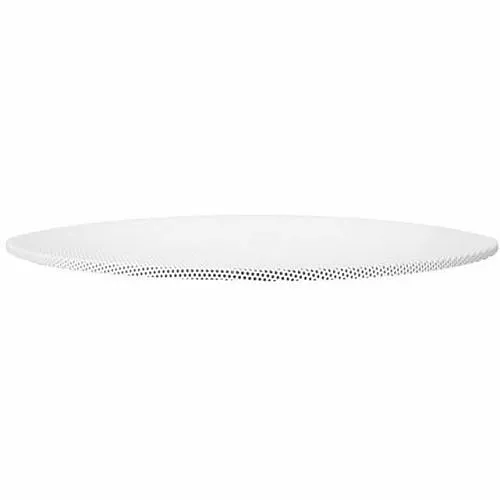

  • Shallow 3.5" backcan and seamless magnetic white grille for fast installs in tight plenum ceilings and a discreet, professional finish
  • 5.25" woofer with 0.75" silk dome tweeter delivers clear voice intelligibility and balanced music down to 65 Hz—ideal for paging and background music
  • IP-addressable with STNet compatibility and software zoning for remote monitoring, configuration and integration with security or surveillance systems
  • SpeedWing mounting, included tile bridge and conduit clamp reduce install time; backed by a 5-year limited warranty for long-term reliability

Quick Specifications

Product Model
IPD-CM52s-BGM-II
Brand Name
SoundTube
Product Name
IPD-CM52s-BGM-II Speaker
Product Type
Speaker
View Full Technical Specifications

Product Information Tabs

Overview

Provide reliable, networked audio for paging, background music and security monitoring in spaces with limited plenum depth. The SoundTube IPD-CM52S-BGM-II in-ceiling speaker is a Dante-enabled, IP-addressable pro speaker engineered for fast installs and consistent coverage. With PoE/PoE+ power and low-latency digital audio over a single category cable, you get streamlined wiring and centralized control for multi-zone systems. The shallow 3.5" backcan accommodates tight ceiling cavities while the seamless magnetic white grille offers a clean, unobtrusive look for retail, hospitality and corporate environments.

Acoustically, a 5.25" polypropylene woofer and 0.75" silk dome tweeter deliver clear voice reproduction and music fidelity down to 65 Hz and up to 22 kHz, driven at 20 W RMS—ideal for intelligible paging, background ambiance and audio monitoring for security or surveillance applications. IP addressing and STNet software enable easy zoning, firmware updates and remote diagnostics. Installers benefit from SpeedWing mounting, a color-coded tile bridge and included conduit clamp. Specify the IPD-CM52S-BGM-II for pro AV, security paging or monitoring projects—contact sales or add to your next system design.

Features

  • Networked Dante + PoE/PoE+ playback for low-latency, centralized audio control and simplified installation
  • Shallow 3.5" backcan and seamless magnetic white grille for fast installs in tight plenum ceilings and a discreet, professional finish
  • 5.25" woofer with 0.75" silk dome tweeter delivers clear voice intelligibility and balanced music down to 65 Hz—ideal for paging and background music
  • IP-addressable with STNet compatibility and software zoning for remote monitoring, configuration and integration with security or surveillance systems
  • SpeedWing mounting, included tile bridge and conduit clamp reduce install time; backed by a 5-year limited warranty for long-term reliability
General Information
Brand Name SoundTube
Manufacturer SoundTube
Product Name IPD-CM52s-BGM-II Speaker
Product Type Speaker
Product Model IPD-CM52s-BGM-II
Product Series STNet IP-Addressable and Dante Series
Manufacturer Part Number IPDCM52SBGMIIWH
Technical Information
Material PP
Crossover Type 2-way
Audio
RMS Output Power 20W
Maximum Frequency Response 22 kHz
Minimum Frequency Response 65Hz
Certifications
TAA Compliant No
Environmental Conditions
Sound Emission 10 dB
Physical Characteristics
Size 5.25"
Color White
Height 0.3"
Weight 8lb
Power Description
Power Source PoE, PoE+
Product Information
Diameter 11.8"
Mount Type Ceiling Mount, In-ceiling Mount
Warranty
Limited Warranty 5-Year
Miscellaneous
Features DANTE (Digital Audio Network Through Ethernet)
Country of Origin CN
Environmentally Friendly Yes
Environmental Certification RoHS
