SoundTube IPD-SM500i-II-WH 5.25" Surface Mount Speaker, IP-Addressable, Dante-Enabled, White

SKU: IPD-SM500I-II-WH SoundTube

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

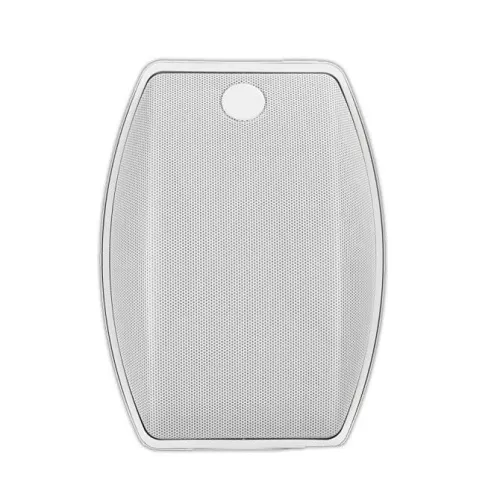

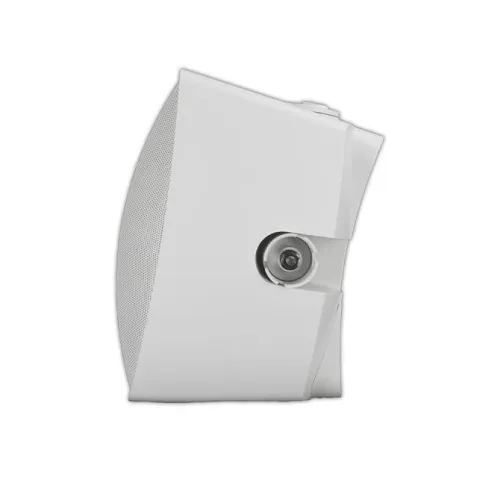

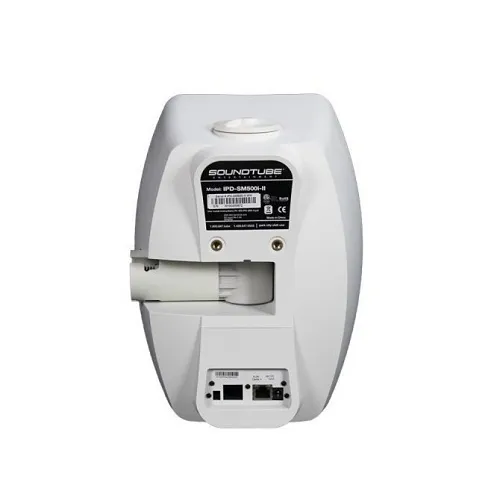

Image of 9W-IPDSM50IW
Product images for SoundTube IPD-SM500i-II-WH 5.25" Surface Mount Speaker, IP-Addressable, Dante-Enabled, White. 4 image(s) available. Click on image to view full size.

Key Features

  • Single-cable PoE delivery for power, audio and control simplifies installations and reduces labor costs
  • Dante/AES67 network audio ensures low-latency, scalable integration with existing AV and security systems
  • BroadBeam waveguide and 5.25" woofer deliver consistent coverage and clear voice reproduction for paging and background music
  • Stealth bracket offers low-profile, tamper-resistant mounting with unlimited aiming for precise coverage in public and secure areas
  • Remote configuration and health report-back streamline maintenance and reduce onsite service visits

Quick Specifications

Product Model
IPD-SM500I-II-WH
Brand Name
SoundTube
Packaged Quantity
1
Manufacturer Part Number
IPD-SM500I-II-WH
View Full Technical Specifications

Product Information Tabs

Overview

Deliver clear, networked audio across commercial and security environments with the SoundTube IPD-SM500i-II-WH 5.25" surface mount speaker. Designed for IT-driven installations, this Dante-enabled Pro Speaker combines a 5.25" polypropylene woofer and a 1.0" titanium tweeter with BroadBeam waveguide to provide wide, intelligible coverage up to 22 kHz — ideal for paging, background music and monitoring in retail, transit, campus and surveillance applications. PoE/PoE+ support (40W via compatible switches) and AES67 interoperability let you run power, low-latency digital audio and control over a single CAT5/6 cable, reducing installation time and conduit complexity. The included Stealth bracket provides discreet, tamper-resistant mounting with vertical and horizontal aiming, while SoundTube’s software enables zoning, configuration and remote health reporting to minimize maintenance calls. UL, CE and RoHS certifications ensure code-compliant deployments. For installers and security integrators seeking a reliable, network-ready speaker for paging, monitoring and surveillance playback, specify the SoundTube IPD-SM500i-II-WH for your next project.

Features

  • Single-cable PoE delivery for power, audio and control simplifies installations and reduces labor costs
  • Dante/AES67 network audio ensures low-latency, scalable integration with existing AV and security systems
  • BroadBeam waveguide and 5.25" woofer deliver consistent coverage and clear voice reproduction for paging and background music
  • Stealth bracket offers low-profile, tamper-resistant mounting with unlimited aiming for precise coverage in public and secure areas
  • Remote configuration and health report-back streamline maintenance and reduce onsite service visits
General Information
Brand Name SoundTube
Packaged Quantity 1
Manufacturer Part Number IPD-SM500I-II-WH
Audio
Maximum Frequency Response 22 kHz
Minimum Frequency Response 60 Hz, 86 Hz
Physical Characteristics
Color White
Depth 10.48"
Width 8.36"
Height 11.4"
Package Type Box
Power Description
Power Source RJ45 Ethernet Port
Product Information
Mount Type Surface
Miscellaneous
Environmentally Friendly Yes
Environmental Certification CE, RoHS, UL
