SoundTube IPD4-CM52-BGM-II IPD Series 5.25" IP-Addressable, 4-Channel In-Ceiling Speaker with Seamless Magnetic Grille, White
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 3
Key Features
- Scalable Dante-enabled audio: delivers low-latency, networked sound and powers up to three additional CM52-BGM-II speakers for expanded coverage.

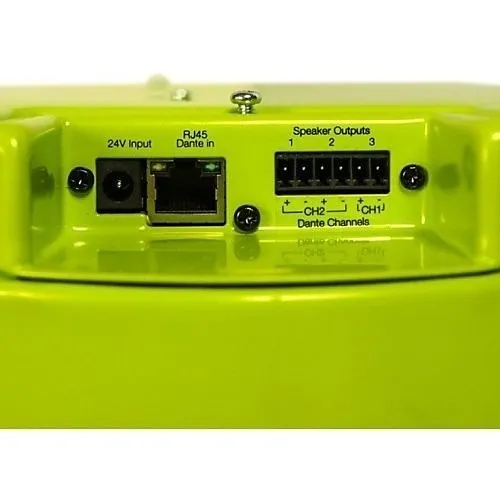

- Simplified installation and zoning: single CAT5/6 PoE/PoE+ feed carries audio, power and control for fast integration into IP networks and monitoring systems.
- Clear, full-range sound: 5.25-inch polypropylene woofer and 0.75-inch silk-dome tweeter with BroadBeam Ring for wide off-axis coverage and reliable speech intelligibility.
- Discrete, professional aesthetics: seamless magnetic grille in white for a flush, tamper-resistant finish ideal for retail, hospitality and security environments.
- Robust mounting and code-ready hardware: SpeedWing constant-tension clamp, UL-listed conduit clamp and tile bridge included for fast, code-compliant installs.
Quick Specifications
- Product Model
- IPD4-CM52-BGM
- Brand Name
- SoundTube
- Product Name
- IPD4-CM52-BGM Speaker
- Product Type
- Speaker
Explore the details
Product information
IPD4-CM52-BGM-II-WH
Overview

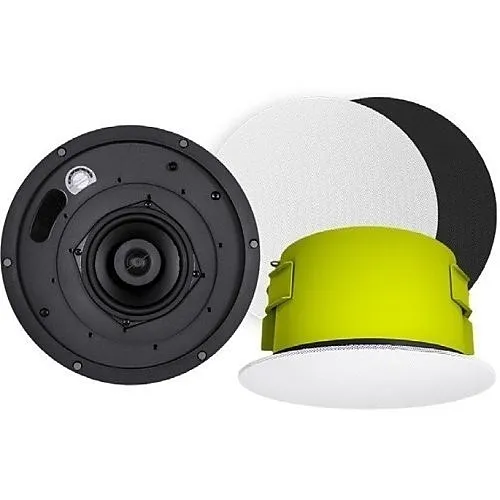

Designed for commercial and security-conscious installations, the SoundTube IPD4-CM52-BGM-II IP-addressable in-ceiling speaker delivers scalable, low-latency Dante audio and flexible zoning to simplify distributed sound across retail, hospitality, education and surveillance applications. This pro speaker pairs a 5.25-inch polypropylene woofer with a 0.75-inch silk-dome tweeter to achieve usable bass to ~65 Hz and extended response to 22 kHz, providing clear PA and background music (BGM) reproduction and excellent speech intelligibility for paging and monitoring. Power, audio and control are routed over a single CAT5/CAT6 cable via PoE/PoE+, or optionally via 24V DC, enabling fast networked deployment and interoperability with STNet switches and Dante-enabled consoles. The IP-addressable 4-channel design can drive three additional CM52-BGM-II speakers for clustered or split-channel configurations, while the seamless magnetic grille and SpeedWing mounting keep installations discreet and secure. Specify the SoundTube IPD4-CM52-BGM-II for reliable, networked audio in security, surveillance and commercial AV systems—contact your reseller to design a zoned Dante audio layout or order for your next project.
Features
- Scalable Dante-enabled audio: delivers low-latency, networked sound and powers up to three additional CM52-BGM-II speakers for expanded coverage.
- Simplified installation and zoning: single CAT5/6 PoE/PoE+ feed carries audio, power and control for fast integration into IP networks and monitoring systems.
- Clear, full-range sound: 5.25-inch polypropylene woofer and 0.75-inch silk-dome tweeter with BroadBeam Ring for wide off-axis coverage and reliable speech intelligibility.
- Discrete, professional aesthetics: seamless magnetic grille in white for a flush, tamper-resistant finish ideal for retail, hospitality and security environments.
- Robust mounting and code-ready hardware: SpeedWing constant-tension clamp, UL-listed conduit clamp and tile bridge included for fast, code-compliant installs.
| General Information | |
|---|---|
| Brand Name | SoundTube |
| Manufacturer | SoundTube |
| Product Name | IPD4-CM52-BGM Speaker |
| Product Type | Speaker |
| Product Model | IPD4-CM52-BGM |
| Product Series | STNet IP-Addressable and Dante Series |
| Manufacturer Part Number | IPD4-CM52-BGM-II-WH |
| Technical Information | |
| Material | PP, Rubber |
| Speaker Size | 5" |
| Wireless Speaker | No |
| Application/Usage | Dante-Enabled |
| Audio | |
| Number of Speakers | 1 |
| Maximum Frequency Response | 22 kHz |
| Minimum Frequency Response | 56Hz |
| Certifications | |
| TAA Compliant | No |
| Environmental Conditions | |
| Sound Emission | 10 dB |
| Others | |
| Model Number Replaces | IPD4-CM52-BGM-II-WH |
| Physical Characteristics | |
| Size | 5.25" |
| Color | White |
| Height | 5.8" |
| Product Information | |
| Diameter | 9.7" |
| Mount Type | In-ceiling Mount |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | Dante-Enabled |
| Indoor/Outdoor | Indoor, Outdoor |
| Country of Origin | CN |
No matching specifications
Try a different term, such as a connector type or resolution.
Plan your purchase
Is this right for your project?
Confirm the model, required accessories and delivery needs before ordering.
- SKU:
- IPD4-CM52-BGM-II-WH
- Manufacturer part:
- IPD4-CM52-BGM-II-WH
How do I confirm compatibility?
Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.
Ask a product specialistWhen will this item ship?
Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.
Shipping, freight and delivery detailsWhat should I know about returns?
Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.
Read return eligibility and exclusionsSoundTube IPD4-CM52-BGM-II IPD Series 5.25" IP-Addressable, 4-Channel In-Ceiling Speaker with Seamless Magnetic Grille, White
IPD4-CM52-BGM-II-WH
