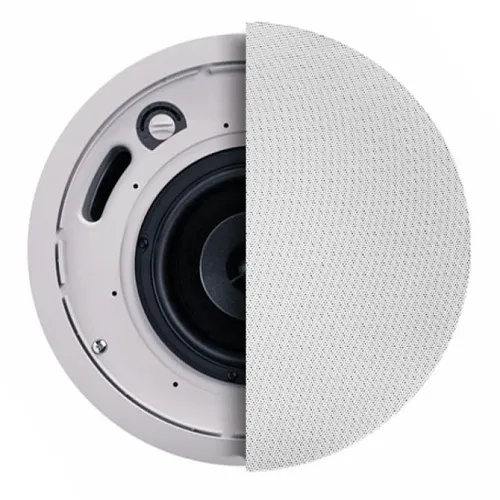

SoundTube IPD4-CM62-BGM-II-WH 6" Ceiling Dante Enabled Coaxial Speaker with Seamless Magnetic Grille, White
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 5
Key Features
- Simplified networked audio: Dante-enabled PoE delivery of low-latency audio, power and control over a single CAT5/6 cable for faster installations and reduced wiring costs.

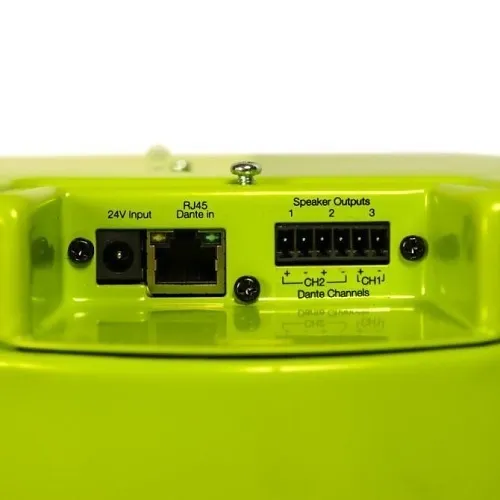

- Scalable coverage: Onboard outputs power up to three additional CM62-BGM speakers, letting you expand zones and create distributed paging or background-music systems with minimal hardware.
- Consistent sound quality: 6.5-inch polypropylene woofer and 1.0-inch silk-dome tweeter with BroadBeam Ring for clear mid-range, smooth off-axis coverage and bass to 60 Hz.

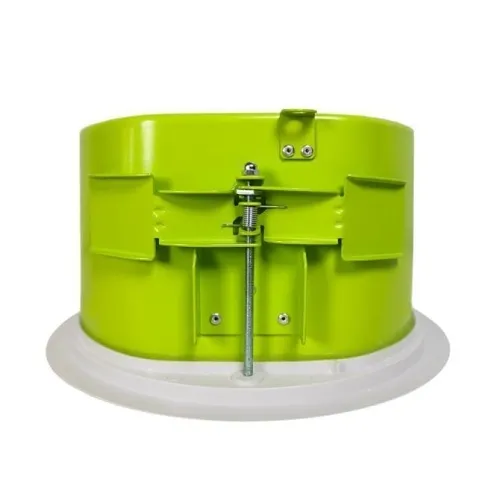

- Flexible installation: SpeedWing fixed-wing mounting and included tile bridge and conduit clamp make ceiling installs quick and code-compliant in commercial and security environments.
- Versatile power options: PoE/PoE+ or 24 VDC support ensures compatibility with modern network audio infrastructures and legacy non-PoE sites.
Quick Specifications
- Product Model
- IPD4-CM62-BGM-II-WH
- Brand Name
- SoundTube
- Product Type
- Speaker
- Manufacturer Part Number
- IPD4-CM62-BGM-II-WH
Explore the details
Product information
IPD4-CM62-BGM-II-WH
Overview
Engineered for commercial paging, background-music and monitoring applications, the SoundTube IPD4-CM62-BGM-II-WH delivers networked audio simplicity and consistent performance across large sites. This Dante-enabled 6" ceiling pro speaker accepts PoE/PoE+ or 24 VDC and uses a single CAT5/6 run to provide low-latency audio, power and control—streamlining deployment in retail, hospitality, surveillance and security installations. The coaxial design features a 6.5-inch polypropylene woofer and a 1.0-inch silk-dome tweeter with BroadBeam Ring technology, producing clear mid-range, smooth off-axis coverage and bass down to 60 Hz (–10 dB) for intelligible paging and background music. Built-in outputs allow the speaker to power up to three additional CM62-BGM units for expandable zone coverage without extra amplifiers. UL listings, a SpeedWing mounting system, and included tile bridge and conduit clamp reduce install time and ensure code compliance. Ideal for integrators specifying commercial audio for security, monitoring rooms or distributed paging systems—specify the SoundTube IPD4-CM62-BGM-II-WH for reliable, networked ceiling audio. Contact your rep or add to cart to streamline your next installation.
Features
- Simplified networked audio: Dante-enabled PoE delivery of low-latency audio, power and control over a single CAT5/6 cable for faster installations and reduced wiring costs.
- Scalable coverage: Onboard outputs power up to three additional CM62-BGM speakers, letting you expand zones and create distributed paging or background-music systems with minimal hardware.
- Consistent sound quality: 6.5-inch polypropylene woofer and 1.0-inch silk-dome tweeter with BroadBeam Ring for clear mid-range, smooth off-axis coverage and bass to 60 Hz.
- Flexible installation: SpeedWing fixed-wing mounting and included tile bridge and conduit clamp make ceiling installs quick and code-compliant in commercial and security environments.
- Versatile power options: PoE/PoE+ or 24 VDC support ensures compatibility with modern network audio infrastructures and legacy non-PoE sites.
| General Information | |
|---|---|
| Brand Name | SoundTube |
| Product Type | Speaker |
| Manufacturer Part Number | IPD4-CM62-BGM-II-WH |
| Audio | |
| Maximum Frequency Response | 20.0kHz |
| Minimum Frequency Response | 60.0000Hz |
| Physical Characteristics | |
| Color | White |
| Depth | 6.63" |
| Miscellaneous | |
| Features | BroadBeam Ring technology for mid-range clarity and smooth off-axis performance, Dante I/O for interconnectivity with Danteenabled audio systems, Fast connection of power, audio and control functions via one CAT5 or CAT6 cable, Included accessories color-coded (green) tile bridge, UL listed 0.5" conduit clamp, IP-addressable, self-powered (PoE) speaker with audio and power outputs for three standard CM62-BGM-II speakers |
| Environmentally Friendly | Yes |
| Environmental Certification | CE, UL |
