Honeywell Home IS335 Wired PIR Motion Detector with Pet Immunity, 40' 56' Range

SKU: IS335 Honeywell Home

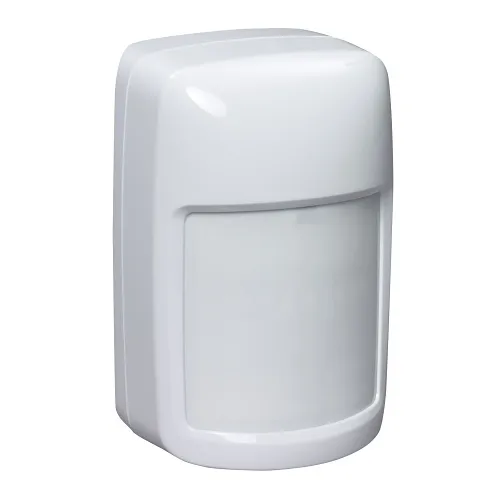

Honeywell Home Wired PIR Motion Detector
Product images for Honeywell Home IS335 Wired PIR Motion Detector with Pet Immunity, 40' 56' Range. 2 image(s) available. Click on image to view full size.

Key Features

  • Reliable intrusion detection with a wide 40' x 56' PIR coverage to secure entryways, corridors and living spaces
  • Selectable pet immunity (up to 80 lbs) reduces nuisance alarms in pet-friendly homes and commercial sites
  • Sealed optics and 2,000-lux white-light immunity minimize false alarms from insects, lights and reflections
  • Wired design with always-on LED and ETL/cETL listings for dependable, code-compliant performance
  • Quick wall or corner mounting at 7–9 ft saves installation time and maintains a low-profile, professional appearance

Quick Specifications

Product Model
IS335
Brand Name
Honeywell Home
Product Name
Wired PIR Motion Detector
Product Type
Motion Sensor
View Full Technical Specifications

Explore the details

Product information

IS335

Overview

Protect residential and light-commercial properties with reliable, nuisance-resistant motion detection. The Honeywell Home IS335 wired PIR motion detector combines passive infrared sensing with advanced optics to deliver consistent detection across a 40' x 56' coverage pattern while reducing false alarms. Installers will appreciate fast, flexible mounting (wall or corner at 7–9 ft) and a wired connection that integrates seamlessly with existing alarm systems and monitoring platforms.

Engineered for real-world environments, the IS335 features selectable pet immunity for animals up to 80 lbs and a sealed optical chamber plus 2,000-lux white-light immunity to prevent triggers from insects, bright lights or reflective surfaces. The always-enabled LED provides visible status for testing and service, and ETL/cETL listings give confidence in safety and compliance. Ideal for security, surveillance and monitoring applications, the IS335 balances superior catch performance with reduced false alarms—helping lower service calls and customer complaints.

Add the Honeywell Home IS335 to your next installation for dependable intrusion detection and clear operational benefits—order now or contact your distributor for system integration.

Features

  • Reliable intrusion detection with a wide 40' x 56' PIR coverage to secure entryways, corridors and living spaces
  • Selectable pet immunity (up to 80 lbs) reduces nuisance alarms in pet-friendly homes and commercial sites
  • Sealed optics and 2,000-lux white-light immunity minimize false alarms from insects, lights and reflections
  • Wired design with always-on LED and ETL/cETL listings for dependable, code-compliant performance
  • Quick wall or corner mounting at 7–9 ft saves installation time and maintains a low-profile, professional appearance
28 of 28 specifications
Technical specifications for Honeywell Home IS335 Wired PIR Motion Detector with Pet Immunity, 40' 56' Range
General Information
Brand Name Honeywell Home
Manufacturer Resideo
Product Name Wired PIR Motion Detector
Product Type Motion Sensor
Product Model IS335
Product Series IS3000
Application/Usage Motion Detection for Security Systems
Country of Origin CN
Manufacturer Part Number IS335
Technical Information
Wireless Technology Infrared
Connectivity Technology Wired
Passive Infrared Sensor (PIR) Yes
Maximum Motion Sensing Distance 40'
Minimum Motion Sensing Distance 84"
Certifications
Certifications & Standards cETL Listed to ULC S306, ETL Listed to UL 639
Environmental Conditions
Minimum Operating Temperature 14°F
Physical Characteristics
Color White
Depth 1.71"
Width 2.24"
Height 3.39"
Weight 2.15oz
Form Factor Corner Mount, Surface Mount, Wall Mount
Power Description
Power Source DC Power
Product Information
Mount Type Corner Mount, Surface Mount, Wall Mount
Product Replacements & Other Alternatives
Model Number Replaces AURORA, IS215T, IS2560TC
Miscellaneous
Features Coverage range protection
Compatibility Security Systems
Indoor/Outdoor Indoor
