VIVOTEK IT9380-H C-Series 5MP WDR Pro Smart Turret IP Camera, 2.8mm Fixed Lens, IR, White

SKU: IT9380-HF2 VIVOTEK
Image of T6-IT9380HF2
Product images for VIVOTEK IT9380-H C-Series 5MP WDR Pro Smart Turret IP Camera, 2.8mm Fixed Lens, IR, White. 5 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

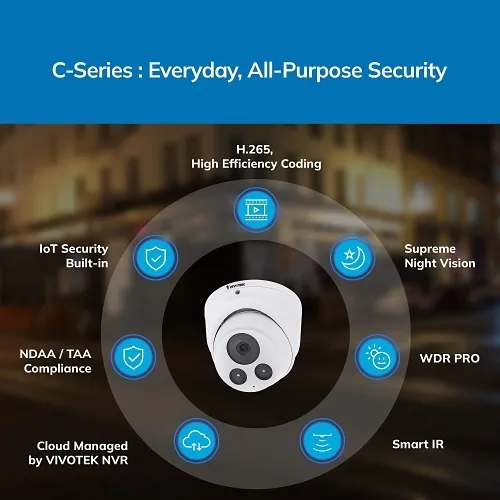

  • High-resolution 5MP imaging with WDR Pro for clear, usable evidence in scenes with mixed bright and dark lighting
  • H.265 and Smart Stream III reduce bandwidth and storage costs while preserving detail for long-term surveillance

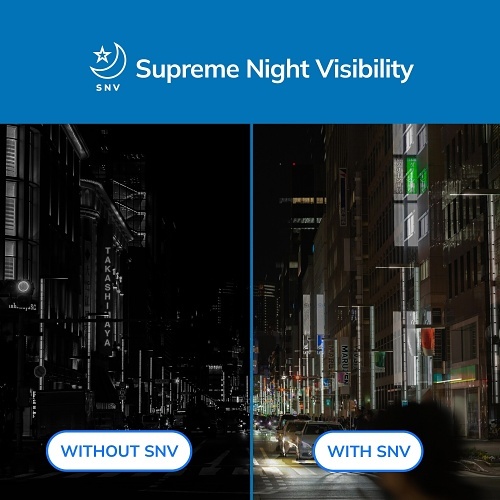

  • Built-in IR (up to 30 m / ~98 ft) and SNV ensure reliable night-time monitoring for perimeter and parking areas
  • Rugged IP66 / IK10 housing withstands weather and vandal attempts for dependable outdoor deployment
  • On-board microSD storage, Trend Micro IoT protection, and built-in microphone simplify secure, standalone or networked installations

Quick Specifications

Product Model
IT9380-H
Brand Name
VIVOTEK
Product Name
IT9380-H Turret Dome Network Camera
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

This Item
VIVOTEK IT9380-H C-Series 5MP WDR Pro Smart Turret IP Camera, 2.8mm Fixed Lens, IR, White

VIVOTEK IT9380-H C-Series 5MP WDR Pro Smart Turret IP Camera, 2.8mm Fixed Lens, IR, White

Frequently Bought Together (4 items)

5 items selected

Total: $1,138.02

Explore the details

Product information

IT9380-HF2

Overview

Deliver continuous, reliable surveillance for outdoor and indoor perimeters with the VIVOTEK IT9380-H C-Series 5MP Smart Turret IP Camera. Engineered for security professionals, this turret camera combines 5MP resolution (2560 x 1920 at up to 20 fps) with WDR Pro to produce clear, actionable footage in scenes that include both bright highlights and deep shadows. H.265 compression and Smart Stream III optimize bandwidth and storage so you can retain more footage without ballooning costs. Built-in IR illuminators extend night vision to approximately 30 meters (98 ft) and SNV improves low-light performance, while an IP66 weather rating and IK10 impact protection ensure this unit keeps monitoring through harsh conditions. Additional benefits include onboard microSD recording, Trend Micro IoT security hardening, a built-in microphone, and simple RJ‑45 network connectivity for PoE deployments. Ideal for perimeter, retail exterior, parking lot, and campus security applications—deploy the VIVOTEK IT9380-H to strengthen your monitoring strategy and capture critical video when it matters most. Contact us for configuration or order today to upgrade your networked surveillance.

Features

  • High-resolution 5MP imaging with WDR Pro for clear, usable evidence in scenes with mixed bright and dark lighting
  • H.265 and Smart Stream III reduce bandwidth and storage costs while preserving detail for long-term surveillance
  • Built-in IR (up to 30 m / ~98 ft) and SNV ensure reliable night-time monitoring for perimeter and parking areas
  • Rugged IP66 / IK10 housing withstands weather and vandal attempts for dependable outdoor deployment
  • On-board microSD storage, Trend Micro IoT protection, and built-in microphone simplify secure, standalone or networked installations
44 of 44 specifications
Technical specifications for VIVOTEK IT9380-H C-Series 5MP WDR Pro Smart Turret IP Camera, 2.8mm Fixed Lens, IR, White
General Information
Brand Name VIVOTEK
Manufacturer Vivotek, Inc
Product Name IT9380-H Turret Dome Network Camera
Product Type Network Camera
Product Model IT9380-H
Product Series C
Manufacturer Part Number IT9380-HF2
Technical Information
Lens Type Fixed
Night Vision Yes
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/2
Night Vision Type Infrared
Number of IR LEDs 2
Maximum Frame Rate 20fps
Minimum Focal Length 2.8mm
Connectivity Technology Wired
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98.43 ft
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature 14°F (-10°C)
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8mm
Maximum Focal Length 2.8mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces IT9389-H-F2
Physical Characteristics
Color White
Height 3.2"
Weight 1.05 lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Turret
Product Information
Diameter 4.1"
Mount Type Bracket Mount, Junction Box Mount
Storage
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Indoor/Outdoor Indoor/Outdoor
Impact Protection Rating IK10
