HPE JL806A#ABA Instant On Swtich Series 1960 24-Port Gb Smart-Managed Layer 2+ Ethernet Switch, 24x 1G, 2x 10GBase-T, 2x SFP+, Stackable
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

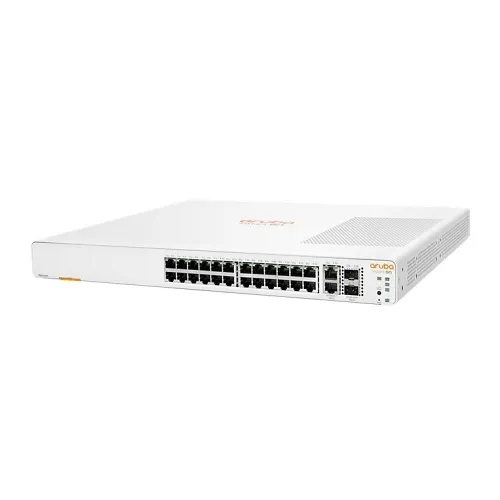

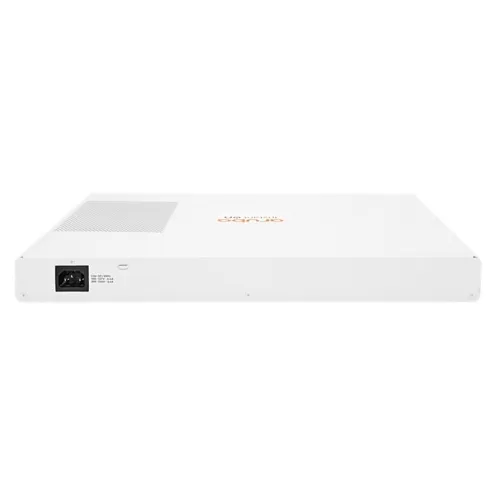

Image of 3
Key Features
- Simplified management from any device with Instant On mobile app or cloud portal, reducing IT time and enabling remote monitoring
- High-performance switching for bandwidth-heavy applications: 24x 1G ports plus 2x 10GBase-T and 2x SFP+ uplinks to support surveillance, security appliances, and VoIP
- Stackable up to four units to create a single managed logical switch, simplifying expansion and minimizing configuration overhead
- Built-in Layer 2+ security and access controls (802.1x, DDoS protection) to protect sensitive data and ensure reliable monitoring and surveillance traffic
- Rack-ready, low-profile design with lifetime limited warranty for dependable deployment in branch offices, retail, or CCTV/recording rooms
Quick Specifications
- Product Model
- JL806A#ABA
- Brand Name
- HPE Networking Instant On
- Product Line
- Instant On
- Product Name
- Instant On 1960 24G 2XGT 2SFP+ Switch
Product Information Tabs
Overview
Optimize network performance for security, surveillance and business-critical monitoring with the HPE Networking Instant On 1960 24-port smart-managed switch. This Instant On switch is tailored for growing businesses that need reliable, high-throughput connectivity without complex management overhead. With 24 Gigabit Ethernet ports plus 2x 10GBase-T and 2x SFP+ uplinks, the JL806A#ABA handles high-density camera feeds, NVR traffic and data aggregation with room to scale.
IT teams benefit from guided setup via the Instant On mobile app or cloud web portal, hybrid stacking of up to four 1960 switches, and centralized management under a single IP — reducing deployment time and simplifying firmware updates. Built-in Layer 2+ features and access controls protect critical surveillance and monitoring streams while QoS and link aggregation ensure smooth delivery of voice and video. The compact, rack-mountable design and industry-leading limited lifetime warranty make it a practical core or distribution switch for retail, education, hospitality and security integrators. Upgrade your network backbone with an HPE Instant On 1960 for resilient, easy-to-manage connectivity—ideal for CCTV, access control and enterprise monitoring deployments.
Features
- Simplified management from any device with Instant On mobile app or cloud portal, reducing IT time and enabling remote monitoring
- High-performance switching for bandwidth-heavy applications: 24x 1G ports plus 2x 10GBase-T and 2x SFP+ uplinks to support surveillance, security appliances, and VoIP
- Stackable up to four units to create a single managed logical switch, simplifying expansion and minimizing configuration overhead
- Built-in Layer 2+ security and access controls (802.1x, DDoS protection) to protect sensitive data and ensure reliable monitoring and surveillance traffic
- Rack-ready, low-profile design with lifetime limited warranty for dependable deployment in branch offices, retail, or CCTV/recording rooms
| General Information | |
|---|---|
| Brand Name | HPE Networking Instant On |
| Manufacturer | HPE Networking Instant On |
| Product Line | Instant On |
| Product Name | Instant On 1960 24G 2XGT 2SFP+ Switch |
| Product Type | Switch |
| Product Model | JL806A#ABA |
| Product Series | 1960 |
| Manufacturer Part Number | JL806A#ABA |
| Technical Information | |
| Power Consumption | 60W, 80W |
| I/O Expansions | |
| Shared SFP Slot | Yes |
| Number of SFP+ Slots | 2 |
| Interfaces/Ports | |
| Uplink Port | Yes |
| Total Number of Network Ports | 24 |
| Network & Communication | |
| Ethernet Technology | 1 Gigabit Ethernet |
| Networking Standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.1x, IEEE 802.2af, IEEE 802.2at, IEEE 802.2bt, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Physical Characteristics | |
| Depth | 13.8" |
| Width | 17.42" |
| Height | 1.73" |
| Weight | 8.7lb |
| Power Description | |
| Frequency | 50 Hz, 60 Hz |
| Power Source | Internal Power Supply Unit |
| Input Voltage | 100-127V AC, 200-240V AC |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Features | Allows administrators to add, modify, delete and transfer management accounts and passwords for secure access to Instant On cloud management solution, Allows the switch to be directly connected to a network, enabling plug-and-play operation, Allows users to set the locator LED on a specific switch to either turn on, blink, or turn off, simplifies troubleshooting by making it easy to locate a particular switch within a rack of similar switches, Enables automatic configuration and formation of the stack based on recommendations from the cloud portal, Encrypts and otherwise protects management sessions through HTTP Secure (HTTPS), which prevents snooping of sensitive management information, For management of individual switches, the intuitive Web GUI makes management simple, even for nontechnical users, supports up to five (5) HTTP and HTTP Secure (HTTPS) sessions, Hybrid stacking helps to right-size the deployment by allowing a combination of aggregation and access switches to meet the needs of the environment, Provides notification of the latest firmware with the ability to schedule updates at preferred times through the Instant On mobile app and cloud-based web portal, Simplifies administration of multiple devices through creation of a single logical managed unit with up to (4) four Instant On 1960 switches in a ring or chain topology, using affordable Cat 6A, long-distance fiber, or localized DAC cables, The cloud-hosted web interface and mobile app make it easy to manage networks with Instant On APs and switches |
| Environmental Certification | UL |
