HPE JL809A#ABA Instant On Swtich Series 1960 48-Port Gb Smart-Managed Layer 2+ Ethernet Switch with PoE, 48x 1G, 2x 10GBase-T, 2x SFP+, 40x CL4, 8x CL6 PoE 600W, Stackable
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

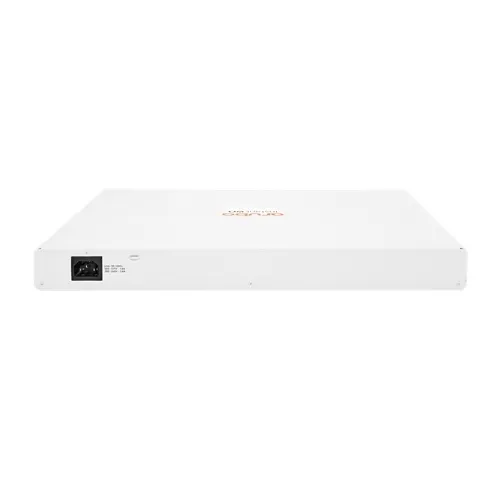

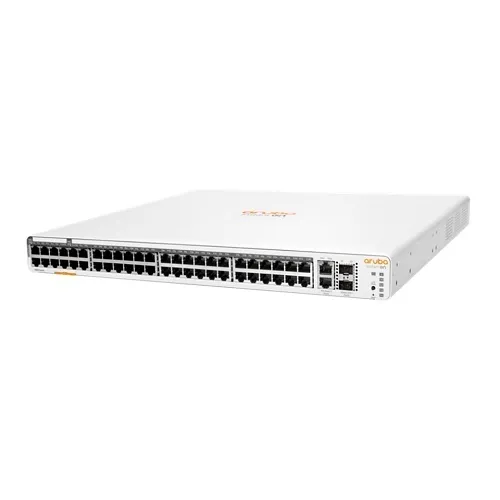

Image of 3
Key Features
- Simplify network growth with stackable Layer 2+ management — manage up to four 1960 switches as a single logical unit to reduce administration time.
- Deliver reliable power to edge devices with a 600W PoE budget (40x Class4, 8x Class6) to run Wi‑Fi APs, IP cameras, VoIP phones and IoT sensors without separate power supplies.
- Achieve high-performance aggregation and uplink flexibility with 2x 10GBase‑T and 2x SFP+ ports for fast links to cores, NVRs or data centers.
- Fast, secure setup and monitoring via the Instant On mobile app and cloud web portal — guided onboarding, scheduled firmware updates and HTTPS‑protected management.
- Built for SMBs and branch offices: front-facing ports/LEDs, rack-mountable design, and built‑in security features to help protect surveillance and monitoring traffic.
Quick Specifications
- Product Model
- JL809A#ABA
- Brand Name
- HPE Networking Instant On
- Product Line
- Instant On
- Product Name
- Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch
Product Information Tabs
Overview
Optimize your small or growing network with the HPE Networking Instant On 1960 48‑port Gb PoE network switch — designed to simplify deployment while delivering the performance and reliability businesses need. This smart‑managed, stackable Layer 2+ switch provides a 600W PoE budget across 48 ports (40x Class4, 8x Class6) to power access points, IP cameras, VoIP phones and other security and IoT devices without extra power infrastructure. With 48x 1G ports plus 2x 10GBase‑T and 2x SFP+ uplinks, the 1960 lets you build high‑speed aggregation links to NVRs, core switches or cloud gateways for uninterrupted surveillance and monitoring. The Instant On mobile app and cloud web portal offer guided setup, remote monitoring, scheduled firmware updates and HTTPS‑secured management — reducing the need for specialist IT staff. Rack‑friendly, front‑facing ports and built‑in DDoS/ access protections make it a practical choice for branch offices, retail, education and security deployments. Deploy the HPE Instant On 1960 to consolidate switching, PoE power and security camera/monitoring traffic — order now to streamline installation and scale confidently.
Features
- Simplify network growth with stackable Layer 2+ management — manage up to four 1960 switches as a single logical unit to reduce administration time.
- Deliver reliable power to edge devices with a 600W PoE budget (40x Class4, 8x Class6) to run Wi‑Fi APs, IP cameras, VoIP phones and IoT sensors without separate power supplies.
- Achieve high-performance aggregation and uplink flexibility with 2x 10GBase‑T and 2x SFP+ ports for fast links to cores, NVRs or data centers.
- Fast, secure setup and monitoring via the Instant On mobile app and cloud web portal — guided onboarding, scheduled firmware updates and HTTPS‑protected management.
- Built for SMBs and branch offices: front-facing ports/LEDs, rack-mountable design, and built‑in security features to help protect surveillance and monitoring traffic.
| General Information | |
|---|---|
| Brand Name | HPE Networking Instant On |
| Manufacturer | HPE Networking Instant On |
| Product Line | Instant On |
| Product Name | Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch |
| Product Type | Switch |
| Product Model | JL809A#ABA |
| Product Series | 1960 |
| Manufacturer Part Number | JL809A#ABA |
| Technical Information | |
| Power Consumption | 760W, 790W |
| I/O Expansions | |
| Shared SFP Slot | Yes |
| Number of SFP+ Slots | 2 |
| Interfaces/Ports | |
| Uplink Port | Yes |
| Total Number of Network Ports | 48 |
| Network & Communication | |
| Ethernet Technology | 1 Gigabit Ethernet |
| Networking Standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.1x, IEEE 802.2af, IEEE 802.2at, IEEE 802.2bt, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Physical Characteristics | |
| Depth | 15.85" |
| Width | 17.42" |
| Height | 1.73" |
| Weight | 10.8lb |
| Power Description | |
| Frequency | 50 Hz, 60 Hz |
| PoE Budget | 600W |
| Power Source | Internal Power Supply Unit |
| Input Voltage | 100-127V AC, 200-240V AC |
| PoE (RJ-45) Port | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Features | Allows administrators to add, modify, delete and transfer management accounts and passwords for secure access to Instant On cloud management solution, Allows the switch to be directly connected to a network, enabling plug-and-play operation, Allows users to set the locator LED on a specific switch to either turn on, blink, or turn off, simplifies troubleshooting by making it easy to locate a particular switch within a rack of similar switches, Enables automatic configuration and formation of the stack based on recommendations from the cloud portal, Encrypts and otherwise protects management sessions through HTTP Secure (HTTPS), which prevents snooping of sensitive management information, For management of individual switches, the intuitive Web GUI makes management simple, even for nontechnical users, supports up to five (5) HTTP and HTTP Secure (HTTPS) sessions, Hybrid stacking helps to right-size the deployment by allowing a combination of aggregation and access switches to meet the needs of the environment, Provides notification of the latest firmware with the ability to schedule updates at preferred times through the Instant On mobile app and cloud-based web portal, Simplifies administration of multiple devices through creation of a single logical managed unit with up to (4) four Instant On 1960 switches in a ring or chain topology, using affordable Cat 6A, long-distance fiber, or localized DAC cables, The cloud-hosted web interface and mobile app make it easy to manage networks with Instant On APs and switches |
| Environmental Certification | UL |
