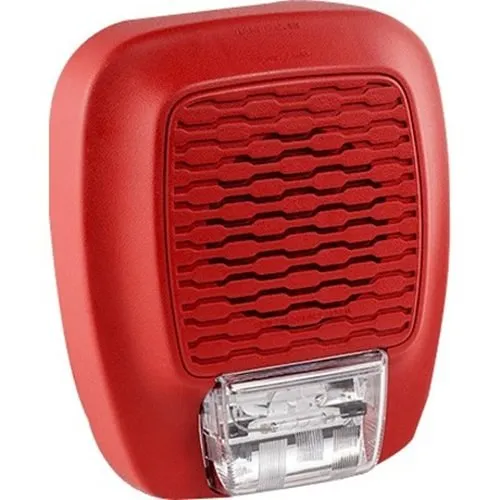

Potter LFHS-110R LFHS Series Low Frequency Horn Strobe, 110Cd, 24VDC, Red
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 2
Key Features
- Delivers a low-frequency 520 Hz horn with a 110Cd strobe for reliable audible and visual notification in sleeping areas and high-risk occupancies
- Super-Slide® mounting plate and tamper-resistant locking mechanism speed installation and allow easy supervision testing with no visible screws
- Checkmate® Instant Voltage Verification simplifies commissioning by letting installers confirm voltage drop on-site against blueprints
- Jumper-selectable loud/normal dBA and temporal pattern compatibility for flexible integration with fire alarm panels, monitoring and security systems
- UL 464 / UL 1971 listings and a 5-year warranty provide long-term reliability for fire protection and security applications
Quick Specifications
- Product Model
- LFHS-110R
- Brand Name
- Potter Electric Signal, LLC
- Product Name
- LFHS Series Low Frequency Horn/Strobe
- Product Type
- Horn Strobe
Explore the details
Product information
LFHS-110R
Overview
Protect occupants and streamline installation with the Potter LFHS-110R LFHS Series Low Frequency Horn Strobe. This combined audible/visual notification appliance is designed for dependable fire protection and security monitoring in commercial, educational and residential applications. The low-frequency 520 Hz square-wave horn (temporal 3) improves audibility in sleeping areas and high-risk occupancies, while the 110 candela strobe provides clear, code-compliant visual notification. Powered by 24VDC and offering jumper-selectable loud/normal dBA plus temporal-4 synchronization when used with compatible panels or modules, the LFHS-110R adapts to a wide range of system designs. Installer-focused features — including the Super-Slide® metal mounting plate, tamper-resistant locking, and Checkmate® Instant Voltage Verification — reduce labor and speed commissioning on large projects. ANSI/UL 464 and UL 1971 listings, indoor box/bracket/wall mount versatility and a 5-year warranty make this Potter horn/strobe a durable choice for fire alarm, security and surveillance integrations. Specify the LFHS-110R for reliable, code-compliant notification — contact your distributor to confirm compatibility and order.
Features
- Delivers a low-frequency 520 Hz horn with a 110Cd strobe for reliable audible and visual notification in sleeping areas and high-risk occupancies
- Super-Slide® mounting plate and tamper-resistant locking mechanism speed installation and allow easy supervision testing with no visible screws
- Checkmate® Instant Voltage Verification simplifies commissioning by letting installers confirm voltage drop on-site against blueprints
- Jumper-selectable loud/normal dBA and temporal pattern compatibility for flexible integration with fire alarm panels, monitoring and security systems
- UL 464 / UL 1971 listings and a 5-year warranty provide long-term reliability for fire protection and security applications
| General Information | |
|---|---|
| Brand Name | Potter Electric Signal, LLC |
| Manufacturer | Potter Electric Signal, LLC |
| Product Name | LFHS Series Low Frequency Horn/Strobe |
| Product Type | Horn Strobe |
| Product Model | LFHS-110R |
| Manufacturer Part Number | LFHS-110R |
| Technical Information | |
| Alarm Type | Audible, Visual |
| Application/Usage | Fire Protection System |
| Environmental Conditions | |
| Sound Emission | 82 dB |
| Physical Characteristics | |
| Color | Red |
| Depth | 2" |
| Width | 5.5" |
| Height | 6.5" |
| Lens Color | Clear |
| Form Factor | Box Mount, Bracket Mount, Wall Mount |
| Power Description | |
| Power Source | DC |
| Input Voltage | 24V DC |
| Product Information | |
| Mount Type | Box Mount, Bracket Mount, Wall Mount |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
