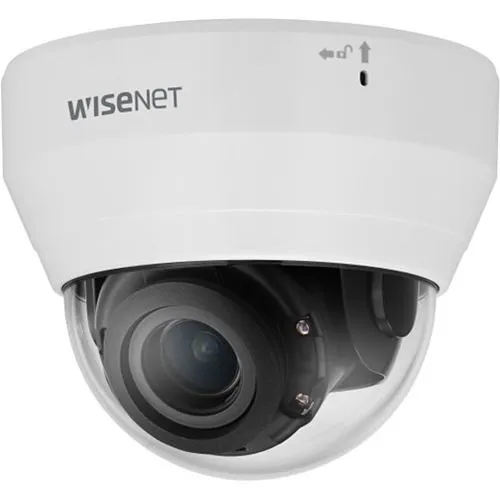

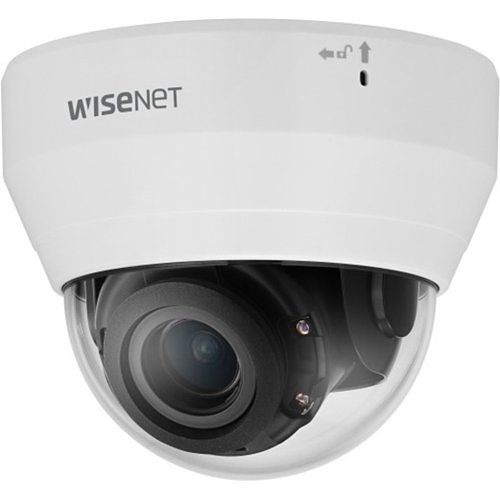

Hanwha LND-6022R L-Series 2MP IR Dome Camera, 4mm Fixed Lens, White

SKU: LND-6022R Hanwha Vision
Wisenet LND-6022R 2 Megapixel Network Camera - Dome
Product images for Hanwha LND-6022R L-Series 2MP IR Dome Camera, 4mm Fixed Lens, White. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Reliable 24/7 surveillance performance with 2MP resolution and 4mm fixed lens for clear identification in indoor environments
  • Built-in IR illumination (up to 20 m / 65 ft) and 120dB WDR for consistent image quality in low light and high-contrast scenes
  • PoE support simplifies installation and reduces wiring costs for fast deployment in offices, retail and commercial sites
  • WiseStream II and H.264 compression lower bandwidth and storage needs while preserving critical detail for long-term monitoring
  • Onboard microSD slot (up to 32GB) and motion/tamper detection enable local recording and proactive event alerts
  • NDAA-compliant Hanwha Vision design for secure, enterprise-ready deployments and easy integration with VMS platforms

Quick Specifications

Product Model
LND-6022R
Brand Name
Hanwha Vision
Product Name
2MP IR Dome Camera
Product Type
Dome Camera
View Full Technical Specifications

Explore the details

Product information

LND-6022R

Overview

Optimize indoor security and operational monitoring with the Hanwha Vision LND-6022R L-Series 2MP IR dome camera. Designed for businesses that need reliable, cost-effective surveillance, this compact dome delivers crisp 1080p video at 30 fps using a 4 mm fixed lens and advanced 120dB WDR to handle bright windows and dim interiors. Integrated IR LEDs extend night visibility up to 20 meters, ensuring round-the-clock coverage for retail floors, offices, elevators and corridors.

Installation is simple: Power over Ethernet (PoE) provides data and power over a single cable to speed deployment and reduce infrastructure expense. WiseStream II alongside H.264 compression lowers network bandwidth and storage costs without sacrificing image detail, and onboard microSD recording plus motion and tamper detection provide resilient local capture and rapid incident review. NDAA compliance and standard ONVIF connectivity make this Hanwha Vision dome camera a secure, integratable choice for professional security systems.

For reliable indoor surveillance and streamlined monitoring, specify the LND-6022R for your next security project or contact us to discuss volume deployment options.

Features

  • Reliable 24/7 surveillance performance with 2MP resolution and 4mm fixed lens for clear identification in indoor environments
  • Built-in IR illumination (up to 20 m / 65 ft) and 120dB WDR for consistent image quality in low light and high-contrast scenes
  • PoE support simplifies installation and reduces wiring costs for fast deployment in offices, retail and commercial sites
  • WiseStream II and H.264 compression lower bandwidth and storage needs while preserving critical detail for long-term monitoring
  • Onboard microSD slot (up to 32GB) and motion/tamper detection enable local recording and proactive event alerts
  • NDAA-compliant Hanwha Vision design for secure, enterprise-ready deployments and easy integration with VMS platforms
42 of 42 specifications
Technical specifications for Hanwha LND-6022R L-Series 2MP IR Dome Camera, 4mm Fixed Lens, White
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 2MP IR Dome Camera
Product Type Dome Camera
Product Model LND-6022R
Product Series L
Manufacturer Part Number LND-6022R
Technical Information
Lens Type Fixed Focus
Aspect Ratio 16:9
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, MJPEG
Maximum Aperture f/2
Maximum Frame Rate 30fps
Wide Dynamic Range Yes
Minimum Focal Length 4.00mm
Connectivity Technology Wired
Field of View (Vertical) 45.60°
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Night Vision Distance 65.62'
Certifications
NDAA Compliant Yes
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 90% RH
Maximum Operating Temperature 131°F
Minimum Operating Temperature 14°F
Exposure
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12,000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 4mm
Maximum Focal Length 4.00mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Height 3.40"
Weight 0.60lb
Form Factor Dome
Product Information
Diameter 4.33"
Mount Type Box Mount
Product Replacements & Other Alternatives
Model Number Replaces SND-L6013R
Storage
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features 2 MP (1920 x 1080) resolution, 30fps at all resolutions (H.264), Built-in 4mm fixed lens, Day and Night (ICR), WDR (120dB), H.264, MJPEG codec supported, Multiple streaming, Hallway View, WiseStream II support, IR viewable length 20m, Micro SD/SDHC memory slot (Max. 32GB), PoE, Tampering, Motion detection, White camera body
Indoor/Outdoor Indoor
