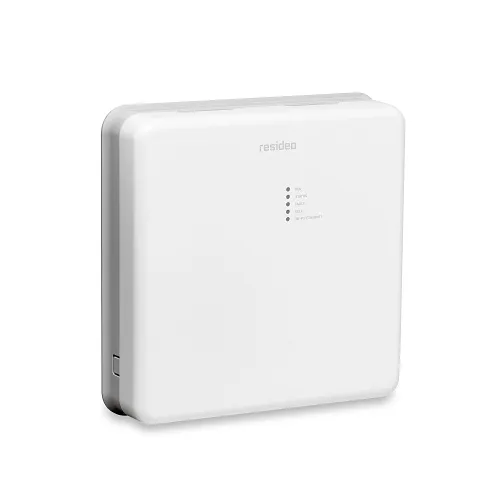

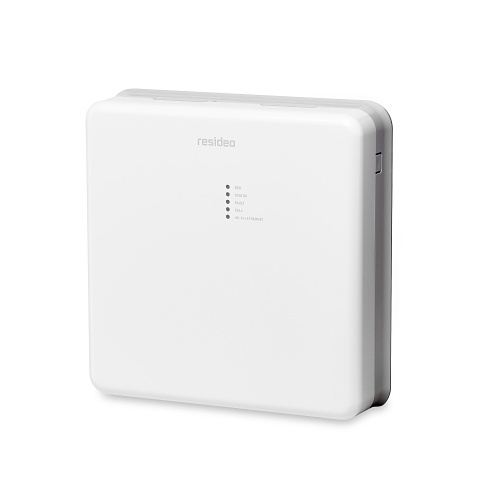

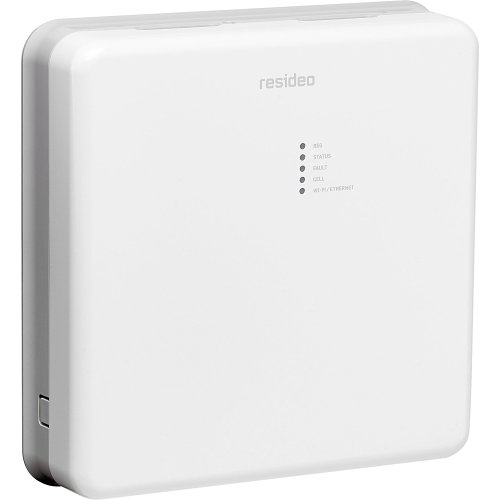

Resideo LTEM-PA Advanced Modular Communicator, AT&T, (Replaces VISTAGSMCN4G)
Image of 4
Key Features
- Ensure uninterrupted security monitoring with LTE CAT‑M1 cellular on the AT&T network for stronger in‑building and underground signal performance
- Dual-path reporting (Ethernet or Wi‑Fi with optional module, plus cellular backup) for reliable AlarmNet delivery and central station resiliency
- Seamless integration with Resideo VISTA and many third‑party panels via ECP/Bus for faster installs and fewer return trips
- Remote Services support for technicians and end users to upload/download panel data and manage systems offsite
- Compact, professional grade communicator powered by included 9V DC adapter for simple wiring and dependable operation
Quick Specifications
- Brand Name
- Resideo
- Manufacturer
- Resideo
- Product Line
- VISTA
- Product Name
- LTEM-PA Advanced Modular Communicator (AT&T)
Product Information Tabs
Overview
Ensure uninterrupted alarm reporting and remote access for commercial and residential installs with the Resideo LTEM-PA advanced modular alarm communicator. Built for reliable security monitoring, this AT&T LTE CAT‑M1 communicator delivers stronger signal strength and greater power efficiency than legacy cellular options, improving performance inside buildings and underground. The LTEM-PA connects to AlarmNet to forward alarms and status messages to your central monitoring station while supporting Ethernet or Wi‑Fi (Wi‑Fi via optional PROWIFIZW/PROWIFI module) plus cellular backup for true reporting redundancy.
Designed for professional installs, the LTEM-PA supports ECP and Bus connections to VISTA and compatible non‑Resideo panels, allows remote upload/download of panel data, and enables Remote Services for convenient remote diagnostics and configuration. Powered by the included 9V DC adapter and ETL/UL certified, it meets industry standards for security and monitoring. Ideal for alarm dealers, integrators and facility managers who need dependable surveillance communications and simplified maintenance. Order the Resideo LTEM-PA for your next VISTA or compatible panel installation to upgrade connectivity and reduce false alarms.
Features
- Ensure uninterrupted security monitoring with LTE CAT‑M1 cellular on the AT&T network for stronger in‑building and underground signal performance
- Dual-path reporting (Ethernet or Wi‑Fi with optional module, plus cellular backup) for reliable AlarmNet delivery and central station resiliency
- Seamless integration with Resideo VISTA and many third‑party panels via ECP/Bus for faster installs and fewer return trips
- Remote Services support for technicians and end users to upload/download panel data and manage systems offsite
- Compact, professional grade communicator powered by included 9V DC adapter for simple wiring and dependable operation
| General Information | |
|---|---|
| Brand Name | Resideo |
| Manufacturer | Resideo |
| Product Line | VISTA |
| Product Name | LTEM-PA Advanced Modular Communicator (AT&T) |
| Product Type | Burglar Alarm Communicator |
| Product Model | LTEM-P |
| Product Series | VISTA |
| Manufacturer Part Number | LTEM-PA |
| Technical Information | |
| Z-Wave | Yes |
| Application/Usage | Internet Communications, Radio Communications |
| Cellular Generation | 4G LTE |
| Connectivity Technology | Wireless |
| Network & Communication | |
| Ethernet | Yes |
| Communication Technology | Internet, Radio |
| Others | |
| Model Number Replaces | 7845I-GSM, GSMX4GP, IGSMV, LTE-IA, VISTAGSMCN4G |
| Physical Characteristics | |
| Color | White |
| Depth | 9.1" |
| Width | 2.2" |
| Height | 9.1" |
| Weight | 1.54lb |
| Power Description | |
| Power Source | 9V DC (2.5 A from 102 to 132V AC) 60 Hz, 0.6 A Power Adapter |
| Input Voltage | 9V DC |
| Product Information | |
| Length | 9.1" |
| Installation Type | Professional Install |
| Operating Frequency | 1700 MHz, 1800 MHz, 700 MHz |
| Miscellaneous | |
| Features | Allows uploading and downloading of VISTA control panel data, Multi-function Test switch used to generate test messages, register the communicator with AlarmNet, enter Pairing mode (used during WiFi module installation), reboot the communicator, and to reset the communicator to factory default settings., Power supplied by a 9VDC Power Adapter (included), Quick connection to both Resideo control panels (ex. VISTA controls) and compatible non-Resideo (non-VISTA) control panels, Reports alarms and status messages via the Internet, Reports messages via cell as backup to Internet reporting (provided that the Communication Path includes cell), Supports both ECP and Bus connections to compatible control panels, Supports connection to the Internet via Ethernet cable or WiFi (WiFi requires installation of PROWIFIZW or PROWIFI module) – only one method can be used, Ethernet or WiFi, not both, Supports dynamic or static IP addressing, and installs behind firewalls without compromising network security (provided that the Communication Path includes IP), Supports Remote Services feature, which allows the end user to access their security system from their computer via a website. Availability of this service is controlled by the dealer via the web-based programming tool on the AlarmNet 360 website |
| Compatibility | Interlogix NX-4, NX-6, NX-8, NX-8E DSC PC1616 , PC1832, PC1864, Total Connect 2.0, VISTA-128BP, VISTA-128BPE, VISTA-128BPT, VISTA-128BP, VISTA-128BPE, VISTA-128BPT, VISTA-15P, VISTA-20P, VISTA-21iP w/internal communicator, VISTA-250BP, VISTA-250BPE, VISTA-250BPT, VISTA-250BP, VISTA-250BPE, VISTA-250BPT |
| Package Contents | LTEM-PA Advanced Modular Communicator (AT&T) 9VDC Power Adapter |
| Country of Origin | MX |
| Certifications & Standards | ETL Listed, UL1023 Household Burglar-Alarm System Units, UL1610 Central-Station Burglar-Alarm Units, UL365 Police Station connected Burglar Alarm Units and Systems, ULCS304 Standard for Control units, Accessories and Receiving Equipment for Intrusion Alarm System |
