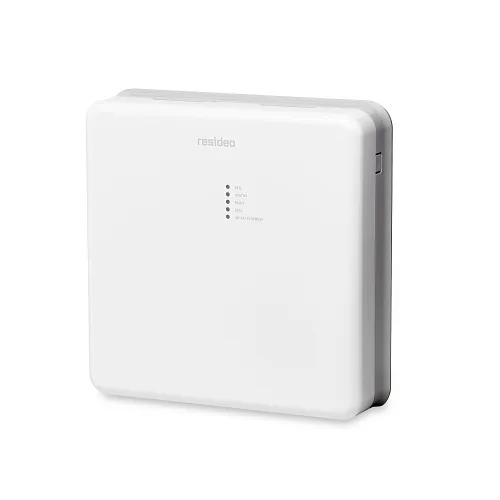

Resideo LTEM-PV Advanced Modular Communicator, Verizon
Image of 5
Key Features
- Reliable Verizon LTE-M cellular path for continuous alarm reporting and superior indoor/underground reception
- Automatic Ethernet or Wi‑Fi (with optional module) IP reporting with cellular failover to ensure uninterrupted monitoring
- Seamless integration with Resideo VISTA and many third‑party panels for fast installation and minimal system changes
- Remote Services and AlarmNet support for secure remote programming, firmware updates and central station delivery
- Low‑power, modular design with included 9V DC power adapter for simplified deployment and professional installs
Quick Specifications
- Product Model
- LTEM-P
- Brand Name
- Resideo
- Product Line
- VISTA
- Product Name
- LTEM-PV Advanced Modular Communicator (VERIZON)
Product Information Tabs
Overview
Keep commercial and residential security systems online with the Resideo LTEM-PV Advanced Modular Communicator. This LTE alarm communicator delivers dependable Verizon LTE-M cellular connectivity and IP reporting (Ethernet or optional Wi‑Fi) to ensure alarms and status updates reach AlarmNet and your central monitoring station without interruption. Built for integrators and security professionals, the LTEM-PV supports ECP and bus connections to Resideo VISTA panels and many third‑party control panels, enabling quick installs and minimizing on‑site labor. Key specifications include LTE CAT-M1 cellular communications for improved in‑building and underground performance, support for dynamic or static IP addressing, and a 9V DC power adapter included for easy power provisioning. The communicator also enables Remote Services access for secure remote diagnostics, uploading/downloading of VISTA panel data, and convenient system management. ETL/UL listings and modular optional plugins (Wi‑Fi/Z‑Wave, LTE CAT‑1, Dialer Capture) let you scale features to meet monitoring and automation needs. Ideal for alarm dealers, integrators, and monitoring centers, the LTEM-PV provides a resilient, professional-grade path for surveillance and alarm reporting. Contact your distributor or order now to upgrade monitoring reliability.
Features
- Reliable Verizon LTE-M cellular path for continuous alarm reporting and superior indoor/underground reception
- Automatic Ethernet or Wi‑Fi (with optional module) IP reporting with cellular failover to ensure uninterrupted monitoring
- Seamless integration with Resideo VISTA and many third‑party panels for fast installation and minimal system changes
- Remote Services and AlarmNet support for secure remote programming, firmware updates and central station delivery
- Low‑power, modular design with included 9V DC power adapter for simplified deployment and professional installs
| General Information | |
|---|---|
| Brand Name | Resideo |
| Manufacturer | Resideo |
| Product Line | VISTA |
| Product Name | LTEM-PV Advanced Modular Communicator (VERIZON) |
| Product Type | Burglar Alarm Communicator |
| Product Model | LTEM-P |
| Product Series | VISTA |
| Manufacturer Part Number | LTEM-PV |
| Technical Information | |
| Z-Wave | Yes |
| Application/Usage | Radio Communications |
| Cellular Generation | 4G LTE |
| Connectivity Technology | Wireless |
| Network & Communication | |
| Ethernet | Yes |
| Communication Technology | LTE CAT1 |
| Others | |
| Model Number Replaces | 7845I-GSM, LTE-IV |
| Physical Characteristics | |
| Color | White |
| Depth | 9.1" |
| Width | 2.2" |
| Height | 9.1" |
| Weight | 1.54lb |
| Power Description | |
| Power Source | 9V DC (2.5 A from 102 to 132V AC) 60 Hz, 0.6 A Power Adapter |
| Input Voltage | 9V DC |
| Product Information | |
| Length | 9.1" |
| Installation Type | Professional Install |
| Operating Frequency | 1700 MHz, 700 MHz |
| Miscellaneous | |
| Features | Allows uploading and downloading of VISTA control panel data, Multi-function Test switch used to generate test messages, register the communicator with AlarmNet, enter Pairing mode (used during WiFi module installation), reboot the communicator, and to reset the communicator to factory default settings., Power supplied by a 9VDC Power Adapter (included), Quick connection to both Resideo control panels (ex. VISTA controls) and compatible non-Resideo (non-VISTA) control panels, Reports alarms and status messages via the Internet, Reports messages via cell as backup to Internet reporting (provided that the Communication Path includes cell), Supports both ECP and Bus connections to compatible control panels, Supports connection to the Internet via Ethernet cable or WiFi (WiFi requires installation of PROWIFIZW or PROWIFI module) – only one method can be used, Ethernet or WiFi, not both, Supports dynamic or static IP addressing, and installs behind firewalls without compromising network security (provided that the Communication Path includes IP), Supports Remote Services feature, which allows the end user to access their security system from their computer via a website. Availability of this service is controlled by the dealer via the web-based programming tool on the AlarmNet 360 website |
| Compatibility | Interlogix NX-4, NX-6, NX-8, NX-8E DSC PC1616 , PC1832, PC1864, Total Connct 2.0, VISTA-128BP, VISTA-128BPE, VISTA-128BPT, VISTA-128BP, VISTA-128BPE, VISTA-128BPT, VISTA-15P, VISTA-20P, VISTA-21iP w/internal communicator, VISTA-250BP, VISTA-250BPE, VISTA-250BPT, VISTA-250BP, VISTA-250BPE, VISTA-250BPT |
| Package Contents | LTEM-PV Advanced Modular Communicator (VERIZON) 9VDC Power Adapter |
| Country of Origin | MX |
| Certifications & Standards | ETL Listed, UL1023 Household Burglar-Alarm System Units, UL1610 Central-Station Burglar-Alarm Units, UL365 Police Station connected Burglar Alarm Units and Systems, ULCS304 Standard for Control units, Accessories and Receiving Equipment for Intrusion Alarm System |
