Ubiquiti LTU-ROCKET-US 5 GHz PtMP LTU Rocket BaseStation Radio

SKU: LTU-ROCKET-US Ubiquiti
Image of KX-LTUROCKET

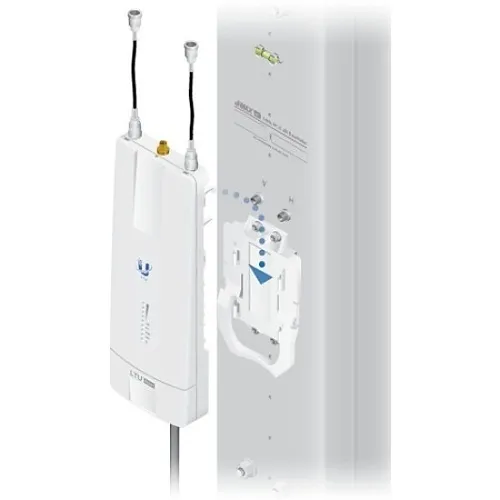

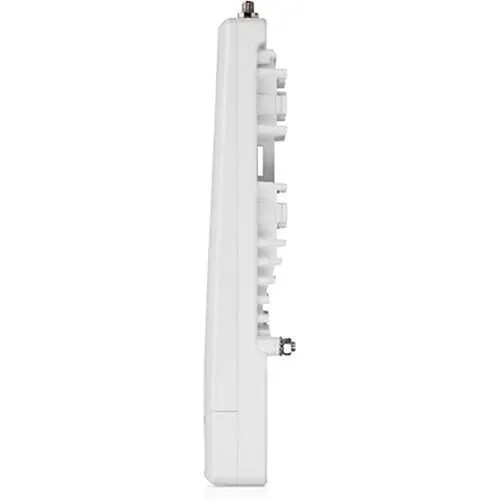

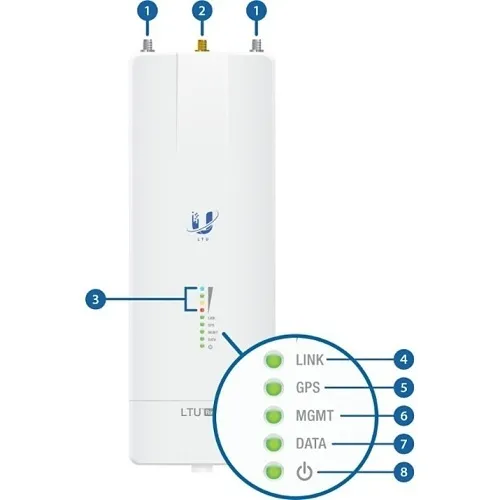

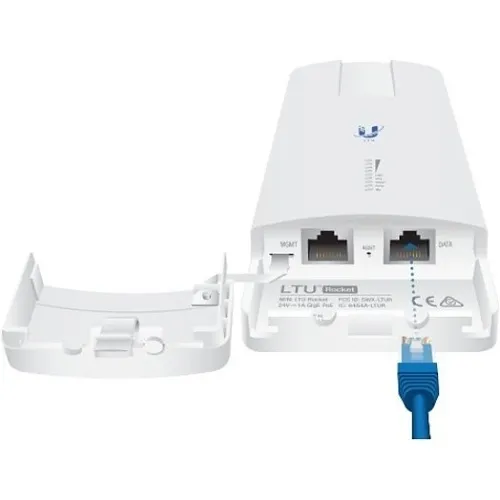

Product images for Ubiquiti LTU-ROCKET-US 5 GHz PtMP LTU Rocket BaseStation Radio. 5 image(s) available. Click on image to view full size.

Key Features

  • Maximize network capacity and reliability for wireless ISPs and enterprise links with 600+ Mbps aggregated throughput.
  • Maintain clear links in congested RF environments using LTU technology that processes over 2 million packets per second.
  • Extend coverage and support up to 64 clients per AP for surveillance, security, and remote monitoring applications.
  • Simplify deployment with PoE power delivery, pole-mount form factor, and GPS synchronization for coordinated PtMP networks.
  • Flexible TX/RX channel configuration reduces local interference and optimizes backhaul performance for high-density installations.

Quick Specifications

Product Model
LTU-ROCKET-US
Brand Name
Ubiquiti
Product Line
UISP
Product Name
Ubiquiti Networks LTU Rocket 5 GHz LTU BaseStation Radio & PtMP Access Point
View Full Technical Specifications

Product Information Tabs

Overview

Deliver long-range, high-capacity wireless backhaul for ISPs, security integrators, and enterprise monitoring with the Ubiquiti LTU-ROCKET-US 5 GHz LTU Rocket BaseStation Radio. This PtMP base station and access point is engineered to cut through RF noise, enabling stable links for surveillance cameras, remote monitoring systems, and large-scale wireless deployments. Built on Ubiquiti’s LTU platform, it delivers 600+ Mbps of real-world throughput and processes over 2 million packets per second to keep latency low under heavy load. Operating in the 5 GHz band and supporting up to 64 clients per AP, the LTU Rocket is ideal for wireless ISP backhaul, security camera networks, and campus connectivity. Installation is straightforward—power and data travel over a single Gigabit Ethernet cable via the included PoE adapter, while GPS synchronization and independent TX/RX channel tuning help avoid interference and improve coordinated PtMP performance. Choose the LTU-ROCKET-US to future-proof outdoor wireless bridges and surveillance backhaul. Contact us to configure this radio for your security, surveillance or network monitoring deployment.

Features

  • Maximize network capacity and reliability for wireless ISPs and enterprise links with 600+ Mbps aggregated throughput.
  • Maintain clear links in congested RF environments using LTU technology that processes over 2 million packets per second.
  • Extend coverage and support up to 64 clients per AP for surveillance, security, and remote monitoring applications.
  • Simplify deployment with PoE power delivery, pole-mount form factor, and GPS synchronization for coordinated PtMP networks.
  • Flexible TX/RX channel configuration reduces local interference and optimizes backhaul performance for high-density installations.
General Information
Brand Name Ubiquiti
Manufacturer Ubiquiti Inc.
Product Line UISP
Product Name Ubiquiti Networks LTU Rocket 5 GHz LTU BaseStation Radio & PtMP Access Point
Product Type Radio
Product Model LTU-ROCKET-US
Product Series LTU
Manufacturer Part Number LTU-ROCKET-US
Technical Information
MIMO Technology Yes
Power Consumption 25W
Wireless Transmission Speed 600 Mbps
Interfaces/Ports
Number of Network (RJ-45) Ports 1
Network & Communication
Ethernet Technology Gigabit Ethernet
Physical Characteristics
Depth 1.9"
Width 3.2"
Height 9.6"
Weight 16.58oz
Form Factor Pole Mount
Product Information
Mount Type Pole Mount
Tuner
Frequency Band 5GHz
Warranty
Limited Warranty 1-Year
Miscellaneous
Environmentally Friendly Yes
Environmental Certification CE, FCC
