Luma LUM-120-NVR-4CH-2T 120 Series 4-Channel NVR, 4-Port PoE, 2TB, 1 HDD Bay

SKU: LUM-120-NVR-4CH-2T Luma

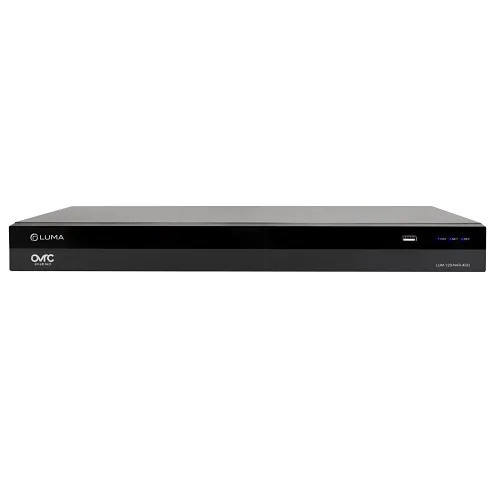

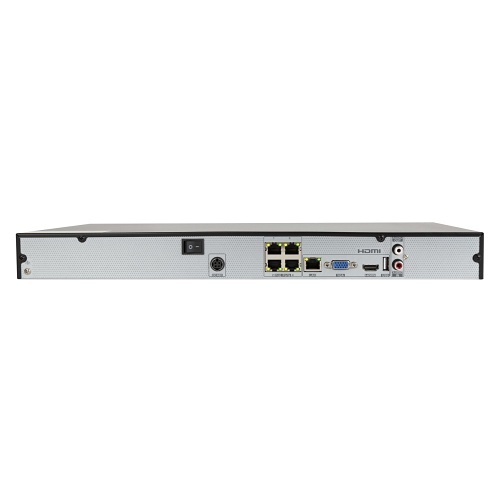

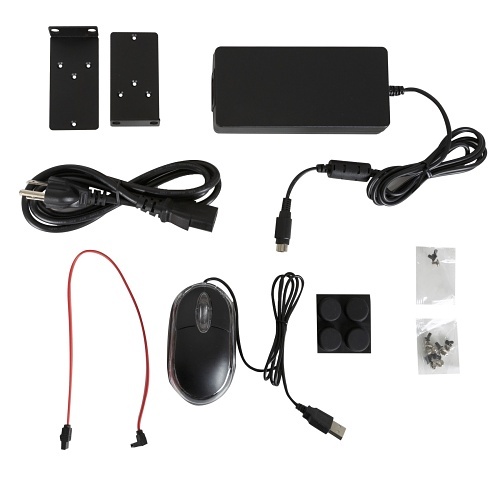

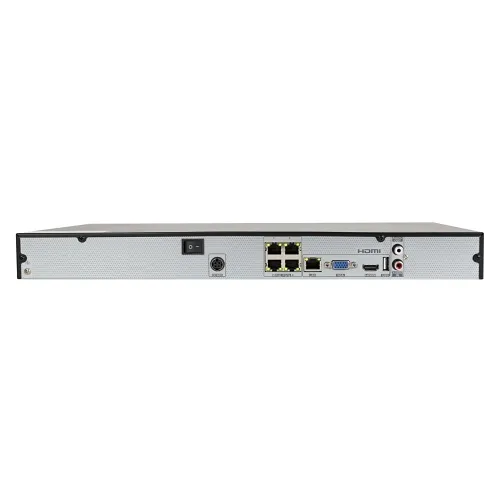

Image of VM-0NVR4CH2T
Product images for Luma LUM-120-NVR-4CH-2T 120 Series 4-Channel NVR, 4-Port PoE, 2TB, 1 HDD Bay. 4 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Simplified, fast deployments with OvrC and Luma View for remote setup, push alerts and streamlined event review
  • Clear, actionable evidence with support for up to 8MP cameras and 4K HDMI output for high-resolution surveillance
  • Built-in 4-port PoE with long-distance Cat6 support (up to 200m) reduces cabling costs and speeds installations
  • Reliable onsite retention with 2TB HDD and continuous recording options to meet business monitoring needs
  • Intelligent analytics and motion detection enable proactive security alerts and fewer false alarms
  • Compact 1U form factor, NDAA-compliant design and Control4 compatibility for easy integration into commercial systems

Quick Specifications

Product Model
LUM-120-NVR-4CH-2T
Brand Name
Luma
Product Line
X20
Product Type
NVR
View Full Technical Specifications

Frequently Bought Together

This Item
Luma LUM-120-NVR-4CH-2T 120 Series 4-Channel NVR, 4-Port PoE, 2TB, 1 HDD Bay

Luma LUM-120-NVR-4CH-2T 120 Series 4-Channel NVR, 4-Port PoE, 2TB, 1 HDD Bay

$621.50

Frequently Bought Together (4 items)

5 items selected

Total: $2,027.86

Explore the details

Product information

LUM-120-NVR-4CH-2T

Overview

Built for small-to-medium commercial installs, the Luma LUM-120-NVR-4CH-2T delivers dependable surveillance and simplified system management. This 120 Series Network Video Recorder from Luma supports up to 8MP cameras and outputs 4K HDMI for crystal-clear playback—helpful when you need reliable evidence or detailed monitoring across retail, office, and property-management sites. With four integrated PoE ports and long-distance PoE over Cat6 (up to 200m), installers save time and materials by powering cameras directly from the recorder. The included 2TB HDD provides ample onsite storage for continuous or event-triggered recording, while intelligent analytics and motion detection reduce false alerts and surface meaningful events. OvrC remote management and the Luma View mobile app let you deploy, configure and receive push notifications quickly—so tech teams can scale systems with minimal onsite visits. NDAA compliance and Control4 compatibility make the unit suitable for modern commercial security deployments. For a compact 1U NVR that balances performance, ease of install and secure monitoring, choose the Luma 120 Series—ideal for business surveillance and proactive security management. Order or contact sales to specify this NVR for your next project.

Features

  • Simplified, fast deployments with OvrC and Luma View for remote setup, push alerts and streamlined event review
  • Clear, actionable evidence with support for up to 8MP cameras and 4K HDMI output for high-resolution surveillance
  • Built-in 4-port PoE with long-distance Cat6 support (up to 200m) reduces cabling costs and speeds installations
  • Reliable onsite retention with 2TB HDD and continuous recording options to meet business monitoring needs
  • Intelligent analytics and motion detection enable proactive security alerts and fewer false alarms
  • Compact 1U form factor, NDAA-compliant design and Control4 compatibility for easy integration into commercial systems
20 of 20 specifications
Technical specifications for Luma LUM-120-NVR-4CH-2T 120 Series 4-Channel NVR, 4-Port PoE, 2TB, 1 HDD Bay
General Information
Brand Name Luma
Product Line X20
Product Type NVR
Product Series 120
Manufacturer Part Number LUM-120-NVR-4CH-2T
Technical Information
OvrC Enabled Yes
Motion Detection Yes
Network Interface 1GB
Power Consumption 10.0000W
Maximum Frame Rate 30.0fps
Number of Channels 4
Certifications
Certifications ETL Listed, CE, FCC
NDAA Compliant Yes
Environmental Conditions
Operating Temperature (T-T) 14-122°F
Physical Characteristics
Dimensions 17.12" x 1.68" x 11.31"
Rack Depth 11.3"
Rack Width 17.1"
Form Factor 1U
Storage
Hard Drive Capacity 2TB
Miscellaneous
Compatibility Control4
