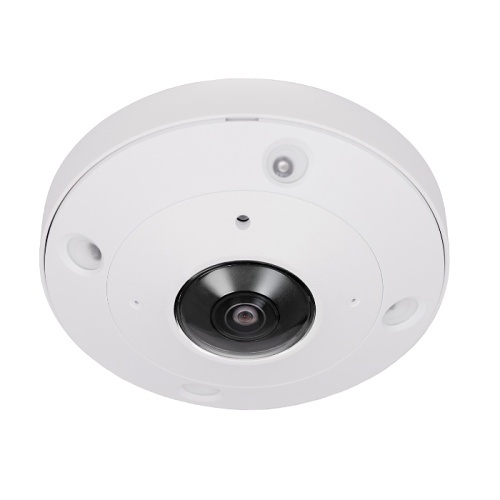

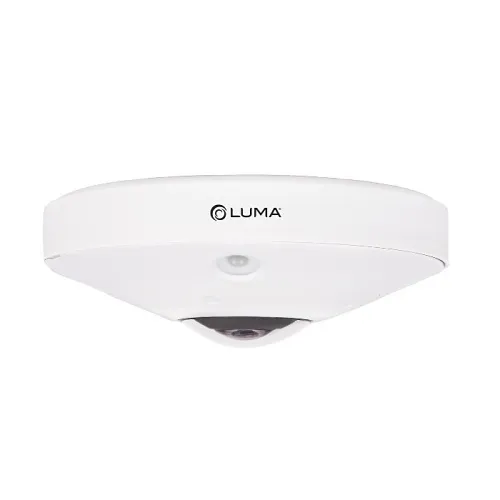

Luma LUM-1220-IP-FE-W 12MP IP Camera Fisheye, White

SKU: LUM-1220-IP-FE-W Luma
Image of VM-1220IPFEW
Product images for Luma LUM-1220-IP-FE-W 12MP IP Camera Fisheye, White. 5 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Capture expansive areas with a single device: 12MP fisheye imaging reduces the number of cameras needed and ensures critical detail is preserved.
  • Simplify deployment and management with native OvrC and ONVIF support for remote setup, NVR compatibility and streamlined monitoring.
  • Reliable outdoor performance: IP67 weatherproofing and IK10 impact resistance protect your investment in harsh environments.
  • Flexible streaming and storage: H.265 video, up to five independent streams, and support for common network protocols enable efficient bandwidth use and integration.
  • Control and integration ready: works with Control4 and popular control systems for manual PTZ-like controls, presets and centralized security workflows.

Quick Specifications

Brand Name
Luma
OvrC Enabled
Yes
Product Type
IP Camera
Manufacturer Part Number
LUM-1220-IP-FE-W
View Full Technical Specifications

Product Information Tabs

Overview

Designed for wide-area security and efficient surveillance, the Luma LUM-1220-IP-FE-W 12MP IP Camera Fisheye delivers panoramic monitoring with exceptional detail. The 12MP sensor and 1.65mm fisheye lens capture high-resolution imagery across large venues—reducing camera count while improving situational awareness. Built for professional installations, this Luma IP camera supports H.265 compression and up to five independent video streams for optimized bandwidth and flexible recording to Luma X20 NVRs or other ONVIF-compliant systems.

Field-ready with IP67 weatherproofing and IK10 impact protection, the unit withstands outdoor conditions and tampering risk. Installers benefit from native OvrC support for remote configuration and firmware updates, plus broad network protocol compatibility for easy integration into enterprise security and monitoring platforms. Control system interoperability (including Control4) enables preset toggling and manual pan/tilt/rotation control for tailored workflows. Ideal for retail, transportation hubs, warehouses and campus security, the Luma LUM-1220-IP-FE-W provides dependable panoramic coverage and simplified management. Contact your sales rep or add to cart to enhance your surveillance footprint today.

Features

  • Capture expansive areas with a single device: 12MP fisheye imaging reduces the number of cameras needed and ensures critical detail is preserved.
  • Simplify deployment and management with native OvrC and ONVIF support for remote setup, NVR compatibility and streamlined monitoring.
  • Reliable outdoor performance: IP67 weatherproofing and IK10 impact resistance protect your investment in harsh environments.
  • Flexible streaming and storage: H.265 video, up to five independent streams, and support for common network protocols enable efficient bandwidth use and integration.
  • Control and integration ready: works with Control4 and popular control systems for manual PTZ-like controls, presets and centralized security workflows.
General Information
Brand Name Luma
OvrC Enabled Yes
Product Type IP Camera
Manufacturer Part Number LUM-1220-IP-FE-W
Supported Network Protocols 802.1x, DDNS, DHCP, FTP, HTTP, HTTP POST, HTTPs, IPv4, IPv6, NTP, P2P, PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP
Technical Information
Aperture f/2.0
Field of View Horizontal
Video Formats H.264, H.265, MJPEG
Motion Detection Yes
Power Consumption 10.5W
Maximum Frame Rate 15fps
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP67
Environmental Conditions
Operating Humidity 95% (Non-condensing)
Operating Temperature (T-T) -22-140°F
Exposure
Minimum Illumination 0 lux, 0.01 lux
Shortest Shutter Speed 1/100000s
Lens
Focus Modes Fixed
Focal Length 1.65mm
Physical Characteristics
Color White
Weight 1.13 lb
Form Factor Fisheye
Product Information
Diameter 5.14"
Miscellaneous
Certifications CE, ETL Listed, FCC, ONVIF Conformance, UKCA
Impact Protection Rating IK10
