Luma LUM-420-IP-TMB 420 Series 4MP Turret IP Outdoor Camera, 2.8-12mm Motorized Lens, Black

SKU: LUM-420-IP-TMB Luma

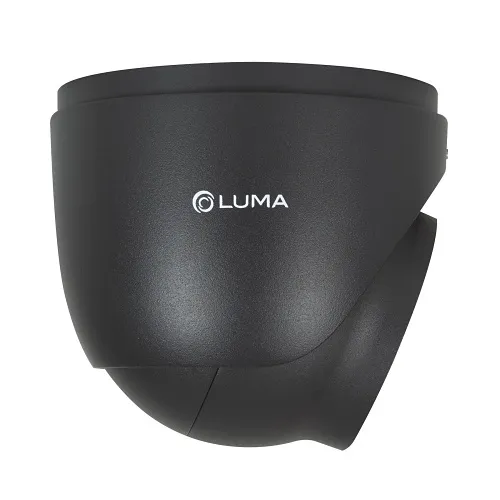

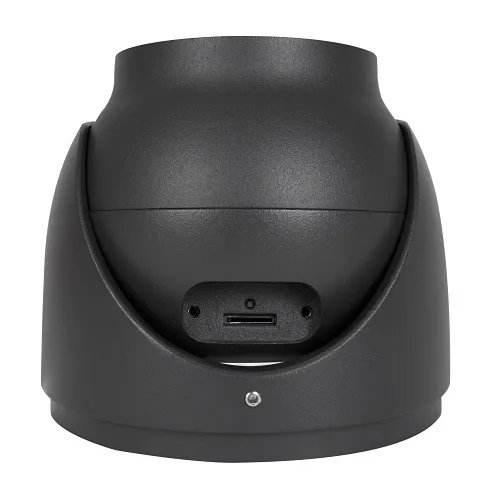

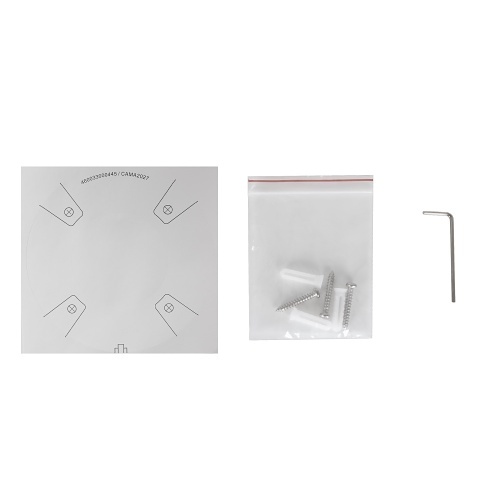

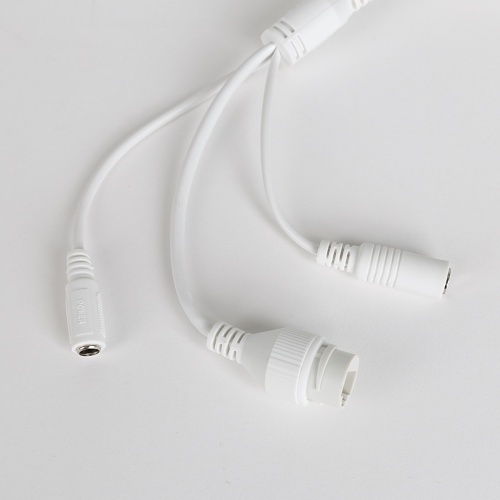

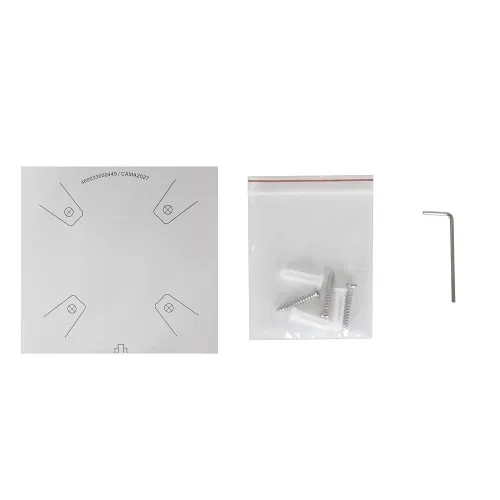

Image of VM-M420IPTMB
Product images for Luma LUM-420-IP-TMB 420 Series 4MP Turret IP Outdoor Camera, 2.8-12mm Motorized Lens, Black. 5 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Quick remote deployment with OvrC — configure and manage cameras without local UI access for faster installs and fewer site visits
  • Clear day/night surveillance using 4MP resolution and Starlight low-light imaging for reliable identification around the clock
  • Flexible coverage with a motorized 2.8–12mm varifocal lens to zoom and frame scenes remotely, reducing the need for physical lens changes
  • Robust outdoor reliability: IP67-rated housing and NDAA compliance ensure dependable, secure operation in harsh environments
  • Efficient bandwidth and storage with H.265 compression and ONVIF compatibility for seamless integration into existing security and monitoring systems

Quick Specifications

Brand Name
Luma
OvrC Enabled
Yes
Product Line
X20
Product Type
IP Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Secure wide-area surveillance with the Luma LUM-420-IP-TMB, a 4MP turret IP outdoor camera designed for fast deployment and dependable monitoring. Ideal for commercial sites, multi-family properties, and high-value residential installations, this Luma turret camera delivers crisp 2K imagery and Starlight low-light performance so you capture usable detail day and night. The motorized 2.8–12mm lens lets integrators remotely adjust field of view on the fly, reducing ladder time and fine-tuning coverage without a site visit. Built for modern networked systems, the camera supports H.265 video compression and ONVIF conformance for efficient storage and easy integration with NVRs and control systems like Control4. OvrC-enabled remote setup and management mean faster installs, remote firmware updates, and fewer support calls — no port forwarding required. With IP67 weatherproofing, NDAA compliance, built-in microphone and analytics-ready features, the Luma 420 Series is a practical choice for scalable security deployments. Add the LUM-420 to your next surveillance project for reliable outdoor monitoring — contact us or add to cart to streamline your installation.

Features

  • Quick remote deployment with OvrC — configure and manage cameras without local UI access for faster installs and fewer site visits
  • Clear day/night surveillance using 4MP resolution and Starlight low-light imaging for reliable identification around the clock
  • Flexible coverage with a motorized 2.8–12mm varifocal lens to zoom and frame scenes remotely, reducing the need for physical lens changes
  • Robust outdoor reliability: IP67-rated housing and NDAA compliance ensure dependable, secure operation in harsh environments
  • Efficient bandwidth and storage with H.265 compression and ONVIF compatibility for seamless integration into existing security and monitoring systems
General Information
Brand Name Luma
OvrC Enabled Yes
Product Line X20
Product Type IP Camera
Product Series 420
Manufacturer Part Number LUM-420-IP-TMB
Technical Information
Aperture f/1.5
Backlight Yes
Lens Type Varifocal
Image Sensor 4MP
Optical Zoom 2.8-12mm
Field of View Horizontal, Vertical
Video Formats H.264, H.265
Motion Detection Yes
Power Consumption 8.5W
Maximum Frame Rate 30fps
Built-in Microphone Yes
Effective Camera Resolution 4MP
Camera
Camera Type Turret
Wide Dynamic Range Yes
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP67
Environmental Conditions
Operating Humidity 95% (Non-condensing)
Operating Temperature (T-T) -22-140°F
Exposure
Minimum Illumination 0 lux
Shortest Shutter Speed 1/100000s
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8-12mm
Memory
Memory Card Supported 256GB
Physical Characteristics
Color Black
Dimensions 111.5mm x 99.6mm
Form Factor Turret
Miscellaneous
Compatibility Control4
Certifications ETL Listed, CE, FCC, NDAA Compliant, ONVIF Conformance
Indoor/Outdoor Outdoor
