Luma LUM-420-IP-TMW 420 Series 4MP Turret IP Outdoor Camera, 2.8-12mm Motorized Lens, White

SKU: LUM-420-IP-TMW Luma
Image of VM-M420IPTMW

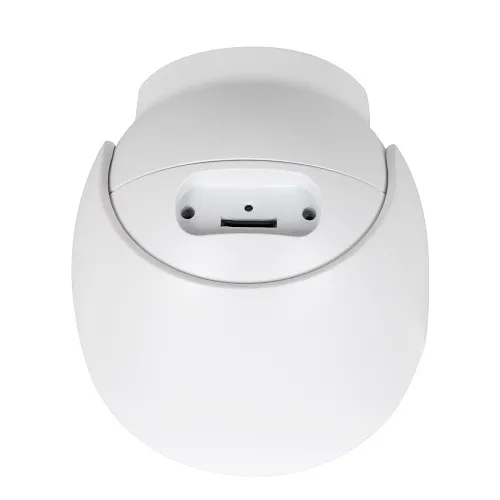

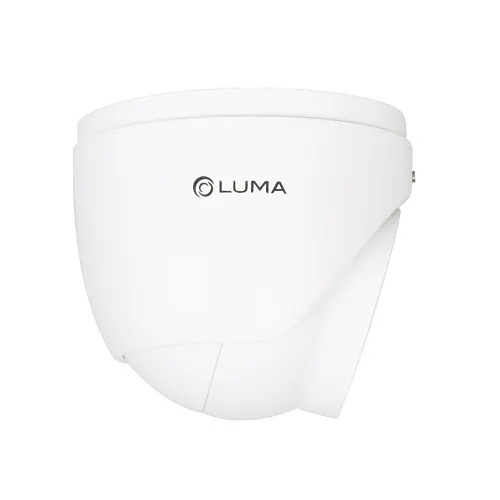

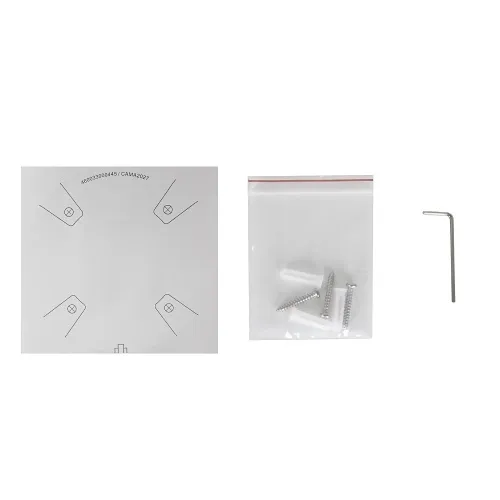

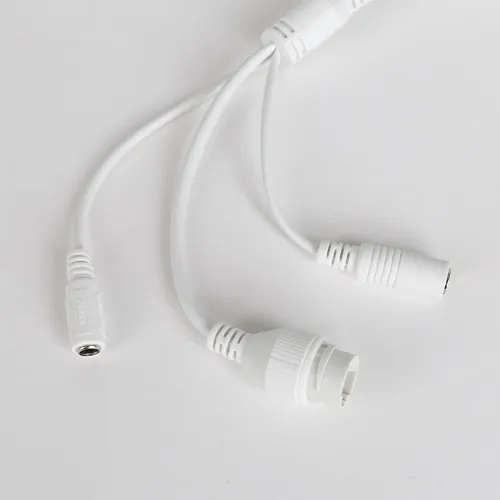

Product images for Luma LUM-420-IP-TMW 420 Series 4MP Turret IP Outdoor Camera, 2.8-12mm Motorized Lens, White. 5 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Deliver clear, actionable surveillance day or night with 4MP resolution and Starlight low-light imaging
  • Simplify deployment and remote management with OvrC setup and hassle-free remote access—no port forwarding
  • Cover variable scenes with a motorized 2.8–12mm varifocal lens for flexible field-of-view and precise framing
  • Durable, NDAA-compliant outdoor design (IP67) reduces maintenance and meets commercial security requirements
  • Integrates with Control4, ONVIF systems and supports H.265 to save bandwidth and storage for long-term monitoring

Quick Specifications

Product Model
LUM-420-IP-TMW
Brand Name
Luma
OvrC Enabled
Yes
Product Line
X20
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Protect your property with reliable, professional surveillance using the Luma LUM-420 IP turret camera. Built for outdoor security and remote monitoring, this Luma 420 Series turret delivers crisp 4MP (2K) video and Starlight night imaging so your team sees important details around the clock. The motorized 2.8–12mm varifocal lens lets integrators and operators remotely zoom and reframe without ladder work, reducing site visits and installation time.

Designed for commercial and residential security projects, the camera supports H.264/H.265 compression to minimize bandwidth and storage costs, and connects via a standard RJ-45 network port for straightforward integration. With OvrC-enabled setup and Control4/ONVIF compatibility, system integration and remote troubleshooting are fast and scalable. The rugged IP67, NDAA-compliant housing stands up to harsh environments and simplifies compliance for government and enterprise installs. Backed by a 3-year limited warranty, the Luma LUM-420 is ideal for perimeter, retail, parking, and facility monitoring. Contact your sales rep or add the LUM-420 to your next surveillance spec to start improving security coverage today.

Features

  • Deliver clear, actionable surveillance day or night with 4MP resolution and Starlight low-light imaging
  • Simplify deployment and remote management with OvrC setup and hassle-free remote access—no port forwarding
  • Cover variable scenes with a motorized 2.8–12mm varifocal lens for flexible field-of-view and precise framing
  • Durable, NDAA-compliant outdoor design (IP67) reduces maintenance and meets commercial security requirements
  • Integrates with Control4, ONVIF systems and supports H.265 to save bandwidth and storage for long-term monitoring
General Information
Brand Name Luma
OvrC Enabled Yes
Product Line X20
Product Type IP Camera
Product Series 420
Manufacturer Part Number LUM-420-IP-TMW
Technical Information
Aperture f/1.5
Backlight Yes
Lens Type Varifocal
Image Sensor 4MP
Optical Zoom 2.8-12mm
Field of View Horizontal, Vertical
Video Formats H.264, H.265
Motion Detection Yes
Power Consumption 8.5W
Maximum Frame Rate 30fps
Built-in Microphone Yes
Effective Camera Resolution 4MP
Camera
Camera Type Turret
Wide Dynamic Range Yes
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP67
Environmental Conditions
Operating Humidity 95% (Non-condensing)
Operating Temperature (T-T) -22-140°F
Exposure
Minimum Illumination 0 lux
Shortest Shutter Speed 1/100000s
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8-12mm
Memory
Memory Card Supported 256GB
Physical Characteristics
Color White
Dimensions 111.5mm x 99.6mm
Form Factor Turret
Miscellaneous
Compatibility Control4
Certifications ETL Listed, CE, FCC, NDAA Compliant, ONVIF Conformance
Indoor/Outdoor Outdoor
