Luma LUM-520-IP-BFW 520 Series 5MP Bullet IP Outdoor Camera, 2.8 Fixed Lens, White

SKU: LUM-520-IP-BFW Luma

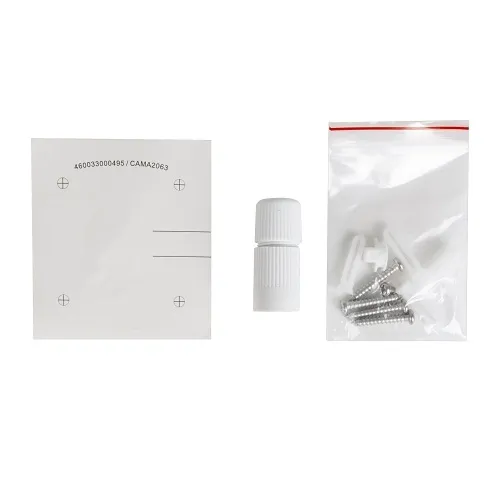

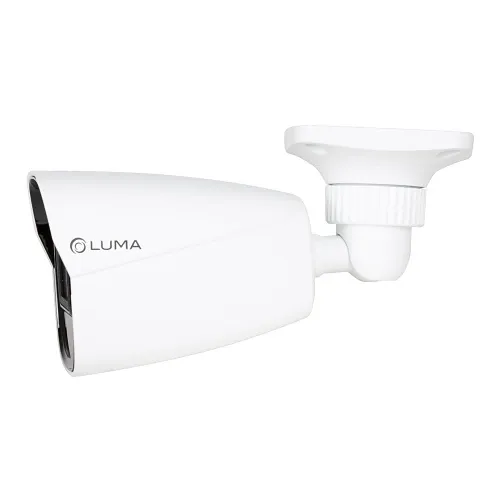

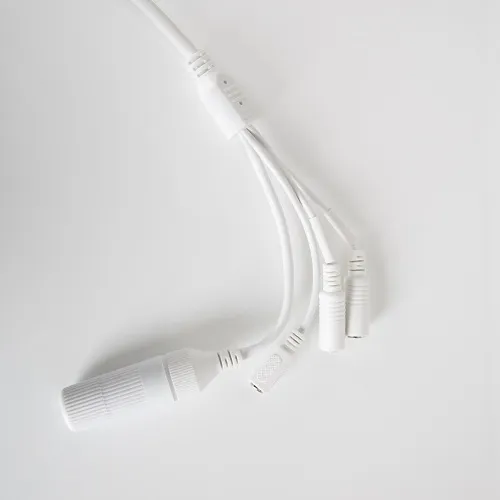

Image of VM-M520IPBFW
Product images for Luma LUM-520-IP-BFW 520 Series 5MP Bullet IP Outdoor Camera, 2.8 Fixed Lens, White. 4 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Crisp 5MP (2K) imaging for clearer identification and evidence capture
  • Built-in intelligent analytics to reduce false alerts and surface relevant events faster
  • IR night vision and WDR for balanced, usable footage in low-light and high-contrast scenes
  • IP67 weatherproof housing for reliable outdoor security and perimeter monitoring
  • OvrC remote configuration and Control4 compatibility for faster deployments and centralized management
  • NDAA-compliant design with a 3-year limited warranty for long-term, compliant installations

Quick Specifications

Product Model
LUM-520-IP-BFW
Brand Name
Luma
OvrC Enabled
Yes
Product Line
X20
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Designed for reliable outdoor security and surveillance, the Luma LUM-520-IP-BFW 520 Series 5MP Bullet IP Camera delivers clear 2K imagery and dependable monitoring for commercial and residential sites. This Luma bullet IP camera uses a 5MP sensor and 2.8mm fixed lens to provide a wide, detailed field of view ideal for parking lots, building perimeters, and entryways. Built-in intelligent analytics reduce false notifications and help technicians and operators quickly find important events, while IR night vision and wide dynamic range ensure usable footage in challenging light. IP67-rated weatherproofing and operating temps down to -22°F make this camera durable for year-round outdoor use. Installers will appreciate OvrC remote configuration and seamless Control4 and ONVIF integration, enabling faster camera setup, live adjustments, and centralized monitoring without onsite UI tweaks. With NDAA compliance and a 3-year limited warranty, the LUM-520-IP-BFW supports secure, long-term deployments. Add this Luma outdoor bullet camera to your security system for professional surveillance and simplified management—ideal for commercial, multi-site, and critical-infrastructure monitoring applications.

Features

  • Crisp 5MP (2K) imaging for clearer identification and evidence capture
  • Built-in intelligent analytics to reduce false alerts and surface relevant events faster
  • IR night vision and WDR for balanced, usable footage in low-light and high-contrast scenes
  • IP67 weatherproof housing for reliable outdoor security and perimeter monitoring
  • OvrC remote configuration and Control4 compatibility for faster deployments and centralized management
  • NDAA-compliant design with a 3-year limited warranty for long-term, compliant installations
General Information
Brand Name Luma
OvrC Enabled Yes
Product Line X20
Product Type IP Camera
Product Series 520
Manufacturer Part Number LUM-520-IP-BFW
Technical Information
Aperture f/1.6
Backlight Yes
Lens Type Fixed
Image Sensor 5MP
Field of View Horizontal, Vertical
Video Formats H.264, H.265
Motion Detection Yes
Power Consumption 5.5W
Maximum Frame Rate 30fps
Built-in Microphone Yes
Effective Camera Resolution 5MP
Camera
Camera Type Bullet
Wide Dynamic Range Yes
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP67
Environmental Conditions
Operating Humidity 95% (Non-condensing)
Operating Temperature (T-T) -22-140°F
Exposure
Minimum Illumination 0 lux
Shortest Shutter Speed 1/100000s
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8mm
Memory
Memory Card Supported 256GB
Physical Characteristics
Color White
Dimensions 167.5mm x 74.5mm x 74.5mm
Form Factor Bullet
Miscellaneous
Compatibility Control4
Certifications ETL Listed, CE, FCC, NDAA Compliant, ONVIF Conformance
Indoor/Outdoor Outdoor
