Luma LUM-520-IP-DFB 520 Series 5MP Dome IP Outdoor Camera, 2.8mm Fixed Lens, Black

SKU: LUM-520-IP-DFB Luma
Image of VM-M520IPDFB

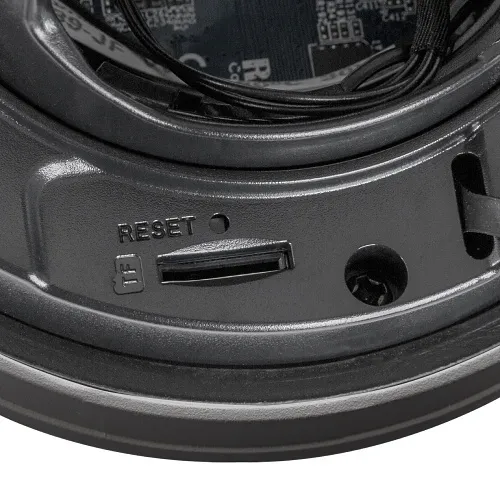

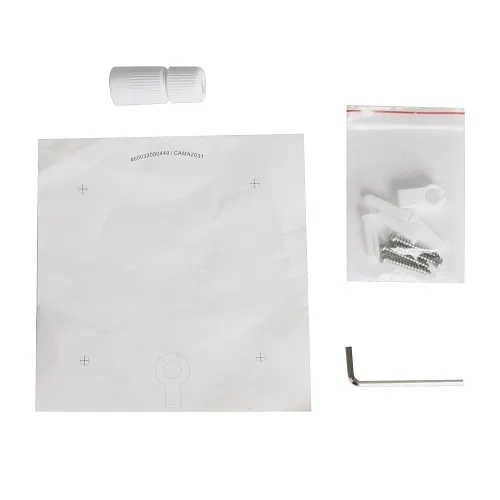

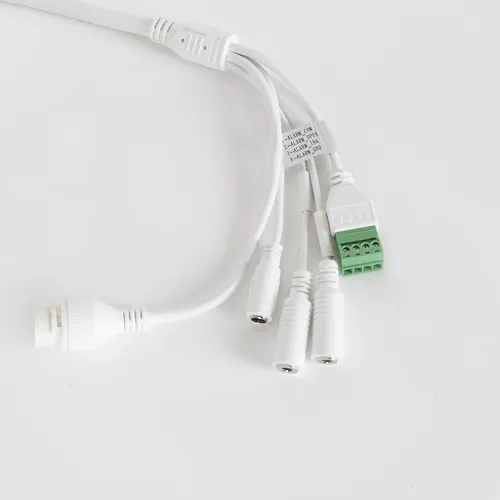

Product images for Luma LUM-520-IP-DFB 520 Series 5MP Dome IP Outdoor Camera, 2.8mm Fixed Lens, Black. 4 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Deliver crisp 2K security footage with 5MP resolution for faster identification and improved monitoring accuracy
  • Reliable nighttime detection with IR illumination that avoids over-exposure for clear low-light surveillance
  • Rugged outdoor protection (IP67, IK10) to withstand weather and vandalism, reducing downtime and maintenance
  • Remote setup and management via OvrC plus Control4 and ONVIF integration to simplify deployments and system control
  • Built-in intelligent analytics and push alerts to reduce false notifications and surface critical events faster

Quick Specifications

Product Model
LUM-520-IP-DFB
Brand Name
Luma
OvrC Enabled
Yes
Product Line
X20
View Full Technical Specifications

Frequently Bought Together

This Item
Luma LUM-520-IP-DFB 520 Series 5MP Dome IP Outdoor Camera, 2.8mm Fixed Lens, Black

Luma LUM-520-IP-DFB 520 Series 5MP Dome IP Outdoor Camera, 2.8mm Fixed Lens, Black

$230.38

Frequently Bought Together (4 items)

5 items selected

Total: $905.42

Product Information Tabs

Overview

Protect perimeters and monitor high-value areas with the Luma LUM-520 IP dome outdoor camera—designed to deliver dependable, high-detail video for commercial security and property surveillance. This Luma 520 Series dome camera captures 5MP (2K) images on a 2.8mm fixed lens to make license-plate, face and incident review faster and more actionable. IR night viewing provides even illumination in low-light scenes while WDR handles challenging contrast for consistent footage. Built-in analytics reduce false alarms and provide instant push notifications for focused monitoring, and the camera supports H.264/H.265 streaming to optimize bandwidth and recording costs. With IP67 weatherproofing and IK10 impact resistance the unit stands up to harsh outdoor environments and vandal attempts. IT-friendly features like OvrC remote configuration, ONVIF compatibility, Control4 integration and local microSD storage (up to 256GB) cut installation time and simplify ongoing management. Ideal for retail, campus, and critical infrastructure surveillance—deploy the Luma LUM-520 to upgrade your security monitoring and streamline operations. Contact your reseller or add to cart to start protecting your site today.

Features

  • Deliver crisp 2K security footage with 5MP resolution for faster identification and improved monitoring accuracy
  • Reliable nighttime detection with IR illumination that avoids over-exposure for clear low-light surveillance
  • Rugged outdoor protection (IP67, IK10) to withstand weather and vandalism, reducing downtime and maintenance
  • Remote setup and management via OvrC plus Control4 and ONVIF integration to simplify deployments and system control
  • Built-in intelligent analytics and push alerts to reduce false notifications and surface critical events faster
General Information
Brand Name Luma
OvrC Enabled Yes
Product Line X20
Product Type IP Camera
Product Series 520
Manufacturer Part Number LUM-520-IP-DFB
Technical Information
Aperture f/1.6
Backlight Yes
Lens Type Fixed
Image Sensor 5MP
Field of View Horizontal, Vertical
Video Formats H.264, H.265
Motion Detection Yes
Power Consumption 6W
Maximum Frame Rate 30fps
Built-in Microphone Yes
Effective Camera Resolution 5MP
Camera
Camera Type Dome
Wide Dynamic Range Yes
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP67
Environmental Conditions
Operating Humidity 95% (Non-condensing)
Operating Temperature (T-T) -22-140°F
Exposure
Minimum Illumination 0 lux
Shortest Shutter Speed 1/100000s
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8mm
Memory
Memory Card Supported 256GB
Physical Characteristics
Color Black
Dimensions 119mm x 87.8mm
Form Factor Dome
Miscellaneous
Compatibility Control4
Certifications ETL Listed, CE, FCC, NDAA Compliant, ONVIF Conformance
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
