Luma LUM-520-IP-DFTW 520 Series Vandal 5MP Compact Dome IP Outdoor Camera, 2.8mm Fixed Lens, White

SKU: LUM-520-IP-DFTW Luma

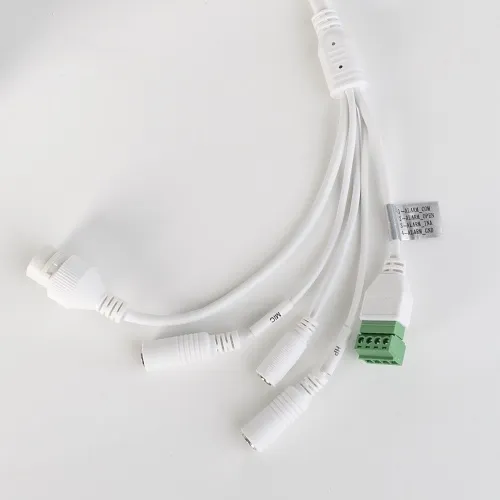

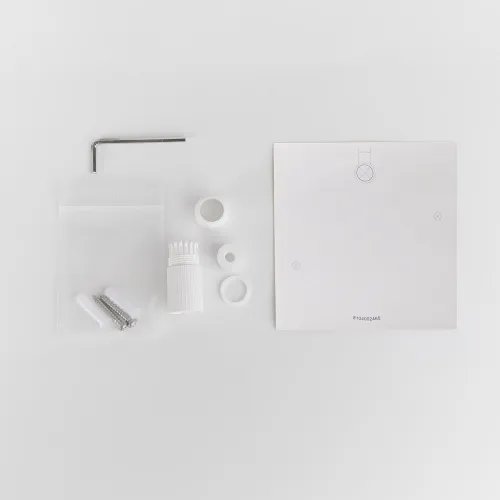

Image of VM-520IPDFTW
Product images for Luma LUM-520-IP-DFTW 520 Series Vandal 5MP Compact Dome IP Outdoor Camera, 2.8mm Fixed Lens, White. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Deliver crisp 5MP (2K) video for clear identification and evidence capture
  • Compact, low-profile dome ideal for discreet outdoor surveillance and tight mounting locations
  • Built-in intelligent analytics reduce false alerts and speed incident review
  • IP67 weatherproofing and IK10 vandal resistance protect critical assets in harsh environments
  • IR night viewing and 2.8mm fixed lens provide reliable 24/7 monitoring with wide coverage
  • OvrC remote management and Control4 compatibility streamline configuration and centralized control

Quick Specifications

Product Model
LUM-520-IP-DFTW
Brand Name
Luma
OvrC Enabled
Yes
Product Line
X20
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Designed for reliable, professional security monitoring, the Luma LUM-520-IP-DFTW 520 Series vandal 5MP compact dome delivers high-resolution surveillance in a discreet, rugged package. This Luma outdoor dome camera produces 5MP (2K) imagery through a 2.8mm fixed lens, giving security teams sharper detail for identification and faster incident response. Built-in intelligent analytics reduce nuisance alerts so operators can focus on real events, while dual microphones capture audio context to complement video evidence.

Engineered for real-world deployments, the camera carries IP67 weatherproofing and IK10 impact protection, ensuring continuous operation in exposed locations. IR night viewing provides zero-lux performance for after-dark coverage, and H.264/H.265 compression keeps bandwidth and storage demands efficient. OvrC remote management and Control4 compatibility allow centralized configuration, live adjustments, and streamlined system integration—minimizing onsite service visits.

Ideal for retail, entrances, parking areas, and perimeter security, the Luma 520 Series dome is a practical choice for integrators and facility managers seeking dependable outdoor surveillance. Contact your distributor or add to your next security project to improve monitoring and incident capture.

Features

  • Deliver crisp 5MP (2K) video for clear identification and evidence capture
  • Compact, low-profile dome ideal for discreet outdoor surveillance and tight mounting locations
  • Built-in intelligent analytics reduce false alerts and speed incident review
  • IP67 weatherproofing and IK10 vandal resistance protect critical assets in harsh environments
  • IR night viewing and 2.8mm fixed lens provide reliable 24/7 monitoring with wide coverage
  • OvrC remote management and Control4 compatibility streamline configuration and centralized control
General Information
Brand Name Luma
OvrC Enabled Yes
Product Line X20
Product Type IP Camera
Product Series 520
Manufacturer Part Number LUM-520-IP-DFTW
Technical Information
Aperture f/1.6
Backlight Yes
Lens Type Fixed
Image Sensor 5MP
Field of View Horizontal, Vertical
Video Formats H.264, H.265
Motion Detection Yes
Power Consumption 6W
Maximum Frame Rate 30fps
Built-in Microphone Yes
Effective Camera Resolution 5MP
Camera
Camera Type Dome
Wide Dynamic Range Yes
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP67
Environmental Conditions
Operating Humidity 95% (Non-condensing)
Operating Temperature (T-T) -22-140°F
Exposure
Minimum Illumination 0 lux
Shortest Shutter Speed 1/100000s
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8mm
Memory
Memory Card Supported 256GB
Physical Characteristics
Color White
Dimensions 4.33" x 2.36"
Form Factor Dome
Miscellaneous
Compatibility Control4
Certifications ETL Listed, CE, FCC, NDAA Compliant, ONVIF Conformance
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
