Luma LUM-520-IP-TFB 520 Series 5MP Turret IP Outdoor Camera, 2.8mm Fixed Lens, Black

SKU: LUM-520-IP-TFB Luma

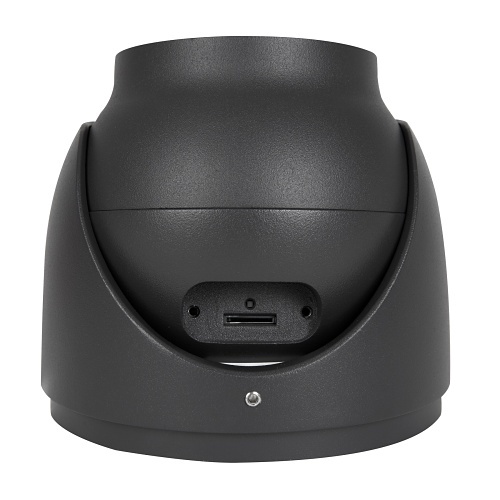

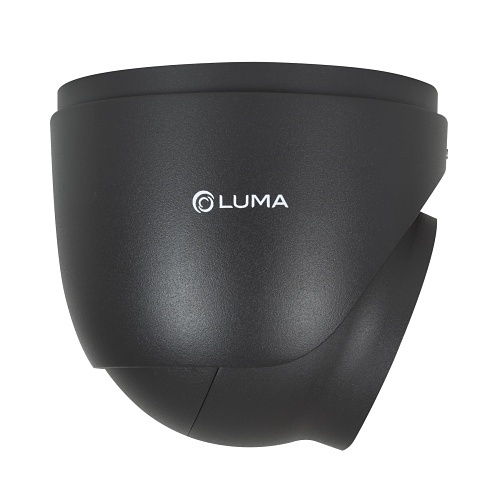

Image of VM-M520IPTFB
Product images for Luma LUM-520-IP-TFB 520 Series 5MP Turret IP Outdoor Camera, 2.8mm Fixed Lens, Black. 5 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Deliver crisp 2K surveillance with 5MP resolution and a 2.8mm fixed lens for clear identification and wide area coverage
  • Reduce false alarms and focus on actionable events with built-in intelligent analytics and instant push notifications
  • Dependable 24/7 monitoring using IR night vision and an IP67 weatherproof housing for consistent outdoor performance
  • Simplify deployment and remote management with OvrC remote configuration, ONVIF compatibility and Control4 integration
  • Secure, compliant installation backed by NDAA compliance and a 3-year limited warranty for long-term peace of mind

Quick Specifications

Product Model
LUM-520-IP-TFB
Brand Name
Luma
OvrC Enabled
Yes
Product Line
X20
View Full Technical Specifications

Frequently Bought Together

This Item
Luma LUM-520-IP-TFB 520 Series 5MP Turret IP Outdoor Camera, 2.8mm Fixed Lens, Black

Luma LUM-520-IP-TFB 520 Series 5MP Turret IP Outdoor Camera, 2.8mm Fixed Lens, Black

$230.38

Frequently Bought Together (4 items)

5 items selected

Total: $660.94

Explore the details

Product information

LUM-520-IP-TFB

Overview

Designed for reliable outdoor security monitoring, the Luma LUM-520-IP-TFB turret IP camera delivers sharp 5MP (2K) footage and a wide 2.8mm field of view to capture faces, license plates and perimeter activity with clarity. Built-in intelligent analytics reduce false notifications so security teams and integrators can quickly find and act on true events. IR night viewing provides even illumination without over-exposure for consistent low-light performance, while H.265 video compression and support for up to 256GB local storage keep bandwidth and storage costs under control. The IP67-rated enclosure protects against rain and dust for year-round surveillance in demanding environments. OvrC-enabled remote management and ONVIF/Control4 compatibility streamline provisioning, image tuning and system integration—saving installation time and simplifying ongoing monitoring. NDAA-compliant and backed by a 3-year limited warranty, this turret camera is engineered for commercial and residential security applications. Ideal for storefronts, parking lots, building perimeters and multifamily properties—contact sales or add the Luma 520 Series to your next security deployment.

Features

  • Deliver crisp 2K surveillance with 5MP resolution and a 2.8mm fixed lens for clear identification and wide area coverage
  • Reduce false alarms and focus on actionable events with built-in intelligent analytics and instant push notifications
  • Dependable 24/7 monitoring using IR night vision and an IP67 weatherproof housing for consistent outdoor performance
  • Simplify deployment and remote management with OvrC remote configuration, ONVIF compatibility and Control4 integration
  • Secure, compliant installation backed by NDAA compliance and a 3-year limited warranty for long-term peace of mind
34 of 34 specifications
Technical specifications for Luma LUM-520-IP-TFB 520 Series 5MP Turret IP Outdoor Camera, 2.8mm Fixed Lens, Black
General Information
Brand Name Luma
OvrC Enabled Yes
Product Line X20
Product Type IP Camera
Product Series 520
Manufacturer Part Number LUM-520-IP-TFB
Technical Information
Aperture f/1.6
Backlight Yes
Lens Type Fixed
Image Sensor 5MP
Field of View Horizontal, Vertical
Video Formats H.264, H.265
Motion Detection Yes
Power Consumption 7W
Maximum Frame Rate 30fps
Built-in Microphone Yes
Effective Camera Resolution 5MP
Camera
Camera Type Turret
Wide Dynamic Range Yes
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP67
Environmental Conditions
Operating Humidity 95% (Non-condensing)
Operating Temperature (T-T) -22-140°F
Exposure
Minimum Illumination 0 lux
Shortest Shutter Speed 1/100000s
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8mm
Memory
Memory Card Supported 256GB
Physical Characteristics
Color Black
Dimensions 94.6mm x 82.8mm
Form Factor Turret
Miscellaneous
Compatibility Control4
Certifications ETL Listed, CE, FCC, NDAA Compliant, ONVIF Conformance
Indoor/Outdoor Outdoor
