Luma LUM-520-IP-TFCW 520 Series 5MP 24/7 Full Color Turret IP Outdoor Camera, 2.8mm Fixed Lens, White

SKU: LUM-520-IP-TFCW Luma
Image of VM-520IPTFCW

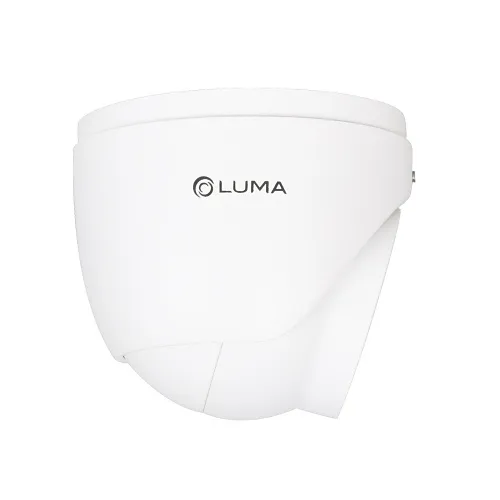

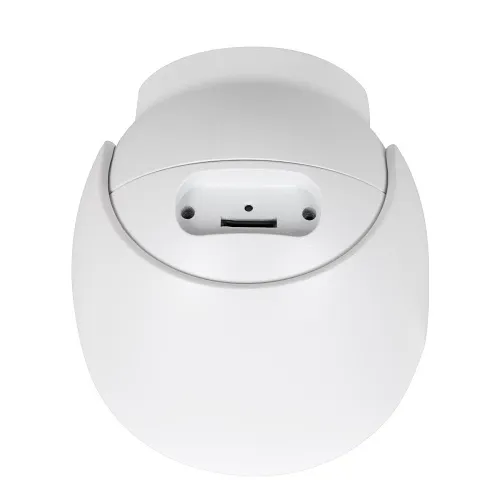

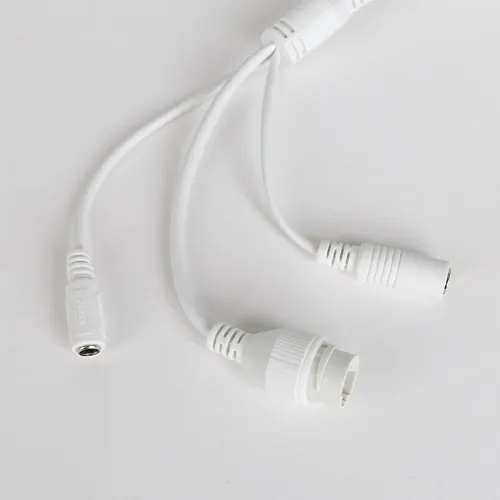

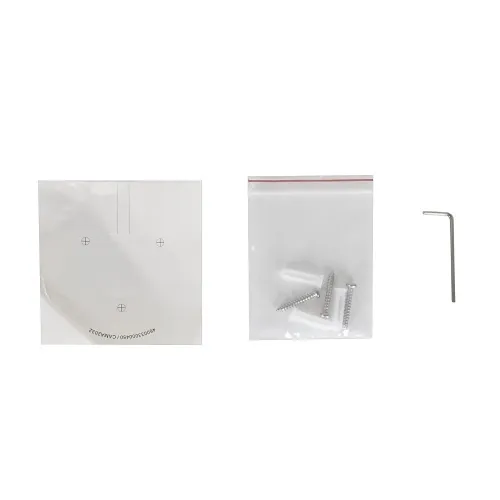

Product images for Luma LUM-520-IP-TFCW 520 Series 5MP 24/7 Full Color Turret IP Outdoor Camera, 2.8mm Fixed Lens, White. 5 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Consistent full‑color imaging around the clock with 24/7 Color technology for clearer identification and situational awareness
  • High-resolution 5MP (2K) sensor and 2.8mm fixed lens deliver crisp, wide-angle coverage to reduce blind spots and support forensic-quality evidence
  • Remote management via OvrC simplifies deployment and troubleshooting across multiple sites, saving time for IT and security teams
  • Rugged IP67 weatherproof housing and -22° to 140°F rating ensure reliable outdoor surveillance in harsh environments
  • Integrates with Control4 and supports ONVIF/NDAA compliance for flexible system integration and enterprise security standards
  • Efficient H.264/H.265 compression and motion detection reduce storage and bandwidth while maintaining smooth 30FPS video for continuous monitoring

Quick Specifications

Product Model
LUM-520-IP-TFCW
Brand Name
Luma
OvrC Enabled
Yes
Product Line
X20
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Built for reliable perimeter and property protection, the Luma LUM-520-IP-TFCW turret IP camera delivers 24/7 full-color surveillance so you see critical detail even in low light. This Luma 520 Series turret camera combines a 5MP (2592 x 1944) image sensor with a 2.8mm fixed lens to provide wide-angle, high-definition coverage ideal for retail fronts, parking lots, and facility monitoring. With built-in 24/7 Color technology and up to 30 FPS recording, operators gain clearer identification of people and vehicles without relying solely on IR illumination.

Deployment and management are fast and scalable thanks to OvrC remote configuration and Control4 compatibility, letting IT and security teams adjust imaging, alerts, and recording settings from a central console. The IP67-rated enclosure and durable operating range stand up to rain, dust, and temperature extremes for dependable outdoor performance. H.264/H.265 compression and motion-triggered alerts optimize bandwidth and storage for long-term monitoring.

Choose the Luma LUM-520 turret IP camera to strengthen your security infrastructure—contact your sales rep or add to cart to start protecting assets and improving situational awareness today.

Features

  • Consistent full‑color imaging around the clock with 24/7 Color technology for clearer identification and situational awareness
  • High-resolution 5MP (2K) sensor and 2.8mm fixed lens deliver crisp, wide-angle coverage to reduce blind spots and support forensic-quality evidence
  • Remote management via OvrC simplifies deployment and troubleshooting across multiple sites, saving time for IT and security teams
  • Rugged IP67 weatherproof housing and -22° to 140°F rating ensure reliable outdoor surveillance in harsh environments
  • Integrates with Control4 and supports ONVIF/NDAA compliance for flexible system integration and enterprise security standards
  • Efficient H.264/H.265 compression and motion detection reduce storage and bandwidth while maintaining smooth 30FPS video for continuous monitoring
General Information
Brand Name Luma
OvrC Enabled Yes
Product Line X20
Product Type IP Camera
Product Series 520
Manufacturer Part Number LUM-520-IP-TFCW
Technical Information
Aperture f/1.0
Backlight Yes
Lens Type Fixed
Image Sensor 5MP
Field of View Horizontal, Vertical
Video Formats H.264, H.265
Motion Detection Yes
Power Consumption 7W
Maximum Frame Rate 30fps
Built-in Microphone Yes
Effective Camera Resolution 5MP
Camera
Camera Type Turret
Wide Dynamic Range Yes
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP67
Environmental Conditions
Operating Humidity 95% (Non-condensing)
Operating Temperature (T-T) -22-140°F
Exposure
Minimum Illumination 0 lux
Shortest Shutter Speed 1/100000s
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8mm
Memory
Memory Card Supported 256GB
Physical Characteristics
Color White
Dimensions 94.6mm x 82.8mm
Form Factor Turret
Miscellaneous
Compatibility Control4
Certifications ETL Listed, CE, FCC, NDAA Compliant, ONVIF Conformance
Indoor/Outdoor Outdoor
