Luma LUM-520-IP-TFW 520 Series 5MP Turret IP Outdoor Camera, 2.8mm Fixed Lens, White

SKU: LUM-520-IP-TFW Luma
Image of VM-M520IPTFW

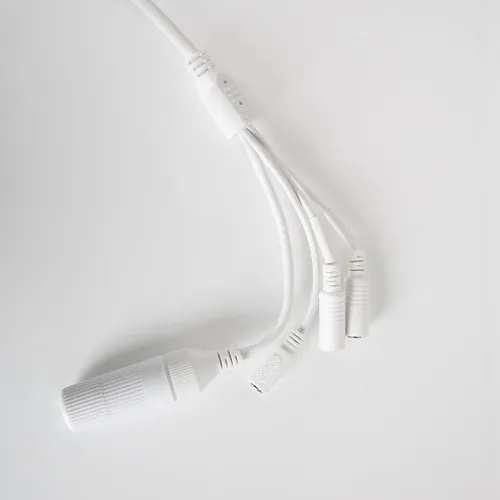

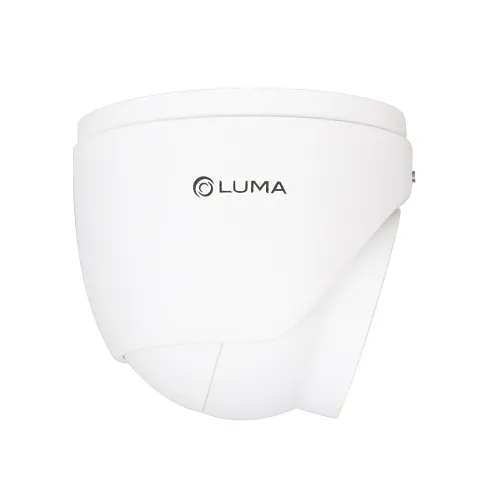

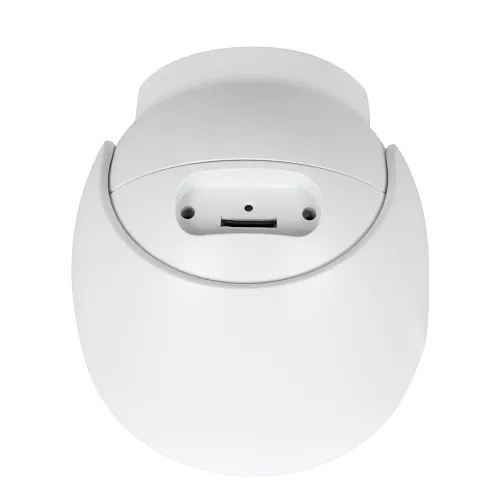

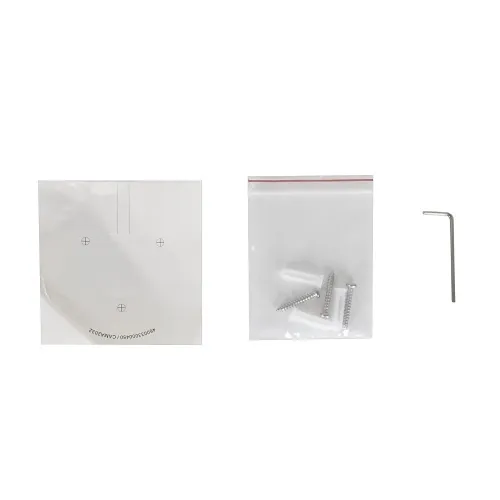

Product images for Luma LUM-520-IP-TFW 520 Series 5MP Turret IP Outdoor Camera, 2.8mm Fixed Lens, White. 5 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Crisp 5MP (2K) image quality for clear identification at entry points and perimeters
  • Built-in intelligent analytics reduce false alerts and surface relevant events for faster incident response
  • IR night vision with 0 lux sensitivity lets you monitor 24/7 without overexposure in low light
  • OvrC remote management simplifies configuration, real-time image adjustments and large deployments
  • IP67 weatherproof housing and NDAA compliance ensure durable, secure outdoor operation and procurement
  • Seamless integration with Control4, ONVIF and common VMS for flexible system-level surveillance and security monitoring

Quick Specifications

Product Model
LUM-520-IP-TFW
Brand Name
Luma
OvrC Enabled
Yes
Product Line
X20
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Designed for dependable outdoor security and professional monitoring, the Luma LUM-520-IP-TFW turret IP camera delivers clear 5MP (2K) imagery and continuous situational awareness. This compact Luma turret camera pairs a 2.8mm fixed lens and a sensitive 5MP sensor to capture wide, detailed scenes at up to 30fps while H.265 compression optimizes bandwidth and storage. Built-in intelligent analytics cut through noise to reduce false notifications, highlighting meaningful motion for faster investigation and better security outcomes.

Equipped with IR night viewing (0 lux) and IP67 weatherproofing, the LUM-520 is engineered for perimeter, parking lot, retail and commercial monitoring where reliable night and all-weather performance matter. IT-friendly features like OvrC remote setup, ONVIF conformance and Control4 compatibility streamline deployment and ongoing management across distributed sites. Backed by a 3-year limited warranty and NDAA compliance, this turret camera is a secure choice for modern surveillance systems. Contact your Luma reseller or order the LUM-520 to upgrade your next security installation.

Features

  • Crisp 5MP (2K) image quality for clear identification at entry points and perimeters
  • Built-in intelligent analytics reduce false alerts and surface relevant events for faster incident response
  • IR night vision with 0 lux sensitivity lets you monitor 24/7 without overexposure in low light
  • OvrC remote management simplifies configuration, real-time image adjustments and large deployments
  • IP67 weatherproof housing and NDAA compliance ensure durable, secure outdoor operation and procurement
  • Seamless integration with Control4, ONVIF and common VMS for flexible system-level surveillance and security monitoring
General Information
Brand Name Luma
OvrC Enabled Yes
Product Line X20
Product Type IP Camera
Product Series 520
Manufacturer Part Number LUM-520-IP-TFW
Technical Information
Aperture f/1.6
Backlight Yes
Lens Type Fixed
Image Sensor 5MP
Field of View Horizontal, Vertical
Video Formats H.264, H.265
Motion Detection Yes
Power Consumption 7W
Maximum Frame Rate 30fps
Built-in Microphone Yes
Effective Camera Resolution 5MP
Camera
Camera Type Turret
Wide Dynamic Range Yes
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP67
Environmental Conditions
Operating Humidity 95% (Non-condensing)
Operating Temperature (T-T) -22-140°F
Exposure
Minimum Illumination 0 lux
Shortest Shutter Speed 1/100000s
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8mm
Memory
Memory Card Supported 256GB
Physical Characteristics
Color White
Dimensions 94.6mm x 82.8mm
Form Factor Turret
Miscellaneous
Compatibility Control4
Certifications ETL Listed, CE, FCC, NDAA Compliant, ONVIF Conformance
Indoor/Outdoor Outdoor
