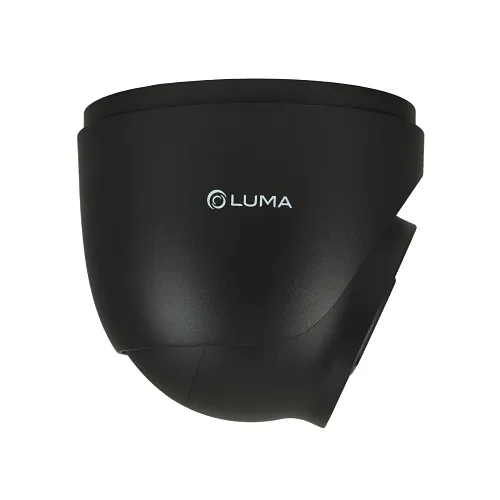

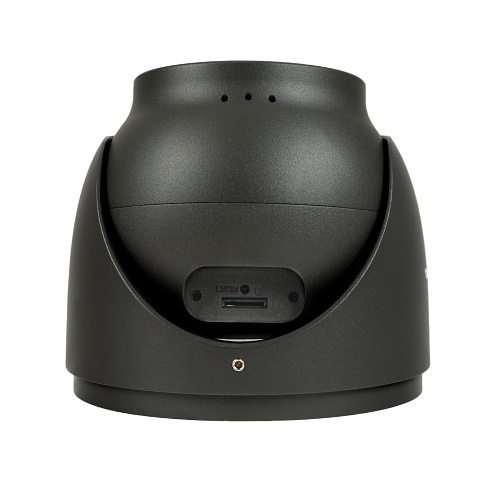

Luma LUM-820-IP-TFHB 820 Series 8MP Turret IP Outdoor Camera, 2.8mm Fixed Lens, WDR 120 dB, IP67, Black

SKU: LUM-820-IP-TFHB Luma
Image of VM-LUM820TFH
Product images for Luma LUM-820-IP-TFHB 820 Series 8MP Turret IP Outdoor Camera, 2.8mm Fixed Lens, WDR 120 dB, IP67, Black. 5 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Deliver crisp 8MP (4K) footage to capture critical details for evidence and incident review
  • Hybrid IR and Color-at-Night modes preserve color and clarity in low light to improve nighttime monitoring
  • Active Deterrence with built-in LED and audible alerts helps stop intruders before incidents escalate
  • AI-assisted person and vehicle detection reduces false alarms and focuses alerts on real threats
  • Weatherproof IP67 turret housing and wide 2.8mm field of view provide reliable outdoor coverage in harsh conditions
  • OvrC and Control4 support simplifies remote configuration and integration into professional security systems

Quick Specifications

Brand Name
Luma
OvrC Enabled
Yes
Product Line
X20
Product Type
Hybrid Active Deterrence Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Protect perimeters and capture actionable evidence with the Luma LUM-820-IP-TFHB turret IP outdoor camera. Built for commercial and residential security, this Luma 820 Series camera delivers 8MP (4K) resolution and a wide 2.8mm fixed lens so you get clear, usable video across wider coverage areas. WDR 120 dB balances bright and dark scenes for readable faces and license plates, while hybrid IR and Color-at-Night modes ensure night-time monitoring retains critical color information when it matters.

Designed for proactive surveillance, the LUM-820-IP-TFHB includes Active Deterrence—integrated white LEDs and pre-set audio warnings—and AI-assisted person and vehicle detection to reduce false alarms and speed response. The turret form factor and IP67-rated housing stand up to weather and temperature extremes, and native OvrC plus Control4 compatibility makes deployment and remote management straightforward for integrators.

Ideal for storefronts, property perimeters, and multi-site deployments, this Luma turret camera combines durable outdoor performance with intelligent monitoring features to improve situational awareness. Add the LUM-820-IP-TFHB to your security system to strengthen surveillance and deter threats today.

Features

  • Deliver crisp 8MP (4K) footage to capture critical details for evidence and incident review
  • Hybrid IR and Color-at-Night modes preserve color and clarity in low light to improve nighttime monitoring
  • Active Deterrence with built-in LED and audible alerts helps stop intruders before incidents escalate
  • AI-assisted person and vehicle detection reduces false alarms and focuses alerts on real threats
  • Weatherproof IP67 turret housing and wide 2.8mm field of view provide reliable outdoor coverage in harsh conditions
  • OvrC and Control4 support simplifies remote configuration and integration into professional security systems
General Information
Brand Name Luma
OvrC Enabled Yes
Product Line X20
Product Type Hybrid Active Deterrence Camera
Product Series 820
Manufacturer Part Number LUM-820-IP-TFHB
Technical Information
Aperture f/1.6
Lens Type Fixed
Image Sensor CMOS
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265
Motion Detection Yes
Maximum Frame Rate 30fps
Built-in Microphone Yes
Effective Camera Resolution 8MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66
Environmental Conditions
Operating Humidity 95% (Non-condensing)
Storage Temperature (T-T) -22-149°F
Operating Temperature (T-T) -22-140°F
Exposure
Minimum Illumination 0 lux
Shortest Shutter Speed 1/4s - 1/1000,000s
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8mm
Memory
Memory Card Supported 256GB
Physical Characteristics
Color Black
Form Factor Turret
Power Description
Maximum Power Consumption 12.5W
Product Information
Diameter 4.38"
Miscellaneous
Features Active Deterrence
Compatibility Control4
Certifications CE, ETL Listed, FCC, NDAA Compliant, ONVIF Conformance
Indoor/Outdoor Outdoor
