Audix M3WHM Tri-Element Hanging Ceiling Microphone with Hard Mount, White

SKU: M3WHM Audix

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

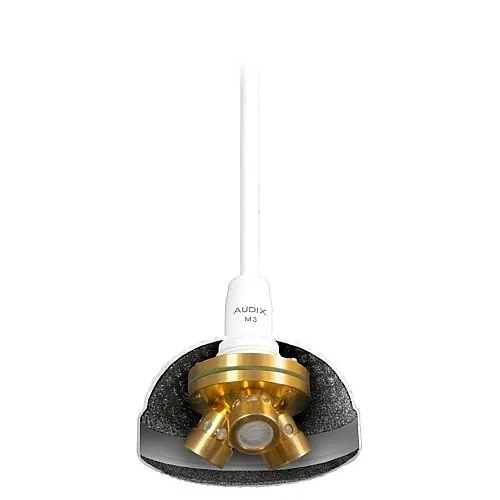

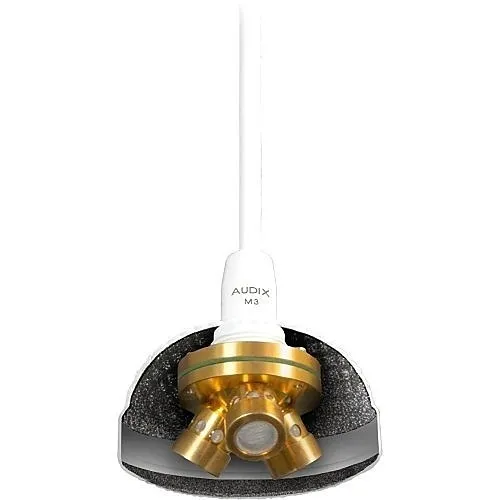

Image of RA-M3WHM
Product images for Audix M3WHM Tri-Element Hanging Ceiling Microphone with Hard Mount, White. 3 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Crystal-clear speech capture for conferencing, courtrooms and distance learning—reduces background noise for improved intelligibility
  • Three phase-coherent hypercardioid capsules focus on voice while rejecting HVAC, keyboard and room noise
  • Plenum-rated junction box with RJ45 sealed connection for tidy, code-compliant installations in security and monitoring systems
  • Low-noise preamp and low-impedance design support long cable runs and reliable wired performance for surveillance and AV networks
  • Discreet white hanging form factor that blends into ceilings for unobtrusive ambient miking and professional aesthetics

Quick Specifications

Product Model
M3WHM
Brand Name
Audix
Product Line
Ceiling
Product Name
Tri-Element Hanging Ceiling Microphone
View Full Technical Specifications

Explore the details

Product information

M3WHM

Overview

For reliable, high-intelligibility voice capture in conferencing, courtrooms, hospitals and security monitoring, the Audix M3WHM Tri-Element Hanging Ceiling Microphone delivers studio-quality results in a discreet ceiling mount. The M3WHM integrates three phase-coherent hypercardioid condenser capsules and a low-noise preamp to prioritize speech while minimizing HVAC, keyboard and paging interference. With a tailored 30 Hz–19 kHz frequency response and 150 ohm low-impedance output, it produces clear, natural voice reproduction and supports long cable runs without cross-talk—ideal for video conferencing, surveillance, and distance learning deployments. Installers benefit from a plenum-rated junction box and an RJ45 brass housing for an airtight, code-compliant connection above the ceiling. TAA compliance and rugged materials mean dependable performance in mission-critical environments such as courtrooms and operating rooms. Choose the Audix M3WHM when you need professional, unobtrusive audio capture for security, monitoring and unified communications. Contact your AV integrator or add to cart to upgrade your room audio today.

Features

  • Crystal-clear speech capture for conferencing, courtrooms and distance learning—reduces background noise for improved intelligibility
  • Three phase-coherent hypercardioid capsules focus on voice while rejecting HVAC, keyboard and room noise
  • Plenum-rated junction box with RJ45 sealed connection for tidy, code-compliant installations in security and monitoring systems
  • Low-noise preamp and low-impedance design support long cable runs and reliable wired performance for surveillance and AV networks
  • Discreet white hanging form factor that blends into ceilings for unobtrusive ambient miking and professional aesthetics
26 of 26 specifications
Technical specifications for Audix M3WHM Tri-Element Hanging Ceiling Microphone with Hard Mount, White
General Information
Brand Name Audix
Manufacturer Audix Microphones
Product Line Ceiling
Product Name Tri-Element Hanging Ceiling Microphone
Product Type Microphone
Product Model M3WHM
Product Series M3
Manufacturer Part Number M3WHM
Technical Information
Material Brass
Impedance 150 ohms
Polar Pattern Hyper-cardioid
Host Interface Terminal Block, XLR
Application/Usage Ambient Miking, Courtroom, Hospital, Surveillance, Video Conferencing
Connectivity Technology Wired
Audio
Maximum Frequency Response 19 kHz
Minimum Frequency Response 30Hz
Certifications
TAA Compliant Yes
Microphone
Microphone Type Condenser
Microphone Technology Condenser
Physical Characteristics
Color White
Weight 3.35oz
Form Factor Ceiling Mount, Hanging
Product Information
Length 1.2"
Mount Type Ceiling Mount, Hanging
Warranty
Limited Warranty 1-Year
Miscellaneous
Country of Origin US
