Altronix MAXFIT5E Single Power Supply Expandable Power Systems, 12VDC at 10A, BC750 Enclosure
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 4
Key Features
- Reliable, continuous power for access control and surveillance systems with filtered 12VDC/10A output to minimize downtime
- Scalable battery backup: BC750 enclosure accommodates up to four 12VDC/12AH batteries for longer run-times and peace of mind
- Built-in charger and instantaneous transfer to standby batteries to ensure uninterrupted security and monitoring during AC loss
- Proactive system supervision with AC fail, low battery and battery presence monitoring to reduce maintenance visits and false alarms
- Compact, UL-compliant design with thermal/short-circuit protection and lifetime warranty for long-term, code-compliant deployments
Quick Specifications
- Product Model
- MAXFIT5E
- Sector
- Access Control
- Brand Name
- Altronix
- Product Line
- Maximal
Frequently Bought Together
Altronix MAXFIT5E Single Power Supply Expandable Power Systems, 12VDC at 10A, BC750 Enclosure
$498.32
3 items selected
Total: $639.88
Explore the details
Product information
MAXFIT5E
Overview

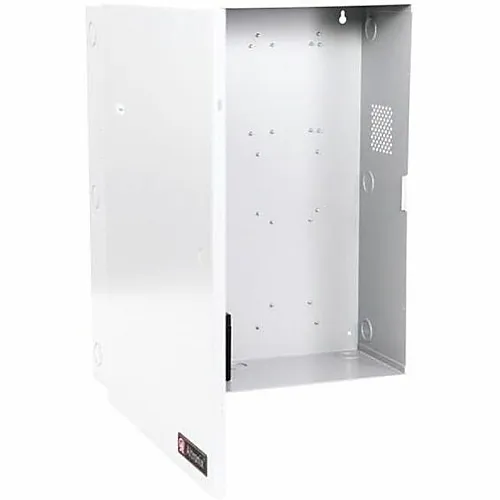

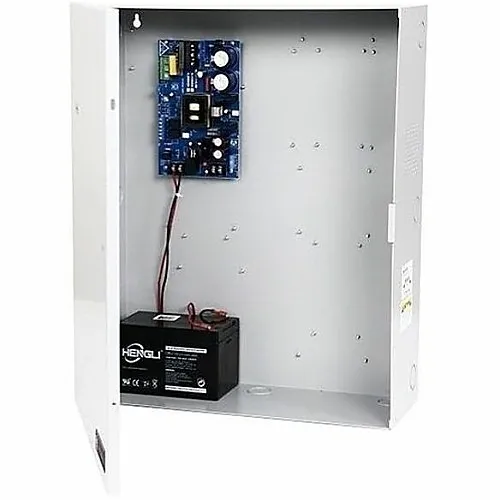

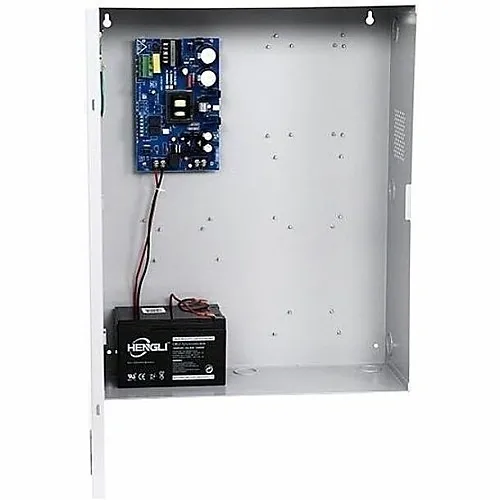

Keep security and surveillance systems operational with the Altronix MAXFIT5E single power supply expandable power system. Purpose-built for access control and monitoring applications, this MaxFit series power supply delivers a stable 12VDC at 10A and integrates a reliable charger and instantaneous transfer to standby batteries to prevent service interruptions. The unit ships in a BC750 enclosure that accepts up to four 12VDC/12AH batteries, allowing installers to scale backup capacity for longer runtimes without changing the footprint.
Designed for professional integrators, the MAXFIT5E offers filtered, electronically regulated outputs, thermal and short-circuit protection with auto-reset, and supervision for AC fail, low battery and battery presence. NDAA-compliant and RoHS-certified, it supports code-compliant installations and reduces lifecycle costs with a lifetime warranty. Ideal for powering card readers, controllers, CCTV, intrusion detection and other low-voltage security devices, the MAXFIT5E simplifies deployment and ongoing maintenance. Order the Altronix MAXFIT5E to upgrade your access control and surveillance power infrastructure or contact us for system configuration assistance.
Features
- Reliable, continuous power for access control and surveillance systems with filtered 12VDC/10A output to minimize downtime
- Scalable battery backup: BC750 enclosure accommodates up to four 12VDC/12AH batteries for longer run-times and peace of mind
- Built-in charger and instantaneous transfer to standby batteries to ensure uninterrupted security and monitoring during AC loss
- Proactive system supervision with AC fail, low battery and battery presence monitoring to reduce maintenance visits and false alarms
- Compact, UL-compliant design with thermal/short-circuit protection and lifetime warranty for long-term, code-compliant deployments
| General Information | |
|---|---|
| Sector | Access Control |
| Brand Name | Altronix |
| Manufacturer | Altronix Corporation |
| Product Line | Maximal |
| Product Name | MaxFit E Series Single Power Supply Expandable Power Systems |
| Product Type | Power Supply |
| Product Model | MAXFIT5E |
| Product Series | Fit |
| Country of Origin | US |
| Manufacturer Part Number | MAXFIT5E |
| Technical Information | |
| Output Voltage | 12V DC |
| Certifications | |
| NDAA Compliant | Yes |
| Environmental Conditions | |
| Storage Temperature (T-T) | -4-158°F |
| Operating Temperature (T-T) | 32-120°F |
| Physical Characteristics | |
| Depth | 6.30" |
| Width | 16.50" |
| Height | 20.50" |
| Power Description | |
| Input Voltage | 120V AC |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
