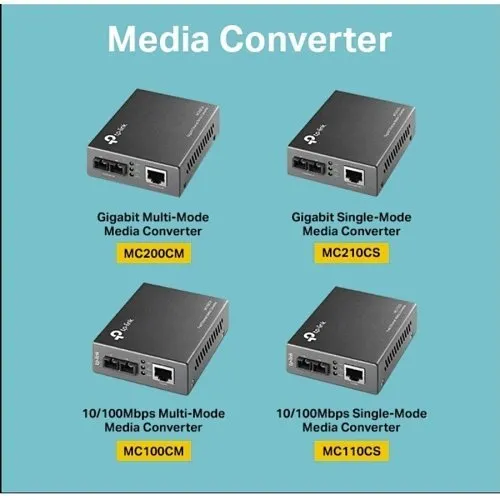

TP-Link MC210CS Gigabit Single-Mode Media Converter

SKU: MC210CS TP-Link
Tp-Link Mc210cs Gigabit Media Ethernet Converter 1000mbps Rj45 To 1000m Single-Mode Sc Fiber Up To...
Product images for TP-Link MC210CS Gigabit Single-Mode Media Converter. 2 image(s) available. Click on image to view full size.

Key Features

  • Converts fiber to copper seamlessly for reliable Gigabit connectivity, ideal for long‑reach surveillance and security camera links
  • Single‑mode SC fiber support (1310 nm) extends network runs up to 20 km (12.4 miles) for remote monitoring sites
  • Full‑duplex 1000 Mbps performance ensures low latency and consistent throughput for video and data-intensive applications
  • Auto MDI/MDIX and selectable FX/TX modes simplify installation and compatibility with existing network equipment
  • Compact, low‑power external design with clear LED status indicators for easy deployment and troubleshooting in rack or field installations

Quick Specifications

Product Model
MC210CS
Brand Name
TP-Link
Product Name
MC210CS Gigabit Ethernet Media Converter
Product Type
Transceiver/Media Converter
View Full Technical Specifications

Explore the details

Product information

MC210CS

Overview

Extend and stabilize your critical network links with the TP-Link MC210CS Gigabit media converter — purpose-built for security, surveillance and remote monitoring applications. This compact media converter converts 1000BASE-FX single‑mode fiber (SC connector, 1310 nm) to 1000BASE-T copper Ethernet, delivering full‑duplex 1 Gbps performance to keep high‑definition video streams and monitoring data flowing without interruption. With support for long‑reach fiber links up to 20 km (12.4 miles) and auto MDI/MDIX for plug‑and‑play compatibility, the MC210CS simplifies integration into CCTV, access control, and enterprise network backbones. Low power consumption and easy-to-read LED indicators reduce operational overhead, while the external power adapter and compact form factor make installation flexible in both equipment rooms and edge locations. Backed by TP-Link’s reliability and a 2‑year limited warranty, this media converter offers a cost‑effective way to bridge fiber and copper networks for demanding security and IT deployments. Add the MC210CS to your infrastructure to secure dependable fiber-to-Ethernet links for surveillance, monitoring, and network expansion.

Features

  • Converts fiber to copper seamlessly for reliable Gigabit connectivity, ideal for long‑reach surveillance and security camera links
  • Single‑mode SC fiber support (1310 nm) extends network runs up to 20 km (12.4 miles) for remote monitoring sites
  • Full‑duplex 1000 Mbps performance ensures low latency and consistent throughput for video and data-intensive applications
  • Auto MDI/MDIX and selectable FX/TX modes simplify installation and compatibility with existing network equipment
  • Compact, low‑power external design with clear LED status indicators for easy deployment and troubleshooting in rack or field installations
25 of 25 specifications
Technical specifications for TP-Link MC210CS Gigabit Single-Mode Media Converter
General Information
Brand Name TP-Link
Manufacturer TP-LINK Technologies Co., Ltd
Product Name MC210CS Gigabit Ethernet Media Converter
Product Type Transceiver/Media Converter
Product Model MC210CS
Country of Origin CN
Manufacturer Part Number MC210CS
Technical Information
Fiber Optic Mode Single-mode
Maximum Distance 9.3mi
Power Consumption 1W
Media Type Supported Optical Fiber
Interfaces/Ports
Network (RJ-45) Yes
Number of Ports 2
Number of SC Ports 1
Number of Network (RJ-45) Ports 1
Media & Performance
Network Technology 1000Base-FX
Fiber Optic Wavelength 1310nm
Network & Communication
Ethernet Technology 1 Gbps (Gigabit Ethernet)
Physical Characteristics
Depth 2.9"
Width 3.7"
Height 1.1"
Form Factor External
Power Description
Power Source AC Power
Warranty
Limited Warranty 2-Year
Miscellaneous
Environmentally Friendly Yes

No matching specifications

Try a different term, such as a connector type or resolution.

Plan your purchase

Is this right for your project?

Confirm the model, required accessories and delivery needs before ordering.

SKU:
MC210CS
Manufacturer part:
MC210CS
How do I confirm compatibility?

Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.

Ask a product specialist
When will this item ship?

Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.

Shipping, freight and delivery details
What should I know about returns?

Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.

Read return eligibility and exclusions

TP-Link MC210CS Gigabit Single-Mode Media Converter

MC210CS

Price & options
