TP-Link TL-MC220L Gigabit Ethernet Media Converter
Image of 8
Key Features
- Seamless fiber-to-Ethernet conversion to extend Gigabit networks for CCTV, access control and remote monitoring

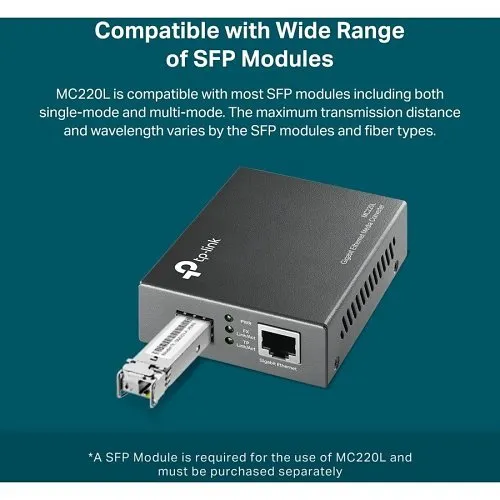

- Hot-swappable SFP slot supports single-mode and multimode modules for flexible distances up to 20 km (single-mode) or 550 m (multimode)

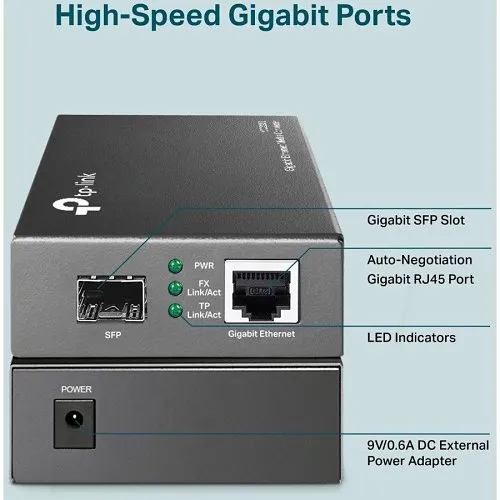

- Plug-and-play setup with auto-negotiation RJ45 port and auto-MDI/MDIX for fast deployment with existing switches
- Compact, low-power external design (1.7W) ideal for edge installations and constrained equipment racks
- Reliable 1000Base-T to 1000BASE-SX/LX/LH support to integrate fiber backbones into security and surveillance networks
Quick Specifications
- Product Model
- MC220L
- Brand Name
- TP-Link
- Product Name
- MC220L Gigabit Ethernet Media Converter
- Product Type
- Transceiver/Media Converter
Explore the details
Product information
MC220L
Overview

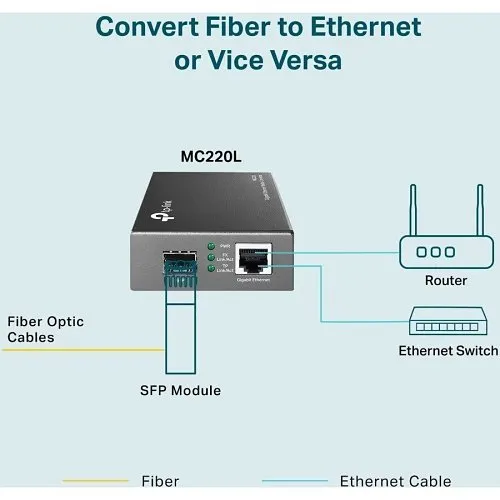

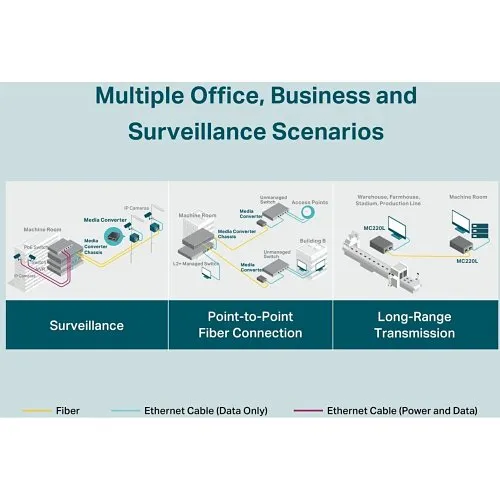

Deliver reliable fiber-to-Ethernet connectivity for security and surveillance deployments with the TP-Link TL-MC220L Gigabit Ethernet media converter. This media converter simplifies bridging 1000BASE-SX/LX/LH fiber links to 1000Base-T copper, allowing you to extend LANs for IP cameras, access control panels and remote monitoring systems without replacing existing network gear. The MC220L features a hot-swappable SFP slot compatible with single-mode and multimode modules, enabling distances up to 20 km on single-mode or 550 m on multimode—ideal for campus, parking lot or perimeter security links. With plug-and-play operation, auto-negotiation RJ45 and auto-MDI/MDIX, installation is fast and requires no configuration, reducing deployment time for IT and security teams. Its compact external form factor and low 1.7W power draw make it a practical choice for edge locations and distributed installations. Use the TL-MC220L to future-proof surveillance networks, extend PoE switch reach (with appropriate midspan), or connect remote monitoring nodes—order the TP-Link media converter to streamline your network and enhance uptime.
Features
- Seamless fiber-to-Ethernet conversion to extend Gigabit networks for CCTV, access control and remote monitoring
- Hot-swappable SFP slot supports single-mode and multimode modules for flexible distances up to 20 km (single-mode) or 550 m (multimode)
- Plug-and-play setup with auto-negotiation RJ45 port and auto-MDI/MDIX for fast deployment with existing switches
- Compact, low-power external design (1.7W) ideal for edge installations and constrained equipment racks
- Reliable 1000Base-T to 1000BASE-SX/LX/LH support to integrate fiber backbones into security and surveillance networks
| General Information | |
|---|---|
| Brand Name | TP-Link |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Name | MC220L Gigabit Ethernet Media Converter |
| Product Type | Transceiver/Media Converter |
| Product Model | MC220L |
| Manufacturer Part Number | MC220L |
| Technical Information | |
| Fiber Optic Mode | Multimode, Single-mode |
| Power Consumption | 1.70W |
| Media Type Supported | Optical Fiber |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Number of Total Expansion Slots | 1 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Network Technology | 1000Base-T |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |

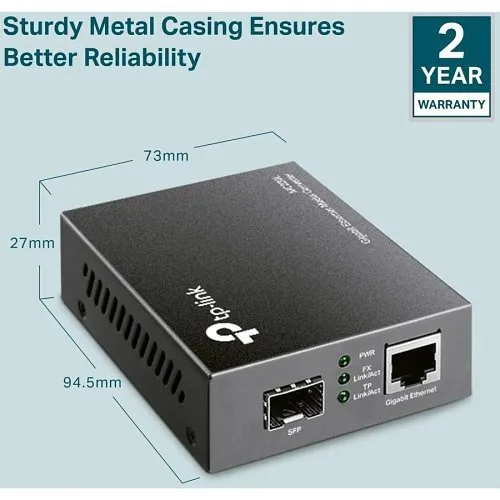

| Physical Characteristics | |
| Depth | 2.9" |
| Width | 3.7" |
| Height | 1.1" |
| Form Factor | External |
| Power Description | |
| Power Source | Power Adapter |
| Miscellaneous | |
| Country of Origin | VN |
| Environmentally Friendly | Yes |
