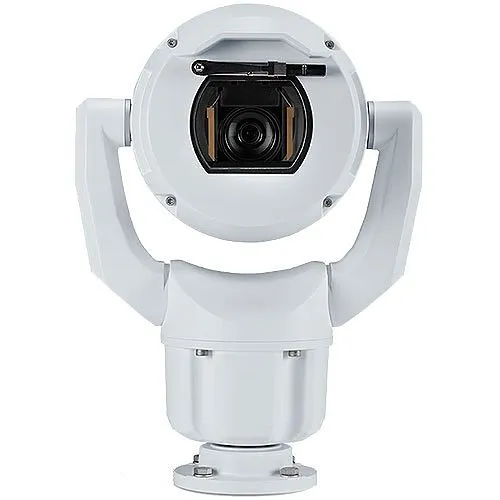

Bosch MIC-7504-Z12WR 8MP MIC IP Ultra PTZ Camera, 12xIP68 Enhanced, White
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 3
Key Features
- Mission-critical imaging: 8MP UHD (4K) resolution with 12x optical zoom and OIS delivers evidence-quality detail for identification and long-range monitoring.
- Built for extreme environments: IP68 / Type 6P and IK10-rated aluminum housing with ISO 12944 C5‑M corrosion protection reduces downtime and maintenance costs.
- Reliable operation under shock/vibration: closed-loop positioning and rugged design maintain accurate PTZ positioning in tunnels, bridges, and transport installations.
- Smarter edge surveillance: built-in Camera Trainer, intelligent tracking and object detection reduce false alarms and speed operator response.
- Always-on visibility: optional multispectrum illuminator and window defroster provide clear images in low light and freezing conditions for 24/7 perimeter and infrastructure monitoring.
Quick Specifications
- Product Model
- MIC-7504MP-Z12MPWR
- Brand Name
- Bosch
- Product Line
- MIC IP ultra
- Product Name
- MIC-7504 mP-Z12 mPWR PTZ8 mPMP12 mPx IP68 white
Frequently Bought Together
Bosch MIC-7504-Z12WR 8MP MIC IP Ultra PTZ Camera, 12xIP68 Enhanced, White
$16,478.47
4 items selected
Total: $18,238.63
Product Information Tabs
Overview
Built for mission-critical security and harsh outdoor deployments, the Bosch MIC-7504-Z12WR PTZ camera delivers reliable, evidence-grade surveillance where failure isn’t an option. This MIC IP ultra PTZ pairs 8MP UHD (3840 x 2160) imaging with a 12x optical zoom and Optical Image Stabilization so operators capture crisp detail at distance—even from moving platforms or vibrating mounts. The ruggedized metal body meets IP68/Type 6P and IK10 standards and includes ISO 12944 C5‑M corrosion protection and a closed-loop positioning system to hold accurate pans/tilts during shock and continuous vibration. Edge intelligence such as Camera Trainer, intelligent tracking and object detection reduces operator workload and improves incident detection for perimeter, transportation, and critical infrastructure monitoring. Additional field-ready features—defroster, optional multispectrum illuminator, and wide temperature range—ensure dependable 24/7 performance in tunnels, ports, power plants, and city surveillance projects. Specify the Bosch MIC-7504-Z12WR for robust PTZ security and monitoring—contact your sales rep or order today to harden your site surveillance.
Features
- Mission-critical imaging: 8MP UHD (4K) resolution with 12x optical zoom and OIS delivers evidence-quality detail for identification and long-range monitoring.
- Built for extreme environments: IP68 / Type 6P and IK10-rated aluminum housing with ISO 12944 C5‑M corrosion protection reduces downtime and maintenance costs.
- Reliable operation under shock/vibration: closed-loop positioning and rugged design maintain accurate PTZ positioning in tunnels, bridges, and transport installations.
- Smarter edge surveillance: built-in Camera Trainer, intelligent tracking and object detection reduce false alarms and speed operator response.
- Always-on visibility: optional multispectrum illuminator and window defroster provide clear images in low light and freezing conditions for 24/7 perimeter and infrastructure monitoring.
| General Information | |
|---|---|
| Brand Name | Bosch |
| Manufacturer | Bosch |
| Product Line | MIC IP ultra |
| Product Name | MIC-7504 mP-Z12 mPWR PTZ8 mPMP12 mPx IP68 white |
| Product Type | PTZ Camera |
| Product Model | MIC-7504MP-Z12MPWR |
| Product Series | 7100i |
| Packaged Quantity | 1 |
| Manufacturer Part Number | F.01U.353.586 |
| Technical Information | |
| Lens Type | Varifocal |
| Optical Zoom | 12x |
| Field of View | 6.1° to 64.6° (6.1° to 64.5°) |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/2.8 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 9.3mm |
| Effective Camera Resolution | 8MP |
| Camera | |
| Image Sensor Type | Exmor R CMOS |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP68 |
| Display & Graphics | |
| Maximum Video Resolution | 3840 x 2160 |
| Environmental Conditions | |
| Operating Humidity | 1 |
| Maximum Operating Temperature | 149°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Longest Shutter Speed | 1/1 Second |
| Shortest Shutter Speed | 1/100000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Lens Included | Yes |
| Minimum Aperture | f/4.5 |
| Maximum Focal Length | 111mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Depth | 8.3" |
| Width | 11.3" |
| Height | 15.8" |
| Weight | 306-88oz |
| Durability | Corrosion Resistant, Dust Resistant, Impact Resistant, Shock Resistant, Vibration Resistant, Waterproof, Weather Resistant |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 21-30V AC |
| Product Information | |
| Mount Type | Conduit Mount, Corner Mount, Pole Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | Full HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Miscellaneous | |
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Infrared Illuminator, Built-in IR LED, Cross Line Detection, Day/Night, Defog, Dynamic Noise Reduction, Enter/Exit Detector, Privacy Masking, Removable IR Cut-off Filter, Rugged Design, Wide Dynamic Range |
| Indoor/Outdoor | Outdoor |
| Package Contents | 1 base gasket, 1 MAC address labels, 1 MIC IP ultra7100 i camera, 1 Quick Installation Guide, 1 RJ45 coupler, 1 Safety instructions |
| Country of Origin | PT |
| Environmentally Friendly | Yes |
| Impact Protection Rating | IK10 |
| Environmental Certification | RoHS, WEEE |
